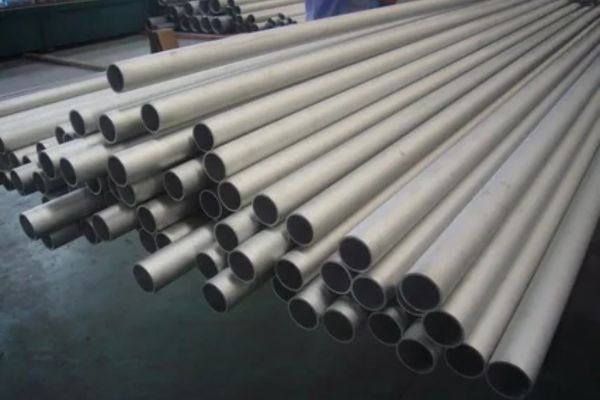

Filiz Steel, based in Istanbul, Turkey, has built a solid reputation as a reliable manufacturer and supplier of top-notch **Alloy Steel T92 Tubing**. With a strong focus on technical know-how and a commitment to meeting global quality standards, Filiz Steel produces T92 tubing that can handle the tough demands of high-temperature and high-pressure settings. These tubes find their place in power generation and industrial processing facilities. Thanks to their state-of-the-art production facilities, skilled engineers, and thorough testing processes, Filiz Steel ensures that their products are reliable, durable, and built to last. Their robust supply chain and dedication to customer satisfaction make Filiz Steel a go-to choice for Alloy Steel T92 Tubing around the globe.
Alloy Steel T92 Tubing is a high-strength, ferritic alloy that mainly consists of chromium (8.5–9.5%), molybdenum (0.3–0.6%), vanadium, niobium, nitrogen, and iron as its base. This special blend boosts its creep strength, oxidation resistance, and thermal stability. T92 tubing boasts a minimum tensile strength of about 620 MPa, a yield strength of 440 MPa, and impressive elongation properties. It’s specifically crafted for high-temperature applications, capable of withstanding environments up to 620°C. Plus, it offers excellent weldability and formability, making it perfect for creating components used in power plants, boilers, and heat exchangers.
| SA213 T92 Tube Standard | ASTM A213 T92, SA213 T92 (with IBR Test Certificate) |
|---|---|
| SA213 T92 Tube Specifications | ASTM A213 & ASTM A209 (T1 , Ta, T1b) BS/3059/90/PartII/620 & 622 DIN/17175/13CrMo44 DIN/17175/10CrMo910 DIN/17175/15Mo3 |
| Size | 6.35 mm OD to 101.6 mm OD |
| Sch. & Swg. | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg., 3.6 mm Thk |
| SA213 T92 Tube Thickness | 3-12mm |
| SA213 T92 Tube Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| SA213 T92 Tube Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |
| SA213 T92 Tube Type | Seamless / ERW / Welded / Fabricated |
| SA213 T92 Tube available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| SA213 T92 Tube Length | Standard Double & In Cut length also. |
| SA213 T92 Tube End | Plain End, Beveled End, Treaded |
| Specialized in | ASME SA213 T92 Boiler Tube, SA213 T92 Heater Tube, SA213 T92 Heat Exchanger Tube |
| SA213 gr T92 Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| SA213 grade T92 Tube Application | Seamless Ferritic Alloy Steel Tube for High-Temperature Service |
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % | V, % | N, % | Ni, % | Al, % | Nb, % | W, % | B, % |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.07-0.13 | 0.3-0.6 | 0.02 max | 0.01 max | 0.5 max | 8.5-9.5 | 0.3-0.6 | 0.15-0.25 | 0.03-0.07 | 0.4 max | 0.04 max | 0.04-0.09 | 1.5-2.0 | 0.001-0.006 |
| Grade | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
|---|---|---|---|---|
| ASTM A213 T92 Tubing | 585 min | 415 min | 20 min | 250 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
Jaxon Steel is a leading manufacturer and distributor of high-quality Alloy Steel T92 Tubing in Istanbul, Turkey. We offer top-grade steel materials and a broad range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to timely delivery and exceptional customer service, we source only the finest raw materials to ensure superior performance in industrial applications with demanding specifications. Contact us today for all your Alloy Steel T92 Tubing needs!
Alloy Steel T92 Tubing is extensively utilized in ultra-supercritical and supercritical boilers, especially in thermal power plants. It’s designed to excel in high-pressure and high-temperature steam service, providing outstanding performance in heat exchangers, economizers, reheaters, and superheaters. Thanks to its remarkable creep resistance and long service life, T92 tubing is the ideal choice for energy production facilities looking to boost efficiency and cut down on emissions. It’s also commonly found in refineries and chemical plants where it faces significant thermal and mechanical stress.
