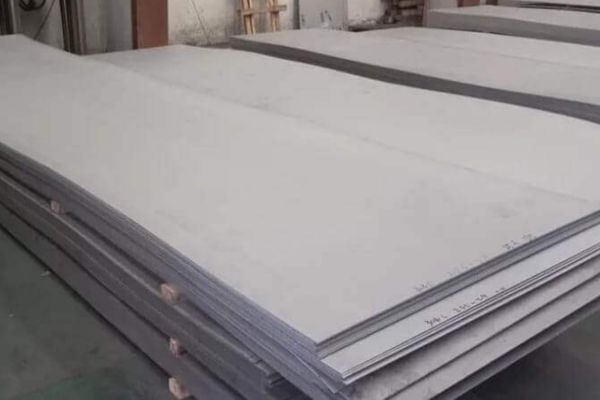

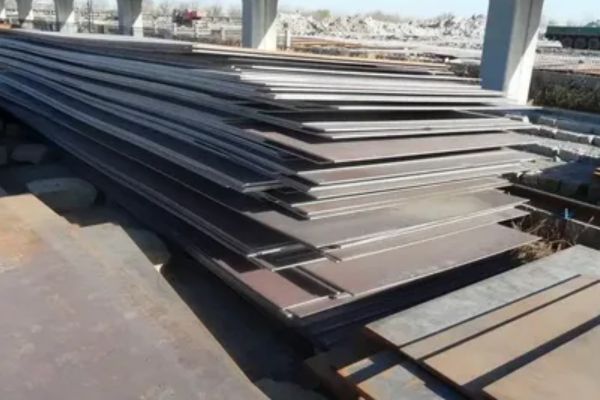

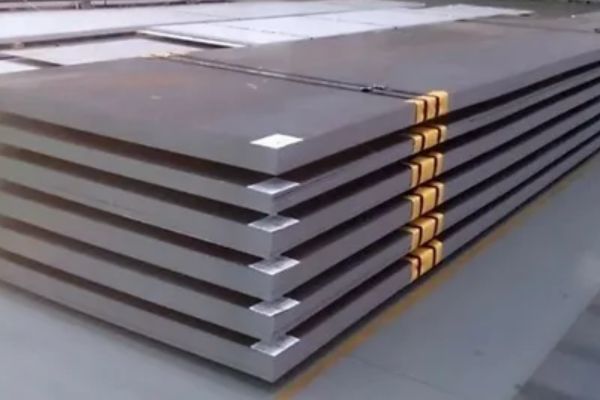

Filiz Steel, based in Istanbul, Turkey, stands out as a top manufacturer and supplier of Shipbuilding Steel Sheets and Plates, providing top-notch materials for maritime and offshore projects. These plates are celebrated for their strength, toughness, and resistance to corrosion, making them perfect for enduring the tough conditions of the sea and supporting heavy structural loads. Filiz Steel is committed to ensuring that its shipbuilding steel products adhere to international standards, guaranteeing reliable mechanical performance and precise dimensions. With state-of-the-art production facilities and rigorous quality control, the company supplies sheets and plates that are ideal for shipyards, offshore structures, and marine engineering projects around the globe.
The Shipbuilding Steel Sheets and Plates are crafted from high-strength low alloy steel, with a careful balance of carbon, manganese, and other alloying elements. These plates boast impressive tensile and yield strength, ductility, and toughness, even in frigid temperatures, making them well-suited for challenging maritime environments. They also offer excellent weldability, machinability, and resistance to impact and fatigue, ensuring dependable performance in structural and hull applications. The steel is often treated and tested to comply with international shipbuilding standards like ASTM A131, ABS, and DNV, ensuring durability and safety.
Weight | Up to 40 ton |
| Width | 1500-4000 |
| Thickness | 4-200 mm |
grades | EH36, DH36, AH36, DH32, E32, A40, B, EH32, E36, A36, F40, D40, E, AH40, E40, A, A32, DH40, D36, D, AH32, EH40, D32, and their equivalents |
| Length | Up to 20000 |
| Delivery condition | quenched and tempered, Hot-rolled, normalised rolled or normalised, thermomechanically rolled |
| Grade | C%≤ | Al % | Mn % | p % ≤ | S % ≤ | Si % | Nb % | V % |
|---|---|---|---|---|---|---|---|---|
| D32 A32 E32 | 0.18 | ≥0.015 | 0.70~1.60 0.90~1.60 0.90~1.60 | 0.04 | 0.04 | 0.10~0.50 | — | — |
| A | 0.22 | — | ≥ 2.5C | 0.04 | 0.40 | 0.10~0.35 | — | — |
| B | 0.21 | — | 0.60~1.00 | 0.04 | 0.40 | 0.10~0.35 | — | — |
| E | 0.18 | ≥0.015 | 0.70~1.20 | 0.04 | 0.04 | 0.10~0.35 | — | |
| D36 A36 E36 | 0.18 | ≥0.015 | 0.70~1.60 0.90~1.60 0.90~1.60 | 0.04 | 0.04 | 0.10~0.50 | 0.015~0.050 | 0.030~0.10 |
| D | 0.21 | ≥0.015 | 0.60~1.00 | 0.04 | 0.04 | 0.10~0.35 | — | — |
| Grade | Yieldpoint (Mpa) ≥ | Tensile Strength (Mpa) | Elongation （%）≥ | cold bend test | Thickness (mm) | V-impact test | |||
|---|---|---|---|---|---|---|---|---|---|
| b=5a 120° | b=2a 180° | Temperature （℃） | Average AKV A kv /J | ||||||
| lengthways | crosswise | ||||||||
| ≥ | |||||||||
| A | 235 | 400~490 | 22 | — | d=2a | ≤50 mm | — | — | — |
| B | d=3a | — | 0 | 27 | 20 | ||||
| D | -10 | ||||||||
| E | -40 | ||||||||
| A32 | 315 | 440~590 | 22 | d=3a | — | ≤50 mm | 0 | 31 | 22 |
| D32 | -20 | ||||||||
| E32 | -40 | ||||||||
| A36 | 355 | 490~620 | 21 | d=3a | — | ≤50 mm | 0 | 34 | 24 |
| D36 | -20 | ||||||||
| E36 | -40 | ||||||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Filiz Steel is one of the most prominent manufacturers and suppliers of superior quality Shipbuilding Steel Sheet and Plate in Istanbul, Turkey. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.
| Grade | Maximum Thickness (mm) | Standard | Minimum Thickness (mm) |
|---|---|---|---|
| EH36 | 150 mm | Lloyds Register | 5 mm |
| AH36 | 150 mm | Lloyds Register | 5 mm |
| Grade A | 150 mm | Lloyds Register | 5 mm |
| DH36 | 150 mm | Lloyds Register | 5 mm |
| theoretical weight | Thickness (mm) | Thickness (mm) | theoretical weight | ||
|---|---|---|---|---|---|
| Kg/m2 | Kg/ft2 | Kg/m2 | Kg/ ft2 | ||
| 47.10 | 4.376 Kg/ft2 | 6 | 25 | 196.25 | 18.962 Kg/ ft2 |
| 54.95 | 5.105 Kg/ft2 | 7 | 26 | 204.10 | 20.420 Kg/ ft2 |
| 86.35 | 8.751 Kg/ft2 | 11 | 32 | 251.20 | 25.525 Kg/ ft2 |
| 172.70 | 16.044 Kg/ft2 | 22 | 50 | 392.50 | 36.464 Kg/ ft2 |
| 62.80 | 5.834 Kg/ft2 | 8 | 28 | 219.80 | 21.879 Kg/ ft2 |
| 157.00 | 14.586 Kg/ft2 | 20 | 48 mm | 376.80 | 35.006 Kg/ ft2 |
| 78.50 | 7.293 Kg/ft2 | 10 | 30 mm | 235.50 | 23.337 Kg/ ft2 |
| 94.20 | 10.21 Kg/ft2 | 12 | 34 mm | 266.90 | 26.254 Kg/ ft2 |
| 125.60 | 11.669 Kg/ft2 | 16 | 40 mm | 314.00 | 29.172 Kg/ ft2 |
| 141.30 | 13.127 Kg/ft2 | 18 | 45 mm | 353.25 | 32.818 Kg/ ft2 |
| 109.90 | 10.939 Kg/ft2 | 14 | 35 mm | 274.75 | 27.713 Kg/ ft2 |
| 188.40 | 18.232 Kg/ft2 | 24 | |||
| Max. width | Thickness |
|---|---|
| Grade A | From to up to |
| 1370 | 1.70 to 1.80 |
| 1280 | 1.60 to 1.70 |
| 1440 | 1.80 to 1.90 |
| 1520 | 1.90 to 2.00 |
| 1170 | 1.49 to 1.60 |
| 2070 | 12.70 to 20.00 |
| 1590 | 2.00 to 2.20 |
| 1730 | 2.20 to 2.40 |
| 1880 | 2.60 to 2.80 |
| 1960 | 2.80 to 3.12 |
| 1800 | 2.40 to 2.60 |
| 2070 | 3.12 to 12.70 |
These Shipbuilding Steel Sheets and Plates find extensive use in the construction of commercial and naval vessels, offshore platforms, and marine structures. They’re essential in building hulls, decks, bulkheads, and superstructures where high load-bearing capacity and impact resistance are crucial. Additionally, these plates are used in the manufacturing of bridges, cranes, and heavy-duty maritime equipment that face corrosive environments. With their combination of durability, toughness, and long service life, shipbuilding steel sheets and plates are vital materials for creating safe, reliable, and cost-effective solutions in marine and offshore engineering.
