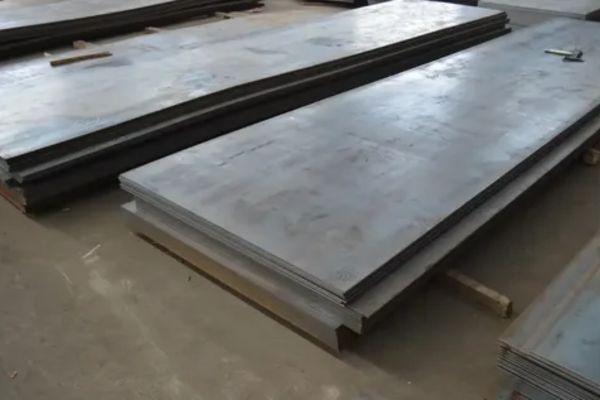

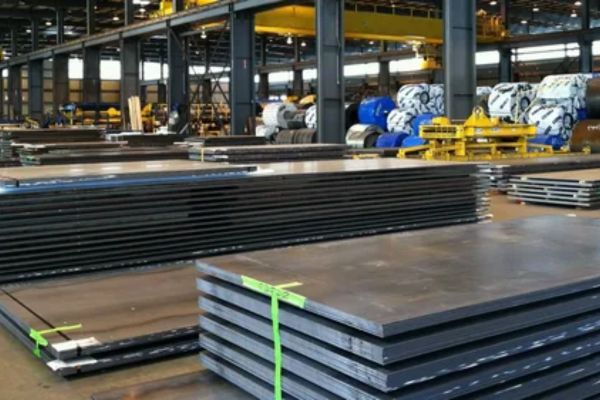

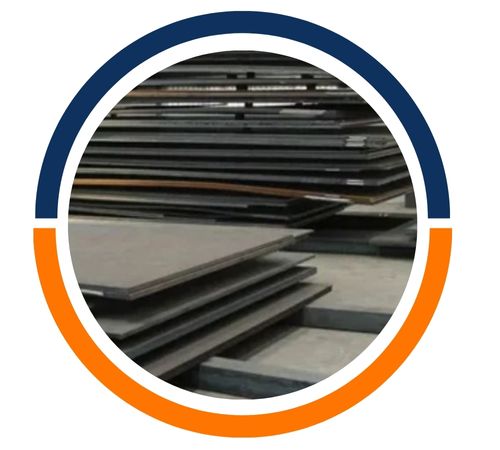

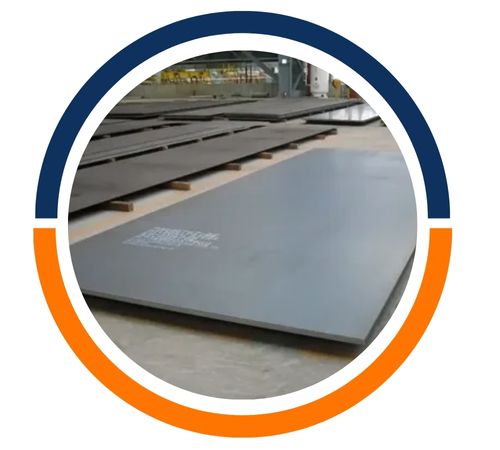

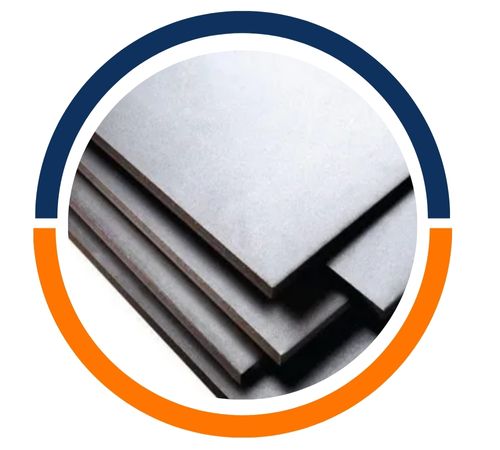

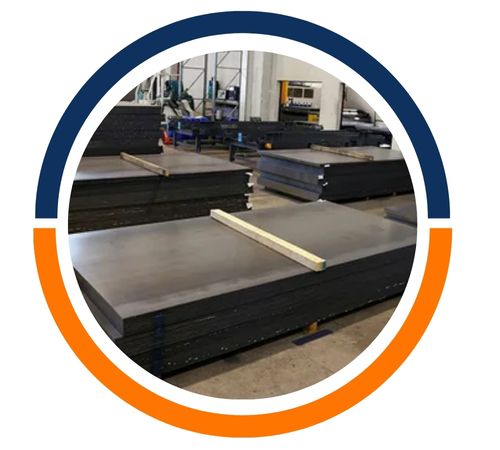

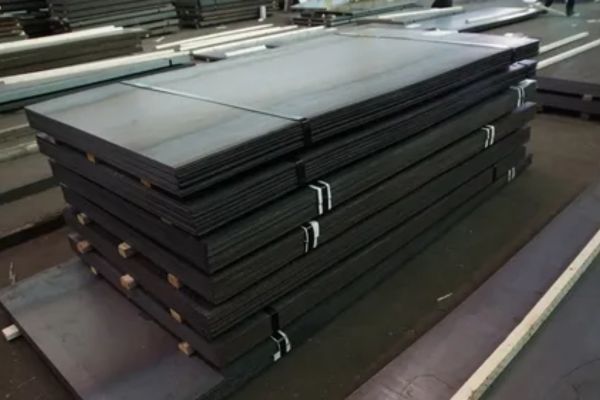

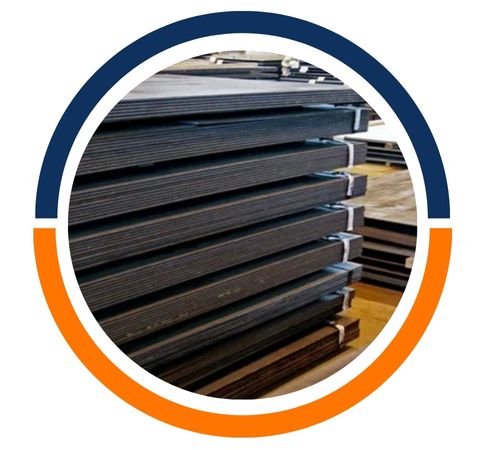

Filiz Steel, a reputable manufacturer and supplier located in Istanbul, Turkey, specializes in high-quality SA 516 GR.65N NACE HIC Plates, tailored for the rigorous demands of the oil, gas, and chemical sectors. These carbon steel plates are known for their exceptional toughness, weldability, and resistance to hydrogen-induced cracking (HIC), all while adhering to strict NACE standards for corrosion protection. With a commitment to quality, Filiz Steel guarantees precise dimensions, consistent mechanical properties, and impressive durability. The SA 516 GR.65N NACE HIC Plates find extensive use in pressure vessels, storage tanks, and pipelines, ensuring reliable performance, structural integrity, and safety in harsh, corrosive, and high-pressure industrial settings.
These plates are made from carbon steel, incorporating elements like carbon, manganese, silicon, phosphorus, and sulfur, along with micro-alloying components to boost toughness and strength. They showcase remarkable yield and tensile strength, outstanding impact resistance, and high toughness, even in low-temperature and corrosive environments. Designed to meet NACE and HIC standards, they offer excellent weldability, formability, and resistance to hydrogen-induced cracking. The blend of mechanical properties and corrosion resistance guarantees that SA 516 GR.65N NACE HIC Plates perform reliably in tough industrial conditions, maintaining their durability and structural integrity for long-term use in critical applications.
| Grade | ASME SA 516 GR.65N Boiler and Pressure Vessel Steel Plates |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | 52° C |
| Tempering | Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F. |
| Applications | Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service. |
| Process of Manufacturing | Hot-Rolled (HR) |
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.08/0.20 | 0.4 | 0.9/1.5 | 0.03 | 0.03 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Tensile strength (MPa) | Yield strength (ksi) | Yield strength (MPa) | Elongation in 200mm (min)(%) | Elongation in 50mm (min) (%) |
| 65-85 | 450-585 | 35 | 240 | 19 | 23 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-224-460A/B | EN10028 P295GH | A/SA516 – Grade 65 | DIN 17155 17 MN 4 |
Jaxon Steel is a trusted manufacturer and supplier of high-quality SA 516 GR.65N NACE HIC Plates in Istanbul, Turkey. We specialize in premium steel products, including Alloy Steel, Carbon Steel, Mild Steel and Galvanized Steel, with a strong focus on Carbon Steel Sheet and Plates. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings and Bars. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability and performance for critical industrial applications. Contact us today for all your SA 516 GR.65N NACE HIC Plates needs!
SA 516 GR.65N NACE HIC Plates are widely utilized in the oil and gas, petrochemical, and chemical processing industries, where high strength, toughness, and HIC resistance are crucial. They are often employed in the construction of pressure vessels, storage tanks, pipelines, and heat exchangers that are exposed to corrosive substances and high pressure. These plates are also ideal for offshore platforms, marine structures, and industrial equipment that operate under demanding conditions. With their excellent weldability, impact resistance, and long-term reliability, they are a trusted choice for various applications.
