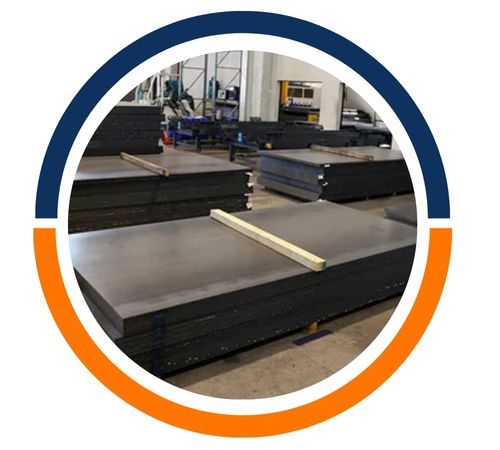

Filiz Steel, located in Istanbul, Turkey, stands out as a top manufacturer and supplier of SA 516 GR. 60/70N NACE plates, specifically designed for challenging corrosive and sour service environments. These plates adhere to NACE MR 0103 and MR 0175 standards, which means they offer outstanding resistance to hydrogen-induced cracking and sulfide stress corrosion. Tailored for pressure vessels and critical applications, the SA 516 GR. 60 and 70 grades, featuring normalization treatment (“N”), provide improved toughness and mechanical strength. Filiz Steel is committed to rigorous quality control, prompt delivery, and complete material traceability, making it a go-to supplier for the global oil, gas, and petrochemical industries.
SA 516 GR. 60/70N NACE plates are carbon steel pressure vessel plates that fulfill specific chemical and mechanical requirements for sour service. The typical chemical makeup includes Carbon (≤0.27%), Manganese (0.79–1.60%), Phosphorus (≤0.020–0.035%), Sulfur (≤0.010% for NACE compliance), and Silicon (0.13–0.45%). Grade 60 boasts a minimum yield strength of 220 MPa and a tensile strength ranging from 415 to 550 MPa, while Grade 70 offers a yield strength of 260 MPa and a tensile strength between 485 and 620 MPa. The normalization process enhances notch toughness and microstructure, ensuring reliable performance under high pressure, low temperature, and corrosive conditions.
| Grade | ASME SA 516 GR.60/70N Boiler Plates |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | 52° C |
| Tempering | Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F. |
| Applications | Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service. |
| Process of Manufacturing | Hot-Rolled (HR) |
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.20 | 0.4 | 0.95/1.50 | 0.025 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength | Yield strength | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 415-550 MPa | 250 MPa | 21 | 25 |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
| BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
Jaxon Steel is a trusted manufacturer and supplier of high-quality SA 516 GR.60/70N NACE Plates in Istanbul, Turkey. We specialize in premium steel products, including Alloy Steel, Carbon Steel, Mild Steel and Galvanized Steel, with a strong focus on Carbon Steel Sheet and Plates. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings and Bars. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability and performance for critical industrial applications. Contact us today for all your SA 516 GR.60/70N NACE Plates needs!
SA 516 GR. 60/70N NACE plates find extensive application in sour gas environments, including offshore oil rigs, refineries, chemical processing plants, and the petrochemical sector. These plates are perfect for constructing pressure vessels, heat exchangers, separators, and storage tanks that are exposed to hydrogen sulfide (H₂S) and other corrosive materials. Their robust resistance to hydrogen-induced cracking and sulfide stress corrosion makes them a dependable choice for both upstream and downstream operations.
Filiz Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Istanbul, Turkey.
