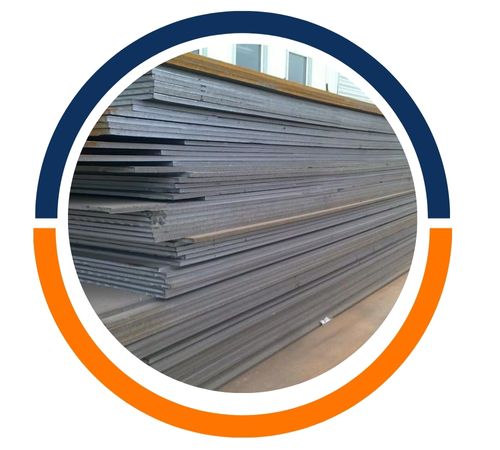

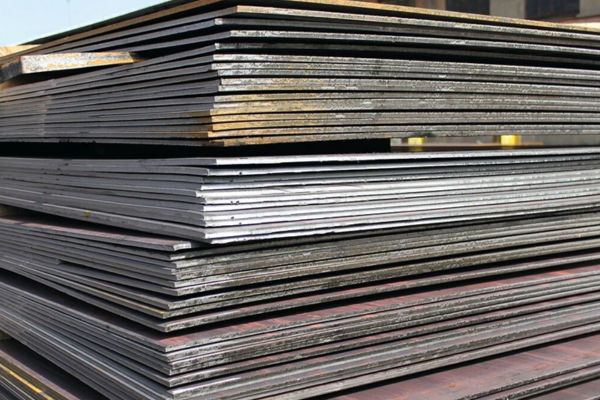

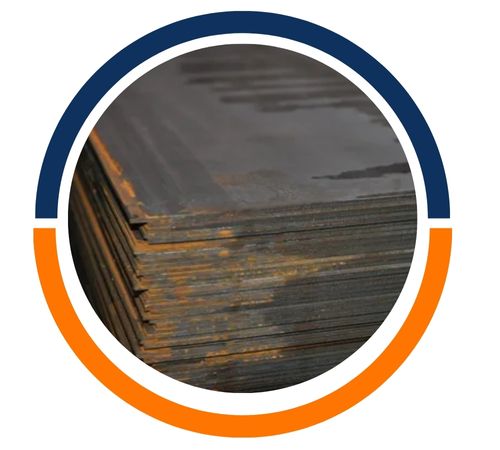

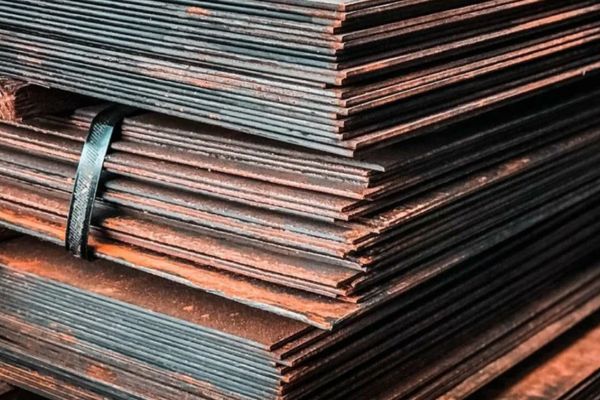

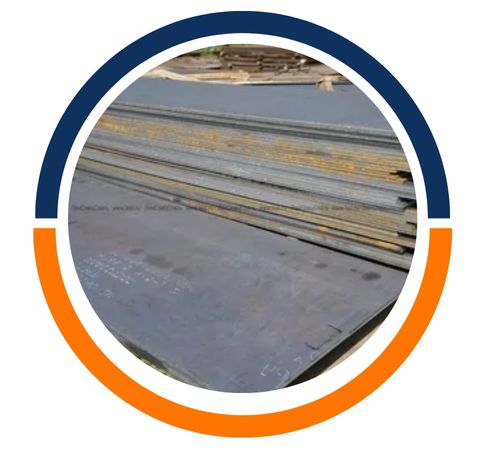

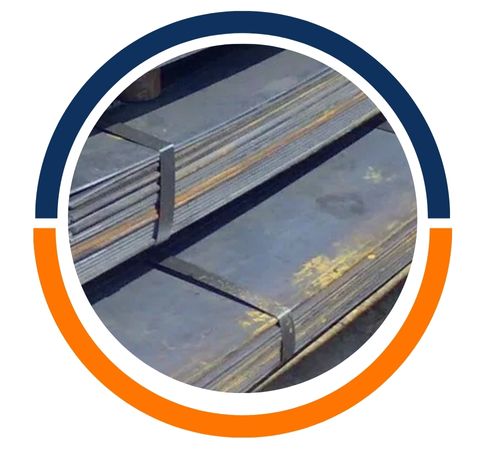

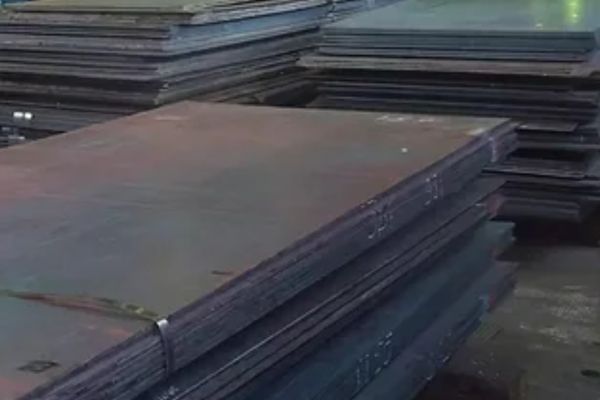

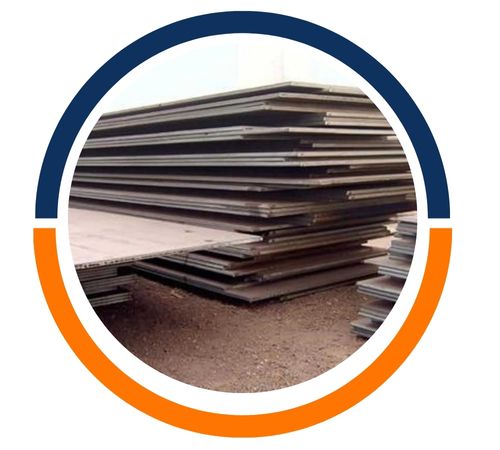

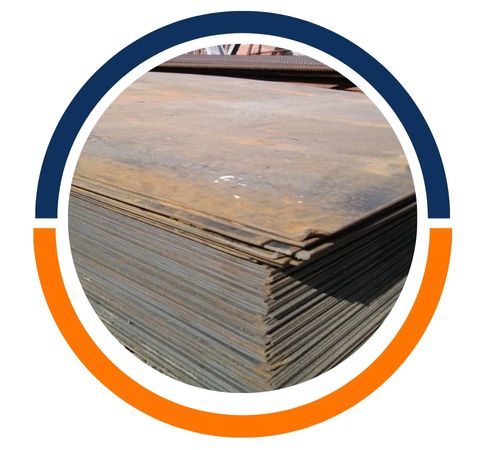

Filiz Steel, a well-respected supplier located in Istanbul, Turkey, offers robust **IS 2062 E350A plates** that are commonly utilized in structural, construction, and fabrication projects where enhanced strength is essential without sacrificing weldability or formability. According to the Indian Standard IS 2062, the “E350” grade signifies a minimum yield strength of 350 MPa, while the “A” indicates a basic grade that doesn’t have mandatory impact toughness requirements. These plates come in a hot-rolled state and are recognized for their excellent machinability, consistent quality, and versatility for general structural applications across various industries. Filiz Steel ensures that E350A plates are accompanied by test certifications and adhere to strict quality control measures, guaranteeing reliability for demanding projects.
Typically, IS 2062 E350A steel comprises Carbon (≤0.20%), Manganese (up to 1.60%), Silicon (0.15–0.45%), Phosphorus (≤0.040%), and Sulfur (≤0.040%). The plates boast a minimum yield strength of 350 MPa and tensile strength that ranges from 490–610 MPa, depending on their thickness. Thanks to its chemical makeup and hot-rolled production process, this steel offers good ductility, moderate hardness, and outstanding weldability, making it ideal for traditional fabrication methods like welding, bending, and cutting. While Grade A doesn’t necessitate impact testing, it remains structurally sound for general service environments.
| Item | Hot Rolled Medium and High Tensile Structural Steel – IS 2062 E350A |
|---|---|
| Thickness | 5mm-150mm |
| Width | 1000mm-4500mm |
| Length | 3000mm-18000mm |
| Grade | C | Mn | S | P | Si | Carbon Equivalent (CE), Max |
|---|---|---|---|---|---|---|
| IS 2062 E 350 A | 0.20 | 1.55 | 0.045 | 0.045 | 0.45 | 0.47 |
| Grade | Tensile strength N/mm2 | Yield strength N/mm2 | Elongation (%) | ||
|---|---|---|---|---|---|
| ＜20mm | 20mm-40mm | ＞40mm | |||
| IS 2062 E350 | 490 | 350 | 330 | 320 | 22 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
IS 2062 E350A plates find extensive application in the construction of bridges, buildings, industrial sheds, transmission towers, railways, shipbuilding, and other heavy engineering structures. These plates are perfect for medium to heavy load-bearing components where a balance between strength and formability is crucial. They are also employed in the manufacturing of truck frames, pressure vessels, and various other heavy-duty applications.
| Thickness | Length x Width | Mass per Sq m | Thickness | Length x Width | Mass per Sq m |
|---|---|---|---|---|---|
| mm | mm | Kg/m2 | mm | mm | Kg/m2 |
| 3 | 2500 x 1250 mm | 23.055 | 30.000 | 2500 x 1250 | 235.050 Kg/m2 |
| 3 | 3000 x 1500 mm | 23.055 | 30.000 | 3000 x 1500 | 235.050 Kg/m2 |
| 3 | 2000 x 1000 mm | 23.055 | 30.000 | 2000 x 1000 | 235.050 Kg/m2 |
| 3 | 3660 x 1830 mm | 23.055 | 30.000 | 4000 x 2000 | 235.050 Kg/m2 |
| 4 | 2000 x 1000 mm | 31.040 | 30.000 | 5000 x 2500 | 235.050 Kg/m2 |
| 3 | 4000 x 2000 mm | 23.055 | 30.000 | 5000 x 1250 | 235.050 Kg/m2 |
| 4 | 2500 x 1250 mm | 31.040 | 30.000 | 6000 x 2500 | 235.050 Kg/m2 |
| 4 | 3660 x 1830 mm | 31.040 | 32.000 | 2000 x 1000 | 251.020 Kg/m2 |
| 5 | 2000 x 1000 mm | 39.025 | 32.000 | 2500 x 1250 | 251.020 Kg/m2 |
| 5 | 4000 x 2000 mm | 39.025 | 35.000 | 4000 x 2000 | 274.075 Kg/m2 |
| 4 | 3000 x 1500 mm | 31.040 | 30.000 | 10000 x 2500 | 235.050 Kg/m2 |
| 5 | 2500 x 1250 mm | 39.025 | 32.000 | 3000 x 1500 | 251.020 Kg/m2 |
| 5 | 3660 x 1830 mm | 39.025 | 32.000 | 5000 x 2500 | 251.020 Kg/m2 |
| 5 | 4000 x 1750 mm | 39.025 | 35.000 | 2500 x 1250 | 274.075 Kg/m2 |
| 5 | 3000 x 1500 mm | 39.025 | 32.000 | 4000 x 2000 | 251.020 Kg/m2 |
| 5 | 6000 x 2000 mm | 39.025 | 40.000 | 2000 x 1000 | 314.000 Kg/m2 |
| 6 | 2500 x 1250 mm | 47.010 | 40.000 | 2500 x 1250 | 314.000 Kg/m2 |
| 6 | 3000 x 1500 mm | 47.010 | 40.000 | 3000 x 1500 | 314.000 Kg/m2 |
| 5 | 4000 x 1830 mm | 39.025 | 35.000 | 3000 x 1500 | 274.075 Kg/m2 |
| 6 | 3660 x 1830 mm | 47.010 | 40.000 | 4000 x 2000 | 314.000 Kg/m2 |
| 6 | 4000 x 1750 mm | 47.010 | 40.000 | 5000 x 2500 | 314.000 Kg/m2 |
| 6 | 3000 x 1525 mm | 47.010 | 40.000 | 4000 x 1750 | 314.000 Kg/m2 |
| 6 | 4000 x 1830 mm | 47.010 | 40.000 | 6000 x 2000 | 314.000 Kg/m2 |
| 6 | 6000 x 1500 mm | 47.010 | 45.000 | 2000 x 1000 | 353.025 Kg/m2 |
| 6 | 6000 x 1830 mm | 47.010 | 45.000 | 2500 x 1250 | 353.025 Kg/m2 |
| 6 | 4000 x 2000 mm | 47.010 | 40.000 | 7500 x 2500 | 314.000 Kg/m2 |
| 6 | 6000 x 2000 mm | 47.010 | 45.000 | 2500 x 1500 | 353.025 Kg/m2 |
| 6 | 8000 x 2000 | 47.010 | 45.000 | 4000 x 2000 | 353.025 |
| 6 | 8000 x 2500 | 47.010 | 45.000 | 5000 x 2500 | 353.025 |
| 6 | 6000 x 2500 mm | 47.010 | 45.000 | 3000 x 1500 | 353.025 Kg/m2 |
| 8 | 2000 x 1000 | 62.080 | 50.000 | 2000 x 1000 | 392.050 |
| 8 | 3000 x 1500 | 62.080 | 50.000 | 3000 x 1500 | 392.050 |
| 8 | 3660 x 1830 | 62.080 | 50.000 | 4000 x 2000 | 392.050 |
| 8 | 4000 x 2000 | 62.080 | 50.000 | 5000 x 2500 | 392.050 |
| 8 | 2500 x 1250 | 62.080 | 50.000 | 2500 x 1250 | 392.050 |
| 8 | 5000 x 2500 | 62.080 | 50.000 | 6000 x 2000 | 392.050 |
| 8 | 6000 x 2000 | 62.080 | 60.000 | 2000 x 1000 | 471.000 |
| 8 | 6000 x 1500 | 62.080 | 50.000 | 8000 x 2500 | 392.050 |
| 8 | 8000 x 2000 | 62.080 | 60.000 | 2500 x 1250 | 471.000 |
| 10 | 2500 x 1250 | 78.050 | 60.000 | 4000 x 2000 | 471.000 |
| 10 | 3000 x 1500 | 78.050 | 60.000 | 5000 x 2500 | 471.000 |
| 10 | 2000 x 1000 | 78.050 | 60.000 | 3000 x 1500 | 471.000 |
| 10 | 4000 x 1750 | 78.050 | 65.000 | 2000 x 1000 | 510.025 |
| 10 | 6000 x 1500 | 78.050 | 65.000 | 3000 x 1500 | 510.025 |
| 10 | 6000 x 2000 | 78.050 | 65.000 | 4000 x 2000 | 510.025 |
| 10 | 6000 x 2500 | 78.050 | 65.000 | 5000 x 2500 | 510.025 |
| 10 | 5000 x 2500 | 78.050 | 65.000 | 2500 x 1250 | 510.025 |
| 10 | 10000 x 2000 | 78.050 | 70.000 | 2000 x 1000 | 549.05 |
| 10 | 10000 x 2500 | 78.050 | 70.000 | 2500 x 1250 | 549.05 |
| 12 | 4000 x 2000 | 94.020 | 70.000 | 4000 x 2000 | 549.05 |
| 12 | 6000 x 2000 | 94.020 | 70.000 | 5000 x 2500 | 549.05 |
| 12 | 6000 x 2500 | 94.020 | 75.000 | 2000 x 1000 | 588.075 |
| 12 | 2000 x 1000 | 94.020 | 70.000 | 3000 x 1500 | 549.05 |
| 12.05 | 2000 x 1000 | 98.013 | 75.000 | 2500 x 1250 | 588.075 |
| 12.05 | 2500 x 1250 | 98.013 | 75.000 | 3000 x 1500 | 588.075 |
| 12.05 | 3050 x 1525 | 98.013 | 75.000 | 5000 x 2500 | 588.075 |
| 12.05 | 4000 x 1750 | 98.013 | 80.000 | 2000 x 1000 | 628.000 |
| 12.05 | 4000 x 2000 | 98.013 | 80.000 | 2500 x 1250 | 628.000 |
| 12.05 | 5000 x 2500 | 98.013 | 80.000 | 3000 x 1500 | 628.000 |
| 12.05 | 6000 x 1500 | 98.013 | 80.000 | 4000 x 2000 | 628.000 |
| 12.05 | 6000 x 2000 | 98.013 | 90.000 | 2000 x 1000 | 706.05 |
| 12.05 | 3000 x 1500 | 98.013 | 75.000 | 4000 x 2000 | 588.075 |
| 12.05 | 6000 x 2500 | 98.013 | 90.000 | 2500 x 1250 | 706.05 |
| 15 | 2500 x 1250 | 117.075 | 90.000 | 4000 x 2000 | 706.05 |
| 15 | 3000 x 1500 | 117.075 | 90.000 | 5000 x 2000 | 706.05 |
| 15 | 2000 x 1000 | 117.075 | 90.000 | 3000 x 1500 | 706.05 |
| 20 | 2500 x 1250 | 157.000 | 110.000 | 2000 x 1000 | 863.050 |
| 15 | 4000 x 1750 | 117.075 | 100.000 | 2000 x 1000 | 785.000 |
| 15 | 4000 x 2500 | 117.075 | 100.000 | 3000 x 1500 | 785.000 |
| 15 | 5000 x 2500 | 117.075 | 100.000 | 4000 x 2000 | 785.000 |
| 15 | 4000 x 2000 | 117.075 | 100.000 | 2500 x 1250 | 785.000 |
| 15 | 6000 x 2500 | 117.075 | 100.000 | 5000 x 2500 | 785.000 |
| 20 | 3000 x 1500 | 157.000 | 110.000 | 2500 x 1250 | 863.050 |
| weight | Thickness |
|---|---|
| （kg/m²） | （mm） |
| 2.75 kg/m² | 0.35 mm |
| 1.96 kg/m² | 0.25 mm |
| 2.36 kg/m² | 0.3 mm |
| 1.57 kg/m² | 0.2 mm |
| 7.85 kg/m² | 1 mm |
| 3.53 kg/m² | 0.45 mm |
| 4.32 kg/m² | 0.55 mm |
| 3.14 kg/m² | 0.4 mm |
| 3.93 kg/m² | 0.5 mm |
| 4.71 kg/m² | 0.6 mm |
| 5.1 kg/m² | 0.65 mm |
| 8.64 kg/m² | 1.1 mm |
| 5.89 kg/m² | 0.75 mm |
| 5.5 kg/m² | 0.7 mm |
| 7.07 kg/m² | 0.9 mm |
| 6.28 kg/m² | 0.8 mm |
IS 2062 E350A plates are structural steel plates of high strength employed in heavy-duty applications, engineering, and construction. They are commonly used in shipbuilding, bridges, industrial structures, railway wagons, pressure vessels, and pressure vessels owing to their superior weldability and toughness. These plates are also extensively used to fabricate transmission towers, crane booms, and heavy equipment. Their yield strength of 350 MPa and exceptional durability provide them with ideal load-carrying capabilities in ensuring reliability, safety, and endurance in aggressive applications.
