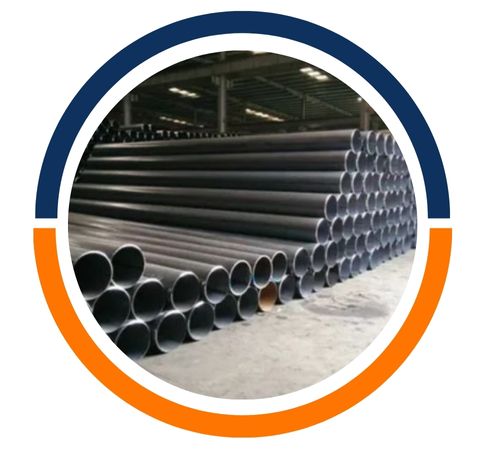

Filiz Steel, a prominent supplier located in Istanbul, Turkey, specializes in high-quality **EN 10305-2 and EN 10305-3 ERW tubing** designed for applications that demand precise dimensional tolerances, a superior surface finish, and dependable mechanical properties. These electric resistance welded (ERW) tubes are crafted according to European standards that govern steel tubes for precision uses. EN 10305-2 pertains to cold-drawn welded tubes, while EN 10305-3 focuses on welded tubes in various delivery conditions, including as-welded, normalized, or cold-formed. Filiz Steel provides these tubes in a range of diameters, wall thicknesses, and steel grades to fulfill specific customer needs for both structural and mechanical applications.
The EN 10305-2 tubing is produced from cold-drawn low carbon steel, ensuring tight dimensional tolerances and smooth internal and external surfaces, making it perfect for applications that require machining or hydraulic forming. In contrast, EN 10305-3 tubing is made from hot-rolled or cold-rolled strip and is generally used in less demanding scenarios. The mechanical properties can differ based on the steel grade, but typical minimum yield strengths range from 235 MPa to over 500 MPa, depending on the processing and material choices. These tubes come with various surface treatments, such as oiled, pickled, or phosphate-coated, to accommodate different end-use environments.
| Steel Name | Steel Number | C max, % max. | Si max, % max. | Mn max, % max. | P max, % max. | S max, % max. |
| E155 | 1.0033 | 0,11 | 0.35 | 0.70 | 0.025 | 0.025 |
| E195 | 1.0034 | 0,15 | 0.35 | 0.70 | 0.025 | 0.025 |
| E235 | 1.0308 | 0,17 | 0.35 | 1.20 | 0.025 | 0.025 |
| E275 | 1.0225 | 0,21 | 0.35 | 1.40 | 0.025 | 0.025 |
| E355 | 1.0580 | 0,22 | 0.55 | 1.60 | 0.025 | 0.025 |
| Steel Name | Â Â Steel Grade | Cold Drawn /Â Hard | Cold Drawn /Â Soft | Â Â Cold Drawn & stress relieved | Â Â Annealed | Â Â Normalised | |||||||
| Rm, Mpa (N/mm2) |
A, % |
Rm, Mpa (N/mm2) |
A, % |
Rm, Mpa (N/mm2) | ReH, MPa (N/mm2) |
A, % |
Rm, Mpa (N/mm2) | A, % | Rm, Mpa (N/mm2) | ReH, MPa (N/mm2) |
A, % |
||
|
E155 |
1.0033 |
400 |
6 |
350 |
10 |
350 |
245 |
18 |
260 |
28 |
270 – 410 |
155 |
28 |
|
E195 |
1.0034 |
420 |
6 |
370 |
10 |
370 |
260 |
18 |
290 |
28 | 300 – 440 |
195 |
28 |
|
E235 |
1.0308 |
490 |
6 |
440 |
10 |
440 |
325 |
14 |
315 |
25 | 340 – 480 |
235 |
25 |
|
E275 |
1.0225 |
560 |
5 |
510 |
8 |
510 |
375 |
12 |
390 |
21 |
410 – 550 |
275 |
21 |
|
E355 |
1.0580 |
640 |
4 |
590 |
6 |
590 |
435 |
10 |
450 |
22 | 490 – 630 |
355 |
22 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
EN 10305-2 / EN 10305-3 ERW tubes find extensive applications in the automotive sector, mechanical engineering, furniture production, hydraulic systems, construction, and precision machinery. They are commonly used in shock absorbers, steering columns, seat frames, conveyor rollers, structural frames, and general mechanical tubing where formability, strength, and surface quality are essential.
|
Hot rolled |
Outside Diameter, mm |
Tolerance, mm |
|
OD≤101.6 |
+0.4/-0.8 |
|
|
101.6＜OD≤177.8 |
+0.4/-1.2 |
|
|
Cold Drawn |
Outside Diameter, mm |
Tolerance, mm |
|
OD＜25.4 |
±0.10 |
|
|
25.4≤OD≤38.1 |
±0.15 |
|
|
38.1＜OD＜50.8 |
±0.20 |
|
|
50.8≤OD＜63.5 |
±0.25 |
|
|
63.5≤OD＜76.2 |
±0.30 |
|
|
76.2≤OD≤101.6 |
±0.38 |
|
|
101.6＜OD≤177.8 |
+0.38/-0.64 |
|
|
Hot rolled
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤101.6, WT≤2.4 |
+40/-0 |
|
|
OD≤101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD≤101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD≤101.6, WT>4.6 |
+28/-0 |
|
|
OD>101.6, 2.4＜WT≤3.8 |
+35/-0 |
|
|
OD>101.6, 3.8＜WT≤4.6 |
+33/-0 |
|
|
OD>101.6, WT>4.6 |
+28/-0 |
|
|
Cold Drawn
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤38.1 |
+20/-0 |
|
|
OD>38.1 |
+22/-0 |
EN10305-2 / EN10305-3 ERW tubing is very versatile and has widespread application in numerous various industries due to its strength, precision, and versatility. Common applications include automotive components such as chassis, suspension parts, and fuel system parts, where safety and reliability are essential. It is also implemented in engineering, mechanical systems, and structural systems, offering consistent performance in conditions of high pressure. Further, these tubes are used in gas and fluid transportation, hydraulic equipment, and even in the production of furniture and appliances. The EN10305-2 / EN10305-3 ERW tubing is made with very high dimensional precision and surface quality and thus is found appropriate for functional as well as visual use.
