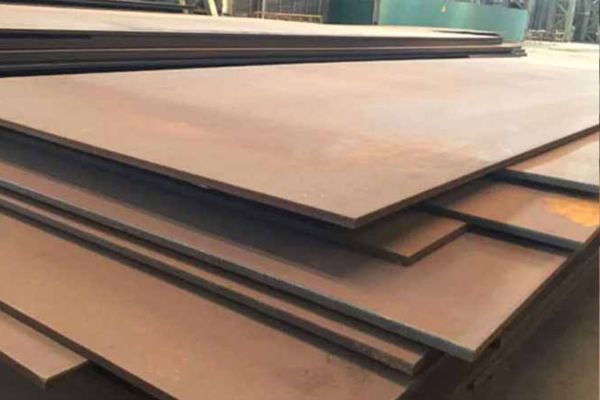

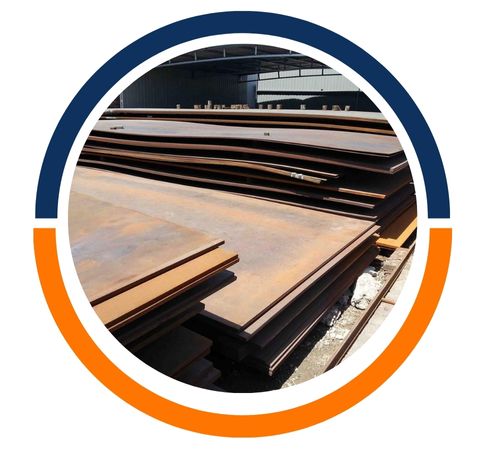

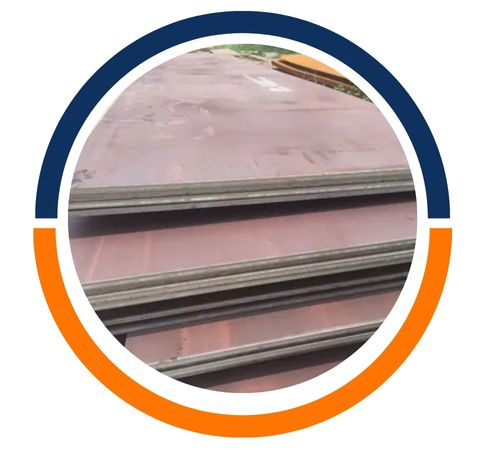

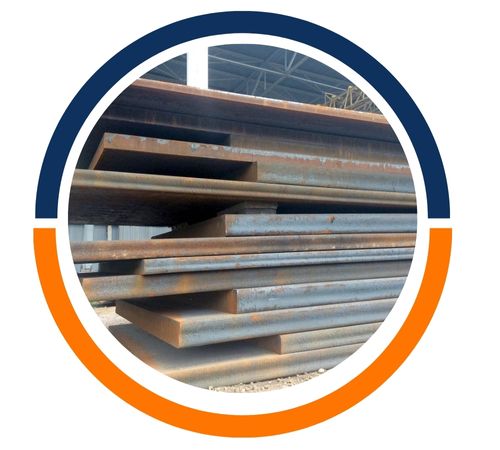

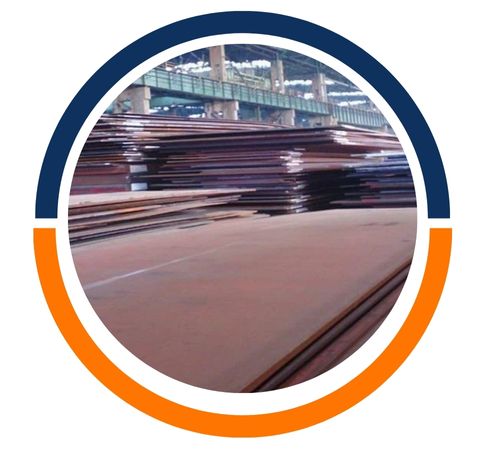

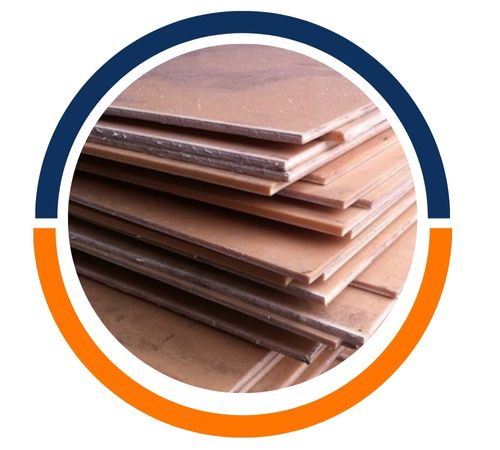

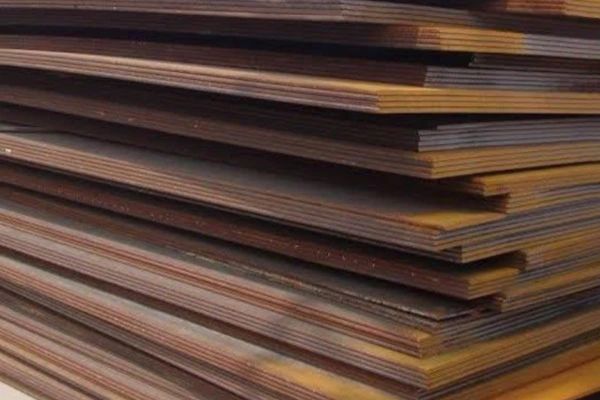

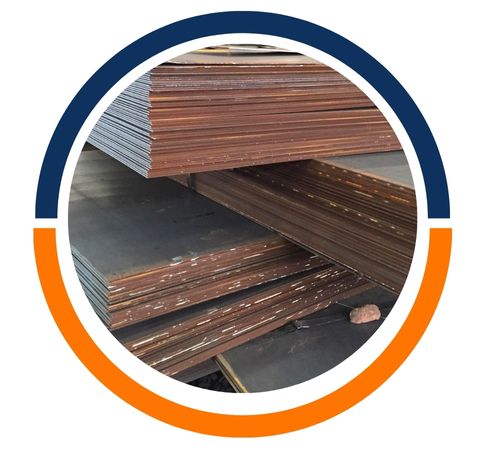

Filiz Steel, a top-notch manufacturer and supplier based in Istanbul, Turkey, specializes in high-quality DILLIDUR 500VAR Sheets and Plates, crafted for outstanding wear resistance and remarkable durability. These plates are built to withstand heavy-duty tasks where abrasion, impact, and intense stress are the norm. Thanks to advanced metallurgical techniques, DILLIDUR 500VAR plates boast impressive hardness while still being tough and easy to weld. Filiz Steel guarantees precise dimensions, a smooth surface finish, and consistent mechanical properties, making these plates the go-to choice for industries like mining, construction, cement, and material handling, where dependable, long-lasting wear-resistant steel is a must.
DILLIDUR 500VAR Sheets and Plates are made from alloy steels that include carbon, manganese, chromium, and other microalloying elements, achieving a Brinell hardness of around 500 HBW. They deliver excellent tensile strength, typically between 1100–1400 MPa, with high yield strength perfect for heavy-load situations. These plates excel in abrasion resistance, impact toughness, and fatigue strength, while still being easy to weld and form. The carefully controlled chemical composition and advanced heat treatment processes ensure durability, consistent hardness, and reliable performance in demanding, wear-intensive industrial settings.
Item: Dillidur 500VAR
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| C | Si | Mn | P | S | Mo | Ni | Cr | V | Nb | B |
| ≤ 0.30 | ≤ 0.50 | ≤ 1.60 | ≤ 0.025 | ≤ 0.010 | ≤ 0.50 | ≤ 1.00 | ≤ 1.50 | ≤ 0.08 | ≤ 0.05 | ≤ 0.005 |
| Mechanical | Mpa, min | Charpy V Impact Test | ||||
| DILLIDUR 500VAR | HARDNESS BHN | Tensile | Yield | % EL | longitudinal | Degree |
| 470/530 | 1600 | 1100 | 9% | J | -40 | |
| 45 | ||||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
DILLIDUR 500VAR Sheets and Plates find their place in various industries that need wear-resistant and heavy-duty steel solutions. You’ll often see them in mining machinery like crusher liners, dump truck beds, conveyor systems, and excavator buckets. In construction and material handling, they’re utilized in loaders, hoppers, and equipment for cement plants. These plates are also ideal for recycling machinery, power plants, and industrial equipment that come into contact with abrasive materials. With their impressive hardness, toughness, and durability, DILLIDUR 500VAR plates significantly reduce wear and tear, ensuring longevity in tough environments.
Filiz Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Istanbul, Turkey.
