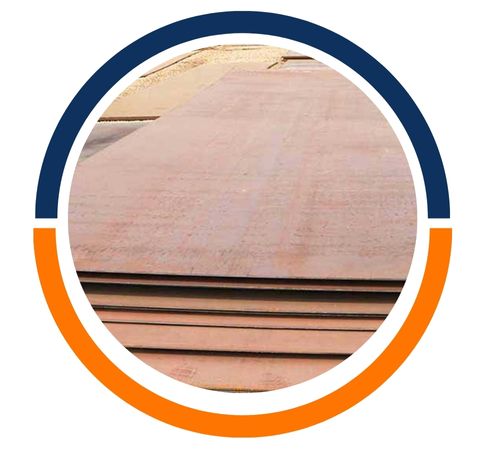

Filiz Steel, a well-respected manufacturer and supplier based in Istanbul, Turkey, specializes in top-notch Corten Steel Sheets and Plates. These products are celebrated for their remarkable strength, durability, and ability to withstand the elements. What sets them apart is a unique protective oxide layer that forms naturally over time, which not only prevents corrosion but also eliminates the need for painting. With outstanding mechanical properties and exceptional performance in tough outdoor conditions, Corten Steel plates find their place in architectural, structural, and industrial projects. Filiz Steel is committed to precision manufacturing and consistent quality, making their Corten Steel plates a reliable choice for industries worldwide and modern infrastructure.
Corten Steel Sheets and Plates are low-alloy steels primarily made of iron, with carefully controlled amounts of copper, chromium, nickel, and phosphorus added. This special blend allows for the formation of a protective rust layer that boosts corrosion resistance. These plates boast a tensile strength ranging from 480 to 620 MPa and a yield strength between 340 and 450 MPa, depending on their thickness and grade. They excel in weldability, machinability, and formability while maintaining high impact strength. Their weather-resistant properties make them perfect for outdoor structures, ensuring they last longer with lower maintenance costs compared to traditional carbon steels.
Materials : Corten Steel Sheet/Plates
Standard : ASTM A588 / ASME SA588
Width : 750mm TO 1500mm
Length : 2500mm to 12000mm
Thickness : 0.8mm TO 50mm
Type : Corten Steel / High-Strength Low-alloy Structural Steel
Process : Hot-Rolled (HR)
| Corten – A Plates | ASTM 588 GR A | ASTM 242 TYPE -1 | IRSM 41 -97 | |
|---|---|---|---|---|
| Carbon, Max | 0.12 | 0.19 | 0.15 | 0.10 |
| Manganese | 0.20-50 | 0.80-1.25 | 1.00 | 0.25-0.45 |
| Phosphorus | 0.07-0.15 | 0.04 | 0.15 | 0.07-0.11 |
| Sulphur, max | 0.030 | 0.05 | 0.05 | 0.030 |
| Silicon | 0.25-0.75 | 0.30-0.65 | 0.25-0.40 | 0.28-0.72 |
| Nickel, max | 0.65 | 0.40 | – | 0.20-0.49 |
| Chromium | 0.50-1.25 | 0.40-065 | – | 0.30-0.50 |
| Molybdenum, max | – | – | – | – |
| Copper | 0.25-0.55 | 0.25-0.40 | 0.20 min | 0.30-0.39 |
| Vanadium | – | 0.02-0.10 | – | 0.050 |
| Aluminimum | – | … | – | 0.030 |
| Tensile Strength | Min. Yield Point | Elongation | |
|---|---|---|---|
| COR-TEN A | [470 – 630 MPa] | [355 MPa] | 20 % min |
| ASTM 588 GR. A | [485 MPa] | [345 MPa] | 21% min |
| ASTM 242 TYPE -1 | [480 MPa] | [345 MPa] | 16% min |
| Material # | EN 10155 | SEW 087 | NFA 35-502 | UNI | BS 4360 | ASTM | JIS G3114 |
|---|---|---|---|---|---|---|---|
| 1.8961 | S235J2W | WTSt 37-3 | E 24 W 4 | Fe 360 DK 1 | – | – | – |
| 1.8945 | S355J0WP | E 36 WA 3 | Fe 510 C1K1 | WR 50 A | – | – | – |
| 1.8946 | S355J2WP | – | E 36 WA 4 | Fe 510 D1K1 | – | A 242 Type 1 | – |

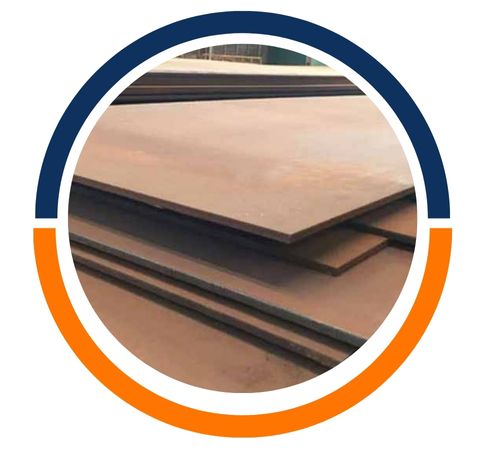

| 1.8959 | S355J0W | – | E 36 WB 3 | Fe 510 C2K1 | WR 50 B | A 588 – A 242 Gr. 1 | SMA 50 AW |
| 1.8963 | S355J2G1W | WTSt 52-3 | – | Fe 510 D2K1 | WR 50 C | A 588 Gr. A | to |
| 1.8965 | S355J2G2W | – | – | – | – | – | SMA 50 CP |
| 1.8966 | S355K2G1W | – | E 36 WB 4 | – | – | A 709 Gr. 50 W | – |
| 1.8967 | S355K2G2W | – | – | – | – | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Filiz Steel is one of the most prominent manufacturers and suppliers of superior quality Corten Steel Sheet and Plate in Istanbul, Turkey. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.
| Thickness | Width | Length |
|---|---|---|
| 1/2 inch | 48.00 inch | 120.00 inch |
| 1/4 inch | 60.00 inch | 120.00 inch |
| 1/4 inch | 48.00 inch | 120.00 inch |
| 3/8 inch | 48.00 inch | 120.00 inch |
| Thickness | Weight (lbs/ft) |
|---|---|
| 3/8″ | 15.315 |
| 1/4″ | 10.210 |
| 1/4″ | 10.210 |
| 1/2″ | 20.420 |
| FINISH | STOCK | SHEET SIZE MM | THICKNESS MM |
|---|---|---|---|
| Bright | Natural | 3000 x 1500, 2500 x 1250 | 0.8 – 3.0 |

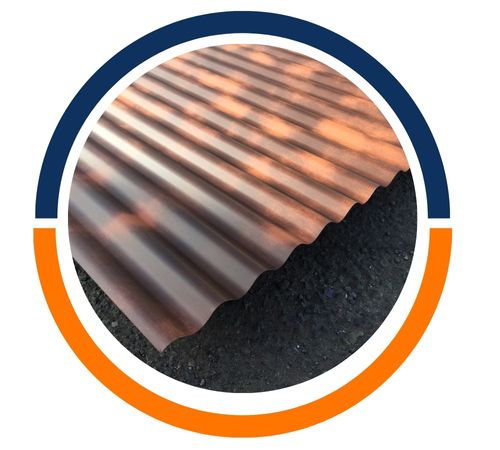

| Bright | Corrugated | 3000 x 1110 | 0.8 |
| Bright | Natural | 2500 x 1250 | 1 |
| Patina Rust (to order) | Rusted | 3000 x 1500, 2500 x 1250 | 0.8 – 3.0 |
| Patina Rust (to order) | Rusted | 2500 x 1250 | 1 |
| Rusted (to order) | Corrugated | 3000 x 1110 | 0.8 |
Corten Steel Sheets and Plates are widely utilized in construction, architecture, and industrial projects that demand both strength and weather resistance. Their unique rustic look makes them a favorite for architectural facades, bridges, sculptures, and outdoor art installations. In construction, they serve as roofing, cladding, and structural frameworks that are exposed to the elements. Industrial uses include shipping containers, railcars, chimneys, and outdoor equipment that need to endure environmental challenges.
