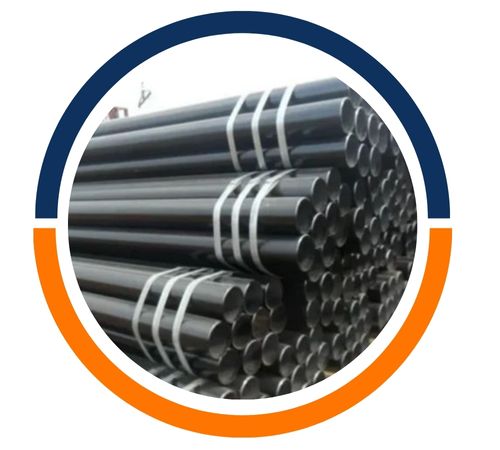

Jaxon Steel is a renowned manufacturer and supplier from Istanbul, Turkey, for superior quality Cold Drawn Seamless (CDS) tubing. Established over years with industry knowledge, we supply high-precision-engineered CDS tubing perfect for several high-end applications in automobile, hydraulic, and manufacturing industries. With strict adherence to optimal durability, uncompromised dimensional accuracy, and fault-free performance, we maintain our products of the finest order. With Jaxon Steel, we pride ourselves on offering customized solutions to address each client’s unique requirements, bringing products that perform in the most demanding conditions.
CDS tubing is composed of carbon steel and has the standard composition of 0.18-0.23% carbon, 0.60-0.90% manganese, and very little sulfur, phosphorus, and other alloying elements. It has a high strength, toughness, and resistance. Mechanical characteristics of CDS tubing comprise great tensile strength (range between 450 MPa to 600 MPa), yield strength (range from 250 MPa to 450 MPa), and decent elongation value (about 25-30%). It possesses such properties to suit it best in high-pressure heavy-duty usage with resistance against impact, wear, and fatigue.
| Condition | Nominal Yield Strength psi | Nominal Ultimate Strength psi | Nominal Elongation in 2% | Equivalent Rockwell Hardness | Equivalent Brinell Hardness |
| GRADE 1018Â c .15/.20 Mn .60/90 P .40 max S .050 max | |||||
| Hot-Rolled | Â 35,000 | 60,000 | 30 | B-68 | 116 |
| Normalized | Â 38,000 | 58,000 | 35 | B-66 | 114 |
| Soft-Annealed | Â 33,000 | 50,000 | 40 | B-57 | Â 97 |
| As-Drawn | Â 70,000 | 85,000 | 10 | B-87 | 170 |
| CD-Stress Relief Annealed | Â 60,000 | 80,000 | 15 | B-85 | 163 |
| GRADE 1020Â C. 18/.23 Mn .30/.60 P .040 max S .050 max | |||||
| Hot-Rolled | Â 38,000 | 60,000 | 30 | B-68 | 116 |
| Normalized | Â 40,000 | 58,000 | 35 | B-66 | 114 |
| Soft-Annealed | Â 33,000 | 53,000 | 40 | B-62 | 105 |
| As-Drawn | Â 65,000 | 80,000 | 10 | B-85 | 163 |
| CD-Stress Relief Annealed | Â 60,000 | 75,000 | 15 | B-81 | 149 |
| GRADE 1026Â C .22/.28 Mn .60/.90 P .030 max S .050 max | |||||
| Hot-Rolled | Â 47,000 | 70,000 | 28 | B-77 | 137 |
| Normalized | Â 50,000 | 67,000 | 33 | B-74 | 131 |
| Soft-Annealed | Â 36,000 | 60,000 | 35 | B-68 | 116 |
| As-Drawn | Â 72,000 | 87,000 | 10 | B-89 | 179 |
| CD-Stress Relief Annealed | Â 65,000 | 82,000 | 15 | B-86 | 167 |
| OUTSIDE AND INSIDE DIAMETER TOLERANCES FOR ROUND COLD-WORKED SEAMLESS TUBING PER ASTM A519 | ||||||||||
| Outside Diameter Size Range in | Thermal Treatment after Final Cold Work Producing Size | |||||||||
| Wall Thickness as Percent of OD | None, or not exceeding 1100°F. Nominal Temperature | Heated Above 1100°F. Nominal Temperature Without Accelerated Cooling | ||||||||
| OD, in | ID, in | OD, in | ID, in | |||||||
| Over | Under | Over | Under | Over | Under | Over | Under | |||
| Up to 0.499 | All | 0.004 | 0.000 | — | — | 0.005 | 0.002 | — | — | |
| 0.500-1.699 | All | 0.005 | 0.000 | 0.000 | 0.005 | 0.007 | 0.002 | 0.002 | 0.007 | |
| 1.700-2.099 | All | 0.006 | 0.000 | 0.000 | 0.006 | 0.006 | 0.005 | 0.005 | 0.006 | |
| 2.100-2.499 | All | 0.007 | 0.000 | 0.000 | 0.007 | 0.008 | 0.005 | 0.005 | 0.008 | |
| 2.500-2.899 | All | 0.008 | 0.000 | 0.000 | 0.008 | 0.009 | 0.005 | 0.005 | 0.009 | |
| 2.900-3.299 | All | 0.009 | 0.000 | 0.000 | 0.009 | 0.011 | 0.005 | 0.005 | 0.011 | |
| 3.300-3.699 | All | 0.010 | 0.000 | 0.000 | 0.010 | 0.013 | 0.005 | 0.005 | 0.013 | |
| 3.700-4.099 | All | 0.011 | 0.000 | 0.000 | 0.011 | 0.013 | 0.007 | 0.010 | 0.010 | |
| 4.100-4.499 | All | 0.012 | 0.000 | 0.000 | 0.012 | 0.014 | 0.007 | 0.011 | 0.011 | |
| 4.500-4.899 | All | 0.013 | 0.000 | 0.000 | 0.013 | 0.016 | 0.007 | 0.012 | 0.012 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Wall Thickness | ||||||||||||||||||||
| DIA | SCH.5S | SCH.5 | SCH 10S | SCH.10 | SCH.20S | SCH.30 | SCH.40S | SCH.40 | SCH 60 | |||||||||||
| (A) | (B) | Meter MM | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr |
| 6 | 1/8 | 10.3 | 1 | 0.23 | Â | Â | 1.2 | 0.27 | Â | Â | 1.5 | 0.33 | Â | Â | 1.73 | 0.37 | Â | Â | Â | Â |
| 8 | 1/4 | 13.7 | 1.2 | 0.37 | Â | Â | 1.65 | 0.49 | Â | Â | 2 | 0.58 | Â | Â | 2.24 | 0.64 | Â | Â | Â | Â |
| 10 | 3/8 | 17.2 | 1.2 | 0.47 | Â | Â | 1.65 | 0.63 | Â | Â | 2 | 0.74 | Â | Â | 2.31 | 0.87 | Â | Â | Â | Â |
| 15 | 1/2 | 21.3 | 1.65 | 0.01 | 1.65 | 0.81 | 2.11 | 1.02 | 2.11 | 1.02 | 2.5 | 1.15 | Â | Â | 2.77 | 1.29 | Â | Â | Â | Â |
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 1.65 | 1.03 | 2.11 | 1.3 | 2.11 | 1.3 | 2.5 | 1.49 | Â | Â | 2.87 | 1.71 | Â | Â | Â | Â |
| 25 | 1 | 33.4 | 1.65 | 1.31 | 1.65 | 1.31 | 2.77 | 2.13 | 2.77 | 2.13 | 3 | 2.24 | Â | Â | 3.38 | 2.54 | Â | Â | Â | Â |
| 32 | 11/4 | 24.2 | 1.65 | 1.67 | 1.65 | 1.67 | 2.77 | 2.73 | 2.77 | 2.73 | 3 | 2.9 | Â | Â | 3.56 | 3.44 | Â | Â | Â | Â |
| 40 | 11/2 | 48.3 | 1.65 | 1.93 | 1.65 | 1.93 | 2.77 | 3.16 | 2.77 | 3.16 | 3 | 3.35 | Â | Â | 3.68 | 4.11 | Â | Â | Â | Â |
| 50 | 2 | 60.3 | 1.65 | 1.93 | 1.65 | 2.42 | 2.77 | 3.99 | 2.77 | 3.99 | 3.5 | 4.9 | Â | Â | 3.91 | 5.52 | Â | Â | Â | Â |
| 65 | 21/2 | 73 | 2.11 | 3.75 | 2.11 | 3.75 | 3.05 | 5.34 | 3.05 | 5.34 | 3.5 | 6 | Â | Â | 5.16 | 8.77 | Â | Â | Â | Â |
| 80 | 3 | 88.9 | 2.11 | 4.59 | 2.11 | 4.59 | 3.05 | 6.56 | 3.05 | 6.56 | 4 | 8.37 | Â | Â | 5.49 | 11.47 | Â | Â | Â | Â |
| 90 | 31/2 | 101.6 | 2.11 | 5.25 | 2.11 | 5.25 | 3.05 | 7.53 | 3.05 | 7.53 | 4 | 9.62 | Â | Â | 5.74 | 13.78 | Â | Â | Â | Â |
| 100 | 4 | 114.3 | 2.11 | 5.93 | 2.11 | 5.93 | 3.05 | 8.5 | 3.05 | 8.5 | 4.5 | 12.18 | Â | Â | 6.02 | 6.32 | Â | Â | Â | Â |
| 125 | 5 | 141.3 | 2.77 | 9.61 | 2.77 | 9.61 | 3.4 | 11.74 | 3.43 | 11.74 | 5 | 16.8 | Â | Â | 6.55 | 2210 | Â | Â | Â | Â |
| 150 | 6 | 168.3 | 2.77 | 11.47 | 2.77 | 11.47 | 3.4 | 14.04 | 3.43 | 14.04 | 5.5 | 22.08 | Â | Â | 7.11 | 28.69 | Â | Â | Â | Â |
| 200 | 8 | 219.1 | 2.77 | 15 | 2.77 | 15 | 3.76 | 20.77 | 3.76 | 20.27 | 6.35 | 33.82 | 7.04 | 37.38 | 8.18 | 43.2 | Â | Â | 10.81 | 53.9 |
| 250 | 10 | 273.1 | 3.4 | 22.95 | 3.4 | 22.95 | 4.19 | 28.2 | 4.19 | 28.2 | 6.35 | 42.41 | 7.8 | 51.81 | 9.27 | 61.22 | Â | Â | 12.2 | 82.8 |
| 300 | 12 | 323.9 | 3.96 | 31.72 | 4.19 | 33.6 | 4.57 | 36.54 | 4.57 | 36.54 | 6.35 | 50.48 | 8.38 | 66.2 | 9.53 | 75.01 | 10.31 | 80.94 | 14.27 | 110.62 |
| 350 | 14 | 355.6 | 3.96 | 34.86 | Â | Â | 4.78 | 41.99 | 6.35 | 55.53 | 7.92 | 68.95 | 9.53 | 82.58 | 9.53 | 82.58 | 11.13 | 96 | 15.06 | 128.42 |
| 400 | 16 | 406.4 | 4.19 | 42.2 | Â | Â | 4.78 | 48.07 | 6.35 | 63.61 | 7.92 | 79.03 | 9.53 | 94.7 | 9.53 | 94.7 | 12.7 | 125.2 | 16.66 | 162.59 |
| 450 | 18 | 457.2 | 4.19 | 47.46 | Â | Â | 4.78 | 54.15 | 6.35 | 71.69 | 7.92 | 89.1 | 11.13 | 124.32 | 9.53 | 106.83 | 14.27 | 158.27 | 19.05 | 209 |
| 500 | 2C | 508 | 4.78 | 60.23 | Â | Â | 5.54 | 69.7 | 6.35 | 79.76 | 9.53 | 118.93 | 12.7 | 157.51 | 9.53 | 118.9 | 15.06 | 185.89 | 2062 | 251.65 |
| 550 | 22 | 558.8 | 4.78 | 65.95 | Â | Â | 5.54 | 76.75 | 6.35 | 87.84 | 9.53 | 131.07 | 12.7 | 173.66 | 9.53 | 131.07 | 15.88 | 216.04 | 22.23 | 298.55 |
| 600 | 24 | 609.6 | 5.54 | 83.8 | Â | Â | 6.35 | 95.92 | 6.35 | 95.92 | 9.53 | 143.2 | 14.27 | 212.72 | 9.53 | 143.2 | 17.45 | 258.74 | 24.59 | 360.21 |
| 650 | 26 | 660.4 | Â | Â | Â | Â | Â | Â | 7.92 | 129.4 | 12.7 | 205.97 | Â | Â | 9.53 | 155.32 | Â | Â | Â | Â |
| 700 | 28 | 711.2 | Â | Â | Â | Â | Â | Â | 7.92 | 139.47 | 12.7 | 222.13 | 15.88 | 276.48 | 9.53 | 167.44 | Â | Â | Â | Â |
| 750 | 3C | 762 | 6.35 | 120.15 | Â | Â | 7.92 | 149.55 | 7.92 | 149.55 | 12.7 | 238.28 | 15.88 | 296.68 | 9.53 | 179.56 | Â | Â | Â | Â |
| 800 | 32 | 812.8 | Â | Â | Â | Â | Â | Â | 7.92 | 159.62 | 12.7 | 254.44 | 15.88 | 316.88 | 9.53 | 191.69 | 17.48 | 348.11 | Â | Â |
| 850 | 34 | 863.6 | Â | Â | Â | Â | Â | Â | 7.92 | 169.64 | 12.7 | 270.5 | 15.88 | 336.96 | 9.53 | 203.74 | 17.48 | 370.22 | Â | Â |
| 900 | 36 | 914.4 | Â | Â | Â | Â | Â | Â | 7.92 | 179.77 | 12.7 | 286.75 | 15.88 | 357.28 | 9.53 | 215.93 | 19.05 | 427.09 | Â | |
CDS tubing has vast applications across high-strength, precision, and durability industries. Its most significant uses are in the automobile industry for chassis and suspension systems where it delivers strong yet light-weight solutions. It’s also a critical part in hydraulic systems where it works as high-pressure fluid conduits based on its excellent pressure-resisting capabilities. CDS tubing is used in structural elements, machinery, and equipment in manufacturing, where its precision and strength are paramount. Some of the uses include construction, transportation, and aerospace sectors, where its corrosion, wear, and fatigue resistance are well suited for severe applications and performance-sensitive systems.
