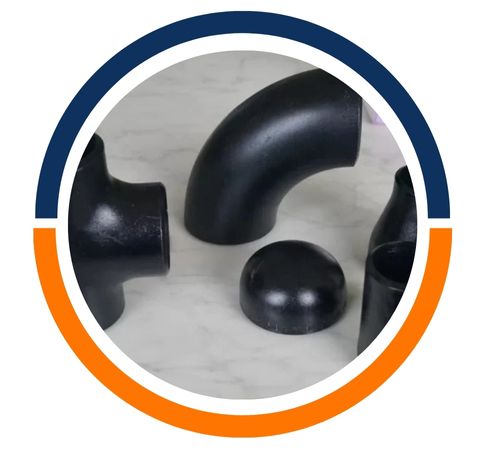

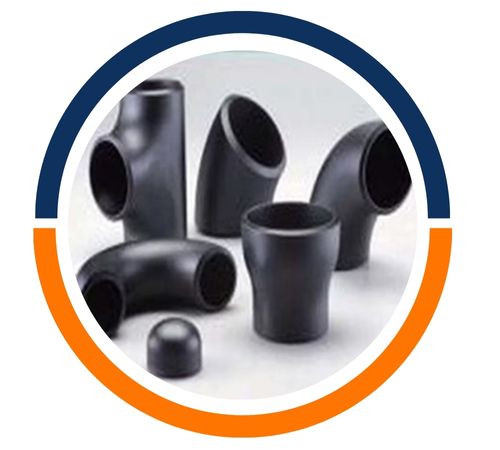

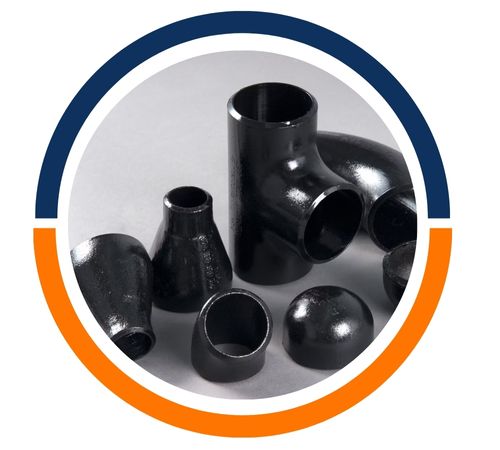

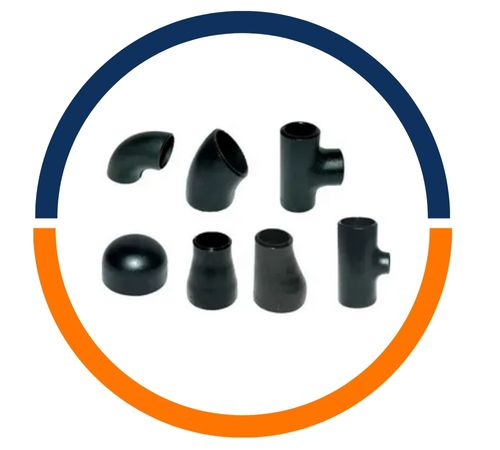

Filiz Steel, a reputable manufacturer and supplier based in Istanbul, Turkey, specializes in high-quality Carbon Steel WPHY 70 Pipe Fittings. These fittings are designed for strength and reliability, making them perfect for demanding piping systems. Crafted to meet international standards, they offer impressive toughness, resistance to corrosion, and precise dimensions. Filiz Steel guarantees that every WPHY 70 Pipe Fitting maintains consistent mechanical properties and boasts a long service life. These fittings are commonly found in the oil and gas, petrochemical, and power generation sectors, where they excel in high-pressure and high-temperature environments, ensuring secure connections and structural integrity in pipelines, pressure vessels, and industrial processes.
The Carbon Steel WPHY 70 Pipe Fittings are made from carbon steel, with small amounts of manganese, silicon, phosphorus, and sulfur, all optimized for exceptional strength and durability. They showcase outstanding tensile and yield strength, excellent impact resistance, and good weldability, which ensures they perform reliably even under extreme conditions. Their mechanical properties enable them to handle stress, vibration, and thermal expansion in tough industrial settings. With a blend of toughness, ductility, and corrosion resistance, these fittings are perfect for critical service pipelines, ensuring they remain operationally reliable over the long haul.
| Specification: | ASTM A860 WPHY 70 Fittings |
| Schedule: | Schedule 5 TO Schedule XXS. |
| Size: | Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48” |
| Type: | Butt Weld (BW), Seamless (SMLS) Welded |
| Thickness: | Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc. |
| Type Of Dimension: | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Standard | EN, ISO, DIN, JIS, NPT |

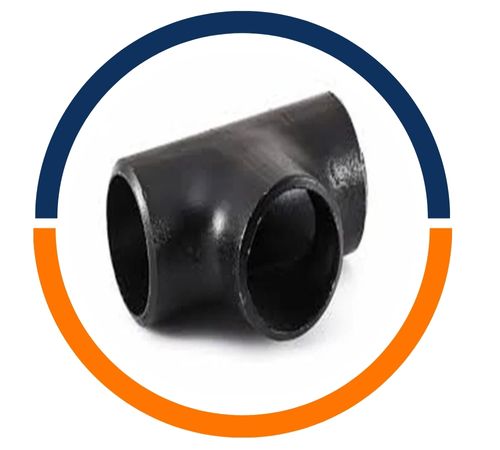

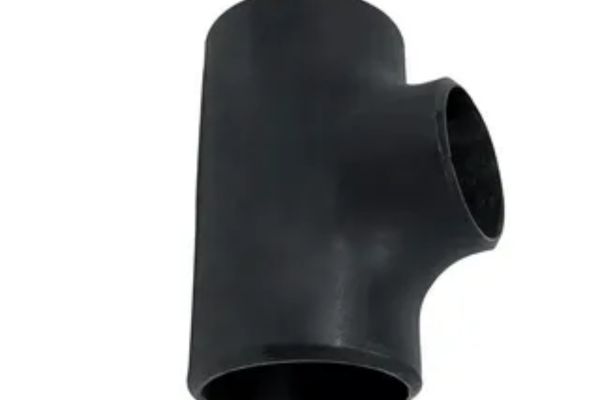

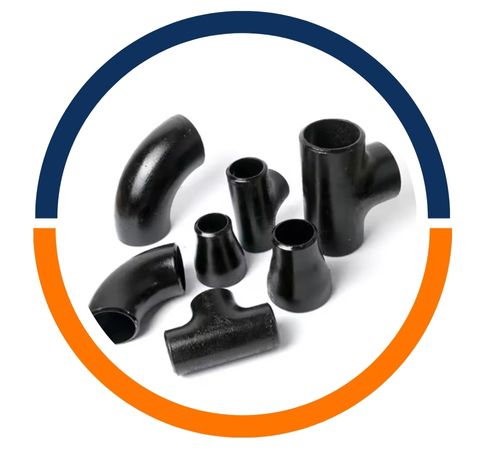

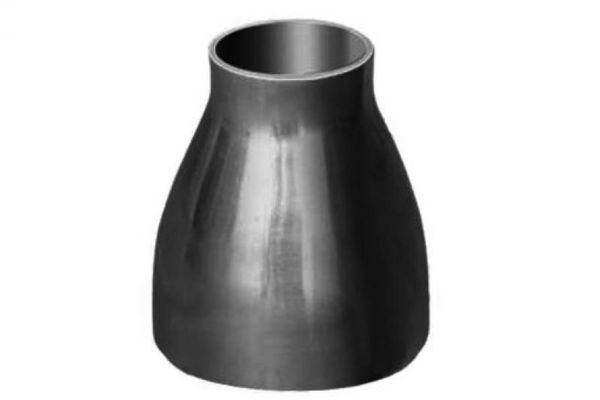

| Type | Elbow, Stub End, Bend, Tee, Reducer, Cap, Adapter, Wye, Cross, |
| Connection Type | Threaded/ Clamp End / End Bell / Weld/ Flange/ |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| C | Mn | P | S | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al | |
| ASTM A860 WPHY 70 Fittings | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.04 | 0.06 |
Tensile Strength (mpa) | Yield Strength (mpa) | |
ASTM A860 WPHY 70 Fittings | 485 | 570 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

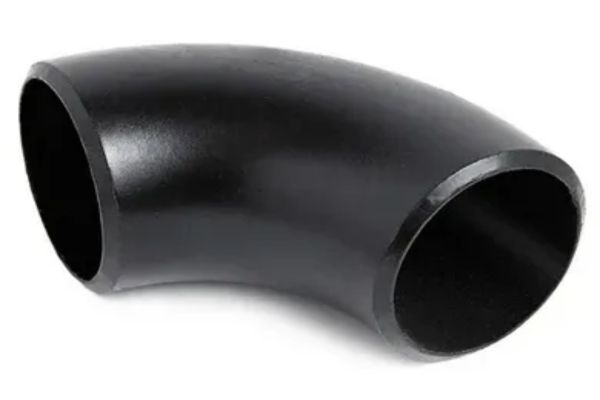

| NPS | O.D. | 90 Degree Elbow | 45 Degree Elbow | 180 Degree Return | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter) | (inch) | Center to Face (inch) | Center to Face (inch) | Center to Face (inch) | Radius (inch) | Center to Center (inch) | Back to face (inch) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Filiz Steel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 70 Pipe Fittings products in Istanbul, Turkey. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
You’ll find Carbon Steel WPHY 70 Pipe Fittings widely used in industries that demand durable, high-strength piping components. They’re a go-to choice for oil and gas pipelines, refineries, and petrochemical plants, where they transport fluids and gases under high pressure. Power generation facilities also rely on them for steam, water, and gas distribution systems. Moreover, they’re utilized in chemical processing, offshore platforms, and industrial piping networks where safety and performance are paramount. Thanks to their excellent mechanical properties and resistance to corrosion and wear, Carbon Steel WPHY 70 Pipe Fittings provide secure and dependable solutions for various applications.
