Filiz Steel, based in Istanbul, Turkey, stands out as a top manufacturer and supplier of Carbon Steel WPHY 65 Pipe Fittings. They provide high-quality fittings tailored for oil, gas, petrochemical, and industrial piping needs. These fittings are built to endure high-pressure and high-temperature environments, ensuring durability, reliability, and exceptional mechanical performance. Filiz Steel guarantees that their WPHY 65 pipe fittings comply with international standards like ASTM, ASME, and API, offering precise dimensions, consistent mechanical properties, and a fantastic surface finish. With state-of-the-art production facilities and rigorous quality control, the company delivers fittings that are perfect for critical pipeline systems around the globe.
The Carbon Steel WPHY 65 Pipe Fittings are crafted from high-strength low-alloy steel, with carefully managed levels of carbon, manganese, phosphorus, and sulfur to enhance their mechanical properties. They boast high tensile and yield strength, impressive impact resistance, and good ductility, making them ideal for high-pressure pipelines and challenging industrial environments. These fittings also excel in weldability and machinability, which simplifies installation and fabrication. Their strong microstructure guarantees long-lasting durability and dependable performance, even under demanding operating conditions.
| Specification: | ASTM A860 WPHY 65 Fittings |
| Type Of Dimension: | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Standard | EN, ISO, DIN, JIS, NPT |

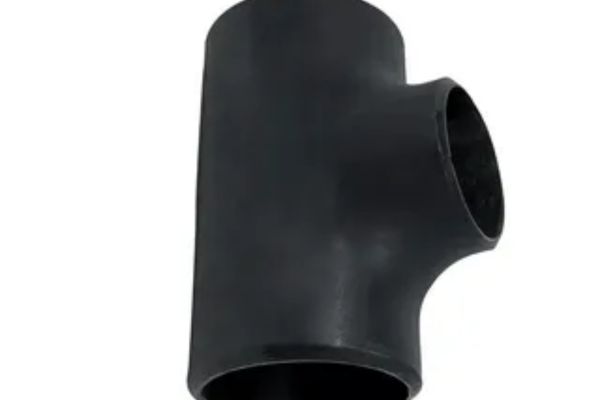

| Type | Elbow, Stub End, Bend, Tee, Reducer, Cap, Adapter, Wye, Cross, |
| Connection Type | Threaded/ Clamp End / End Bell / Weld/ Flange/ |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Schedule: | Schedule 5 TO Schedule XXS. |
| Size: | Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48” |
| Type: | Butt Weld (BW), Seamless (SMLS) Welded |
| Thickness: | Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc. |
| Grade | C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
| ASTM A860 WPHY 65 Fittings | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
| Element | Elongation | Tensile Strength | Yield Strength (0.2%Offset) |
| ASTM A860 WPHY 65 Fittings | 28 % | 515-690 | 415 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NPS | O.D. | 90 Degree Elbow | 45 Degree Elbow | 180 Degree Return | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter) | (inch) | Center to Face (inch) | Center to Face (inch) | Center to Face (inch) | Radius (inch) | Center to Center (inch) | Back to face (inch) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Filiz Steel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 65 Pipe Fittings products in Istanbul, Turkey. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
You’ll find Carbon Steel WPHY 65 Pipe Fittings commonly used in oil and gas pipelines, refineries, petrochemical facilities, power generation plants, and industrial fluid transport systems. They come in various configurations like elbows, tees, and reducers, efficiently connecting pipelines while handling mechanical stress and high pressure. Moreover, these fittings are essential in steam, water, and chemical pipelines where safety, reliability, and longevity are crucial. With a blend of strength, toughness, and corrosion resistance, WPHY 65 pipe fittings offer effective, durable, and cost-efficient solutions for today’s industrial piping networks.
