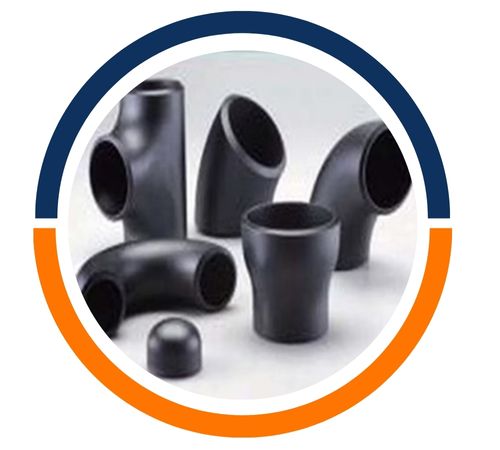

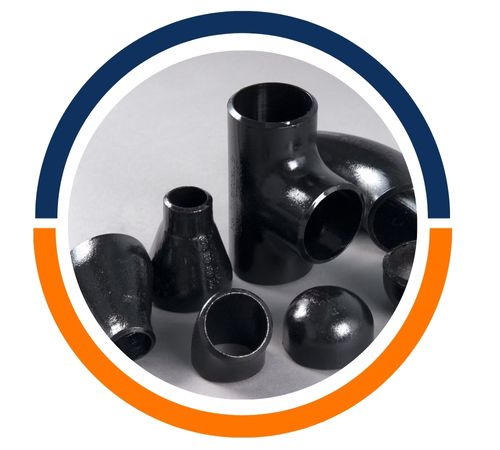

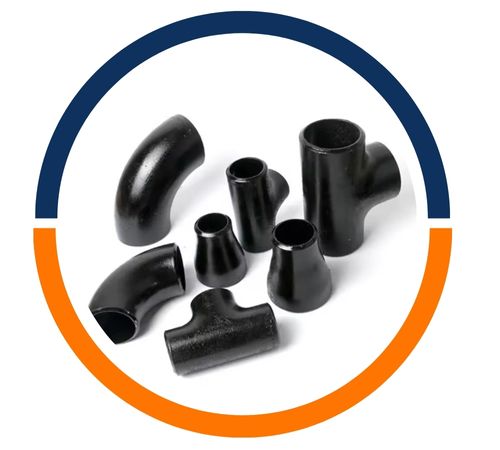

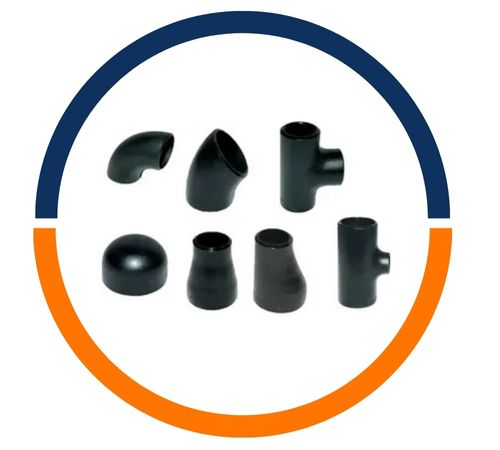

Filiz Steel, a reputable supplier located in Istanbul, Turkey, provides robust and high-strength **Carbon Steel WPHY 60 pipe fittings** that are built to handle the rigorous demands of high-pressure piping systems. WPHY 60, which stands for Wrought Pipe High-Yield, is a grade specified under ASTM A860, crafted specifically for butt-welded pipe fittings utilized in high-pressure applications across the oil, gas, petrochemical, and power generation sectors. These fittings are made from wrought carbon steel and undergo heat treatment to achieve impressive mechanical strength while ensuring good ductility and weldability. Filiz Steel offers a comprehensive selection of WPHY 60 fittings, including elbows, tees, reducers, caps, and crosses, available in both standard and custom sizes.
Typically, Carbon Steel WPHY 60 boasts a minimum yield strength of 60,000 psi (415 MPa) and a tensile strength exceeding 70,000 psi (485 MPa), making it well-suited for high-pressure and high-temperature service conditions. The fittings are generally produced through hot-forming or cold-forming methods, followed by processes like normalizing, quenching, or tempering to guarantee a consistent grain structure and toughness. The chemical composition is carefully controlled to facilitate efficient welding and ensure long-lasting durability in corrosive or high-stress environments.
| Specification: | ASTM A860 WPHY 60 Fittings |
| Schedule: | Schedule 5 TO Schedule XXS. |
| Size: | Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48” |
| Type: | Butt Weld (BW), Seamless (SMLS) Welded |
| Thickness: | Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc. |
| Type Of Dimension: | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Standard | EN, ISO, DIN, JIS, NPT |

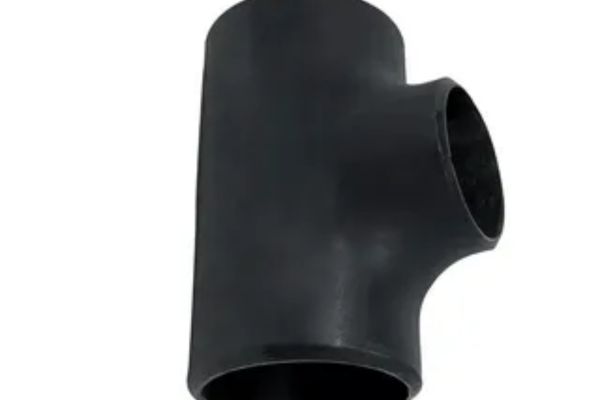

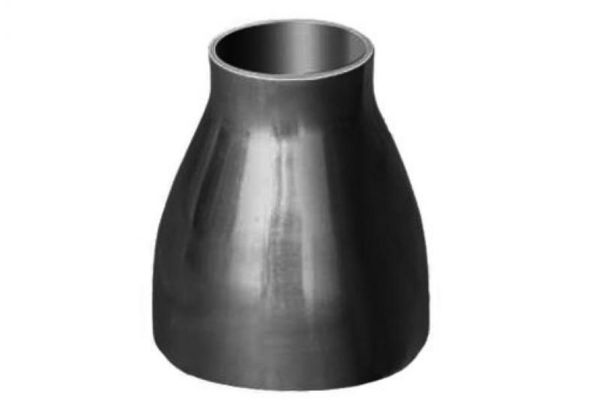

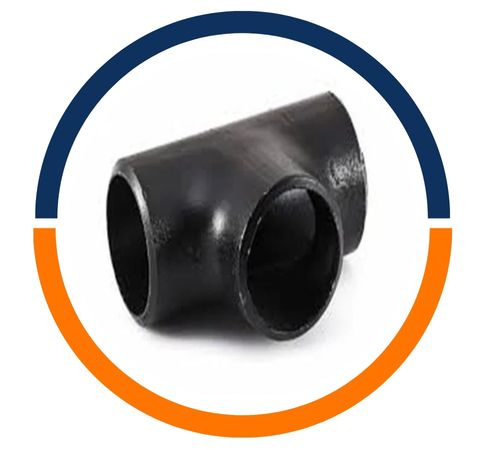

| Type | Elbow, Stub End, Bend, Tee, Reducer, Cap, Adapter, Wye, Cross, |
| Connection Type | Threaded/ Clamp End / End Bell / Weld/ Flange/ |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Grade | C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
| ASTM A860 WPHY 60 Fittings | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
| Element | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| ASTM A860 WPHY 60 Fittings | 415 | 515-690 | 28 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

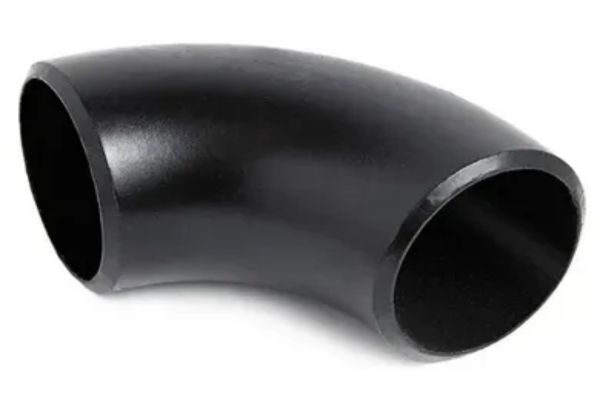

| NPS | O.D. | 90 Degree Elbow | 45 Degree Elbow | 180 Degree Return | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter) | (inch) | Center to Face (inch) | Center to Face (inch) | Center to Face (inch) | Radius (inch) | Center to Center (inch) | Back to face (inch) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
WPHY 60 pipe fittings find extensive use in critical pipeline systems, including natural gas transmission lines, offshore platforms, oil refineries, power plants, and chemical processing facilities. Their strength, reliability, and resistance to mechanical stress make them perfect for connecting pipes that transport fluids under high pressure and varying temperatures. These fittings adhere to industry standards such as ASME B16.9 and MSS-SP 75, ensuring they are compatible with a wide array of piping components. With their exceptional performance and trusted quality, they are a go-to choice for many industrial applications.
Carbon Steel WPHY 60 Pipe Fittings are used extensively in applications where there is a need for high strength and durability. They are most frequently used in oil and gas pipes, petrochemical units, and power generation systems because of their resistance to high pressure and temperature. Carbon Steel WPHY 60 Pipe Fittings are also used in water treatment facilities, chemical processing units, and structural work. Their fine mechanical characteristics and durability in wearing make them particularly suited to treating fluids, gases, and abrading substances in aggressive industrial processes.
