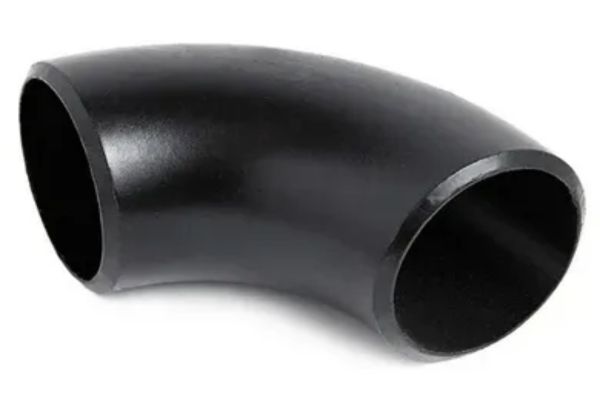

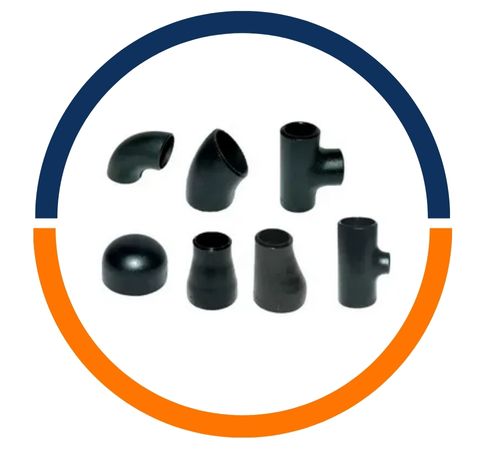

Filiz Steel, a prominent manufacturer and supplier located in Istanbul, Turkey, is all about crafting top-notch Carbon Steel WPHY 42 Pipe Fittings. These fittings are designed with strength, reliability, and performance in mind, making them perfect for demanding industries. Built to meet international standards, they boast impressive resistance to pressure, stress, and mechanical wear. Thanks to Filiz Steel’s engineering expertise and rigorous quality control, you can count on these fittings for precise dimensions, outstanding durability, and consistent performance. They’re widely utilized in sectors like oil and gas, petrochemical, power generation, and various industrial applications, providing reliable solutions for complex piping systems in critical situations around the globe.
The Carbon Steel WPHY 42 Pipe Fittings are made from a balanced mix of carbon, manganese, silicon, phosphorus, and sulfur, which enhances their strength and toughness. With a minimum yield strength of 42,000 psi, these fittings show remarkable ductility, hardness, and resistance to mechanical stress. They maintain excellent impact strength and durability, making them suitable for both high- and low-pressure applications. Plus, they offer great weldability, formability, and dimensional accuracy, ensuring they are dependable components in pipelines. Their well-balanced mechanical properties guarantee consistent performance even under varying pressure and temperature conditions, providing a long service life across demanding piping networks.
| Specifications | ASTM A860/ ASME SA860 |
|---|---|
| Grade | WPHY 42 |
| Dimension | ASME/ ANSI B16.9 | BS10 | ASME B16.28 | BS1560 | BS4504 | MSS-SP-43 |
| Thickness of Fittings | SCH 10, SCH20, SCH 30, STD SCH 40, SCH 60, XS, SCH80, SCH100, SCH 120, SCH 140, SCH160, XXS available with NACE MR 01-75 |
| Types | Seamless | Welded | Fabricated |
| Bending Radius | R= 1D, 8D, 3D, 2D, 6D, 5D, 10D |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Size Ranges | Seamless ButtWeld Fitting: From 1/2″ – 10″ Welded ButtWeld Fitting: From 1/2″ – 48″ |
| Process of Manufacturing | Push, Press, Cast, Forge. |
| Grade | P | Mn | S | Si | Ni | Cr | Mo | Cu | Ti | Cb | V | Al |
| WPHY42 | 1.00-1.45 | 0.20 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.10 | 0.05 | 0.04 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 515-690 | 415 | 28 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Filiz Steel is a top manufacturer and supplier of high-quality Carbon Steel A234 WPB Pipe Fittings products in Istanbul, Turkey. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
These fittings are a go-to choice in industries that need safe and efficient fluid handling. In the oil and gas sector, they’re used in transmission pipelines, refineries, and offshore platforms for transporting high-pressure fluids. Power generation plants incorporate them into steam and cooling systems, while petrochemical industries depend on them for processing and distribution lines. They also find applications in water treatment plants, shipbuilding, and structural piping systems. With their impressive strength, weldability, and durability, these fittings are truly reliable for a wide range of uses.
