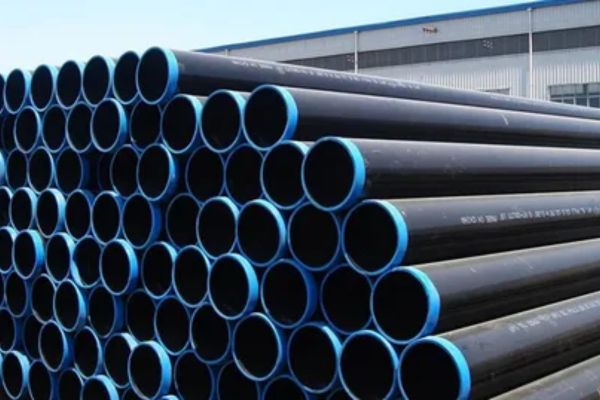

Filiz Steel, a reputable manufacturer and supplier located in Istanbul, Turkey, has built a solid reputation for delivering top-notch Carbon Steel JIS G3454 Pipes to industries around the globe. These pipes are crafted to meet the rigorous Japanese Industrial Standards (JIS), ensuring they provide outstanding strength, durability, and reliability even in the toughest applications. Filiz Steel takes pride in its precision manufacturing and strict quality control processes, which guarantee superior performance and a long lifespan. The Carbon Steel JIS G3454 Pipes are favored across various sectors due to their excellent mechanical properties, resistance to corrosion, and cost-effectiveness, making them a go-to choice for industrial, construction, and energy projects that demand robust and dependable piping systems.
These pipes are primarily made from carbon steel, with carefully controlled levels of carbon, manganese, phosphorus, and sulfur to boost their strength, toughness, and weldability. They boast impressive mechanical properties, including high tensile and yield strength, good ductility, and exceptional impact resistance, making them ideal for high-pressure and moderate-temperature applications. Designed to endure both internal and external stresses while maintaining their structural integrity, Carbon Steel JIS G3454 Pipes offer reliable performance in industrial settings where safety, efficiency, and longevity are paramount.
| Standard | : | JIS G3454 |
| JIS G3454 Grade | : | STPG 410, STPG 370 |
| JIS G3454 Outer Dimensions | : | 6mm – 150mm |
| JIS G3454 Wall Thickness | : | 1.0mm – 20 mm THK |
| JIS G3454 | Elongation % | ||||
|---|---|---|---|---|---|
| C | Si | Mn | P | S | |
| STPG 370 | 0.25 max. | 0.35 max. | 0.30 to 0.90 | 0.040 max. | 0.040 max. |
| STPG 410 | 0.30 max. | 0.35 max. | 0.30 to 1.00 | 0.040 max. | 0.040 max. |
| JIS G3454 | Tensile strength | Yield point or proof stress | Elongation % | |||
|---|---|---|---|---|---|---|
| kgf/mm2 {N/mm2} | kgf/mm2 {N/mm2} | No.11 and No.12 test pieces | No. 5 test pieces | No. 4 test piece | ||
| Longitudinal | Transverse | Longitudinal | Transverse | |||
| STPG 370 | 38 {373}min | 22{216} min | 30 min | 25 min | 23 min | 28 min |
| STPG 410 | 42{412}min | 25{245} min | 25 min | 20 min | 19 min | 24 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel JIS G3454 Pipe products in Istanbul, Turkey. Specializing in premium steel materials, we offer a comprehensive range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong focus on timely delivery and exceptional customer service, Jaxon Steel ensures the supply of top-grade materials that provide superior performance in various industrial applications. Trust Jaxon Steel for all your Carbon Steel JIS G3454 Pipe needs.
| Permissible Specified Outside Diameter and Specified Wall Thickness | ||
Specified Outside Diameter D mm (in.) | Specified Wall Thickness t mm (in.) | |
| Special Light Sizes a | Regular Sizes | |
| ≥ 10.3 (0.405) to < 13.7 (0.540) | — | ≥ 1.7 (0.068) to ≤ 2.4 (0.094) |
| ≥ 13.7 (0.540) to < 17.1 (0.675) | — | ≥ 2.2 (0.088) to ≤ 3.0 (0.118) |
| ≥ 17.1 (0.675) to < 21.3 (0.840) | — | ≥ 2.3 (0.091) to ≤ 3.2 (0.125) |
| ≥ 21.3 (0.840) to < 26.7 (1.050) | — | ≥ 2.1 (0.083) to ≤ 7.5 (0.294) |
| ≥ 26.7 (1.050) to < 33.4 (1.315) | — | ≥ 2.1 (0.083) to ≤ 7.8 (0.308) |
| ≥ 33.4 (1.315) to < 48.3 (1.900) | — | ≥ 2.1 (0.083) to ≤ 10.0 (0.394) |
| ≥ 48.3 (1.900) to < 60.3 (2.375) | — | ≥ 2.1 (0.083) to ≤ 12.5 (0.492) |
| ≥ 60.3 (2.375) to < 73.0 (2.875) | ≥ 2.1 (0.083) to ≤ 3.6 (0.141) | > 3.6 (0.141) to ≤ 14.2 (0.559) |
| ≥ 73.0 (2.875) to < 88.9 (3.500) | ≥ 2.1 (0.083) to ≤ 3.6 (0.141) | > 3.6 (0.141) to ≤ 20.0 (0.787) |
| ≥ 88.9 (3.500) to < 101.6 (4.000) | ≥ 2.1 (0.083) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 22.0 (0.866) |
| ≥ 101.6 (4.000) to < 168.3 (6.625) | ≥ 2.1 (0.083) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 25.0 (0.984) |
| ≥ 168.3 (6.625) to < 219.1 (8.625) | ≥ 2.1 (0.083) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 40.0 (1.575) |
| ≥ 219.1 (8.625) to < 273.1 (10.750) | ≥ 3.2 (0.125) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 40.0 (1.575) |
| ≥ 273.1 (10.750) to < 323.9 (12.750) | ≥ 3.6 (0.141) to ≤ 5.2 (0.203) | > 5.2 (0.203) to ≤ 45.0 (1.771) |
| ≥ 323.9 (12.750) to < 355.6 (14.000) | ≥ 4.0 (0.156) to ≤ 5.6 (0.219) | > 5.6 (0.219) to ≤ 45.0 (1.771) |
| ≥ 355.6 (14.000) to < 457 (18.000) | ≥ 4.5 (0.177) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 45.0 (1.771) |
| ≥ 457 (18.000) to < 559 (22.000) | ≥ 4.8 (0.188) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 45.0 (1.771) |
| ≥ 559 (22.000) to < 711 (28.000) | ≥ 5.6 (0.219) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 45.0 (1.771) |
| ≥ 711 (28.000) to < 864 (34.000) | ≥ 5.6 (0.219) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 52.0 (2.050) |
| ≥ 864 (34.000) to < 965 (38.000) | — | ≥ 5.6 (0.219) to ≤ 52.0 (2.050) |
| ≥ 965 (38.000) to < 1422 (56.000) | — | ≥ 6.4 (0.250) to ≤ 52.0 (2.050) |
| ≥ 1422 (56.000) to < 1829 (72.000) | — | ≥ 9.5 (0.375) to ≤ 52.0 (2.050) |
| ≥ 1829 (72.000) to < 2134 (84.000) | — | ≥ 10.3 (0.406) to ≤ 52.0 (2.050) |
You’ll find Carbon Steel JIS G3454 Pipes widely used in industries that need reliable and durable piping solutions. They play a crucial role in transporting water and gas, as well as in oil pipelines and energy generation projects. Additionally, these pipes are essential in construction, chemical plants, and industrial frameworks where mechanical strength and pressure resistance are critical. They also find applications in infrastructure projects, such as municipal water systems and sewage lines. With their superior mechanical properties, corrosion resistance, and ease of installation, Carbon Steel JIS G3454 Pipes truly stand out as a dependable choice for various applications.
Filiz Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Istanbul, Turkey.
