Filiz Steel, based in Istanbul, Turkey, stands out as a top manufacturer and supplier of Carbon Steel EN 10210-1 Grade S235JRH Pipes. They specialize in providing high-quality structural hollow sections that cater to the needs of construction, engineering, and industrial sectors. These pipes are crafted in line with European standards, which guarantees exceptional dimensional accuracy, weldability, and mechanical performance. Filiz Steel offers S235JRH pipes that are versatile enough for a variety of structural and mechanical uses. With state-of-the-art production facilities and rigorous quality control measures, the company ensures that each pipe adheres to international specifications and performs reliably in challenging environments.
The Carbon Steel EN 10210-1 Grade S235JRH Pipes are produced from premium carbon steel, with carefully controlled levels of carbon, manganese, phosphorus, and sulfur. This specific composition results in outstanding ductility, good weldability, and adequate strength for structural applications. These pipes provide sufficient tensile and yield strength, along with impact resistance, ensuring they can be trusted under moderate stress conditions. Their hot-finished seamless and welded design boosts structural integrity and durability, making them perfect for fabrication and mechanical joining processes.
| Property | Specification |
|---|---|
| Dimensional Tolerances | Thickness: All sizes +/- 10% |
| Type | Seamless, Welded, ERW |
| Length | 6000 – 14000 mm |
| Surface Protection | Black (Self-Colored, Uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
| Wall Thickness | 0.5 mm – 25 mm |
| Standard | BS EN 10210 – Hot Finished Structural Hollow Sections of Non-Alloy and Fine Grain Steels |

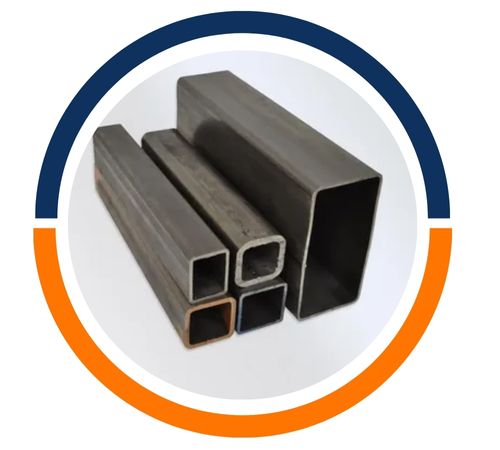

| SHS (Square Hollow Sections) Sizes | 20 x 20 mm – 400 x 400 mm |
| Grade | S235JRH |
| Dimension Range | 21.3 mm – 914 mm |
| Packing | In bundles, Anti-corrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End capped, Certification & supplementary test, Finishing & Identity Mark |
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
|---|---|---|---|---|---|---|---|---|---|
| max 0.17 | – | max 1.40 | 0.045 | 0.045 | – | – | – | – | N0.009 |
| Yield Strength | Tensile Strength | Elongation A5 min | |||
|---|---|---|---|---|---|
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage |
| 340 | 470 | – | 26 | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel EN 10210-1 Grade S235JRH Pipe in Istanbul, Turkey. Specializing in premium steel materials, we offer a diverse range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong commitment to reliable delivery and exceptional customer service, Jaxon Steel provides top-grade materials that ensure superior performance in various industrial applications. Trust Jaxon Steel for all your Carbon Steel EN 10210-1 Grade S235JRH Pipe needs.
| 1/8″ IPS(.405″ O.D.) | 3 1/2″ IPS( 4.000″ O.D.) |
|---|---|
| SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/4″ IPS(.540″ O.D.) | 4″ IPS(4.500″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 3/8″ IPS(.675″ O.D.) | 5″ IPS( 5.563″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/2″ IPS(.840″ O.D.) | 6″ IPS(6.625″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4″ IPS(1.050″ O.D.) | 8 ” IPS(8.625″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 1″ IPS:(1.315′ O.D.) | 10″ IPS(10.750″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4″ IPS(1.660″ O.D.) | 12″ IPS(12.750″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2″ IPS(1.900″ O.D.) | 14″ IPS(14.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
| 2″ IPS(2.375″ O.D.) | 16″ IPS(16.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
| 2 1/2″ IPS(2.875″ O.D.) | 18″ IPS (18.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
| 3″ IPS( 3.500″ O.D.) | |
| SCH 5, 10, 40, 80, 160, XXH |
| Outer diameter and wall Thickness | |||
|---|---|---|---|
| Execution | Size Range | OD Tolerance | Wall tolerance |
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall – 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall < 12 mmWall – 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 – 80 mmOD > 80 Wall Thickness< 6 mm Wall Thickness6 – 8 mm Wall Thickness > 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm |
These pipes find extensive use in structural engineering, construction frameworks, bridges, and machinery support structures. They’re also utilized in power plants, refineries, offshore platforms, and various industrial applications where durability and mechanical reliability are crucial. Thanks to their excellent weldability and formability, they are ideal for fabrications and assemblies that demand precision and a long service life. With a blend of strength, toughness, and versatility, S235JRH pipes offer an efficient and cost-effective solution for contemporary construction and engineering projects.
