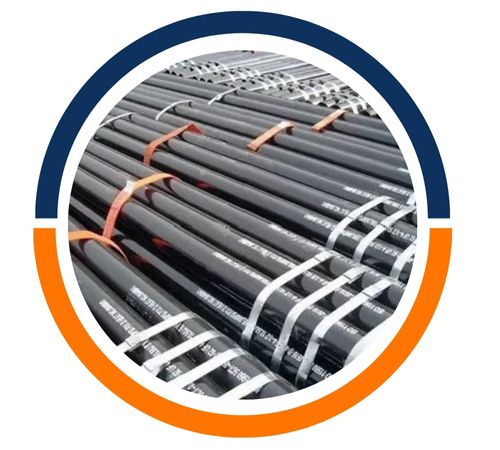

Filiz Steel, located in Istanbul, Turkey, stands out as a leading manufacturer and supplier of top-notch carbon steel pipes, catering to a variety of industries with dependable and standards-compliant products. One of their flagship offerings is the Carbon Steel DIN 2440 Pipe, which can be either seamless or welded, specifically crafted for pressure-bearing and fluid transport systems. These pipes are produced in line with the German standard DIN 2440 and are commonly utilized for transporting gas, air, oil, steam, and water in both industrial and residential settings. Filiz Steel is committed to rigorous quality control and consistent specifications to satisfy the needs of customers in both local and international markets.
The Carbon Steel DIN 2440 Pipes are made from non-alloy steels that boast moderate mechanical properties and are generally available in a medium-weight series with either threaded or plain ends. They typically come with a black or galvanized finish to protect against corrosion. Common grades include St 33 and St 35, which provide tensile strengths ranging from 340 to 510 MPa, along with moderate yield strengths that vary based on the specific steel grade and pipe condition. These pipes are usually supplied in lengths that are ideal for plumbing, gas lines, compressed air systems, and low-pressure fluid transport, with a diverse selection of outer diameters and wall thicknesses.
| Steel Grade | C | Si | Mn | Cr | Ni | Mo |
| St 33 | It is not normalized | |||||
| Steel Grade | Tensile Strength,N/mm2(min) | Yield Strength,N/mm2(min) | Elongation, % (min) |
| St 33.2 | 290 – 310 | 185 | 18 |
| DIN 2440 | ||||||
| DN | Zoll | d | s | kg/m | ||
| schwarz | verzinkt | |||||
| 8 | 1/4 | 13.5 | 2.35 | 0.65 | 0.68 | |
| 10 | 3/8 | 17.2 | 2.35 | 0.85 | 0.89 | |
| 15 | 1/2 | 21.3 | 2.65 | 1.22 | 1.27 | |
| 20 | 3/4 | 26.9 | 2.65 | 1.58 | 1.65 | |
| 25 | 1 | 33.7 | 3.25 | 2.44 | 2.55 | |
| 32 | 1 1/4 | 42.4 | 3.25 | 3.14 | 3.28 | |
| 40 | 1 1/2 | 48.3 | 3.25 | 3.61 | 3.77 | |
| 50 | 2 | 60.3 | 3.65 | 5.10 | 5.33 | |
| 65 | 21/2 | 76.1 | 3.65 | 6.51 | 6.80 | |
| 80 | 3 | 88.9 | 4.05 | 8.47 | 8.85 | |
| 100 | 4 | 114.3 | 4.5 | 12.10 | 12.64 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel DIN 2440 Pipe products in Istanbul, Turkey. Specializing in premium steel materials, we offer an extensive range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our diverse selection includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a commitment to dependable delivery and exceptional customer service, Jaxon Steel ensures the supply of superior materials that provide outstanding performance across various industrial applications. Trust Jaxon Steel for all your Carbon Steel DIN 2440 Pipe requirements.
| Nominall Width> | Conn- ecting nomin- al width of the flttings according to DIN 2950 and DIN 2980 | Whit- worth- pipe threads according to DIN 2999 Part1 | Tube | Screw thread | Corresponding socket according to DIN 2986 | ||||||||
| Outside diameterd1 | Wall thick- nesss | Weight | Theo- retical screw thread diameter d2 | Threads per 25.4mm | Usable screw thread length J min at a max. | Distance of screw thread dlameter d2 from tube end | Outside diameter | Length | |||||
| Plain-end tube kg/m | socketed tubekg/m | a max. | a min. | min. | min. | ||||||||
| 6 | 1/8 | R 1/8 | 10.2 | 2.0 | 0.407 | 0.410 | 9.728 | 28 | 7.4 | 4.9 | 3.1 | 14 | 17 |
| 8 | 1/4 | R 1/4 | 13.5 | 2.35 | 0.650 | 0.654 | 13.157 | 19 | 11.0 | 7.3 | 4.7 | 15.4 | 25 |
| 10 | 3/8 | R 3/8 | 17.2 | 2.65 | 0.852 | 0.858 | 16.662 | 19 | 11.4 | 7.7 | 5.1 | 21.3 | 26 |
| 15 | 1/2 | R 1/2 | 21.3 | 2.65 | 1.22 | 1.23 | 20.955 | 14 | 15.0 | 10.0 | 6.4 | 26.4 | 34 |
| 20 | 3/4 | R 3/5 | 26.9 | 2.65 | 1.58 | 1.59 | 26.441 | 14 | 16.3 | 11.3 | 7.7 | 31.8 | 36 |
| 25 | 1 | R 1 | 33.7 | 3.25 | 2.44 | 2.46 | 33.249 | 11 | 19.1 | 12.7 | 8.1 | 39.5 | 43 |
| 32 | 1 1/4 | R 1 1/4 | 42.4 | 3.25 | 3.14 | 3.17 | 41.910 | 11 | 21.4 | 15.0 | 10.4 | 48.3 | 48 |
| 40 | 1 1/2 | R 1 1/2 | 48.3 | 3.25 | 3.61 | 3.64 | 47.803 | 11 | 21.4 | 15.0 | 10.4 | 54.5 | 48 |
| 50 | 2 | R 2 | 60.3 | 3.65 | 5.10 | 5.17 | 59.614 | 11 | 25.7 | 18.2 | 13.6 | 66.3 | 56 |
| 65 | 2 1/2 | R 2 1/2 | 76.1 | 3.65 | 6.51 | 6.63 | 75.184 | 11 | 30.2 | 21.0 | 14.0 | 82 | 65 |
| 80 | 3 | R 3 | 88.9 | 4.05 | 8.47 | 8.64 | 87.884 | 11 | 33.3 | 241 | 17.1 | 95 | 71 |
| 100 | 4 | R4 | 114.3 | 4.5 | 12.1 | 12.4 | 113.030 | 11 | 39.3 | 28.9 | 21.9 | 122 | 83 |
| 125 | 5 | R 5 | 139.7 | 4.85 | 16.2 | 16.2 | 138.430 | 11 | 43.6 | 32.1 | 25.1 | 147 | 92 |
| 150 | 6 | R 6 | 165.1 | 4.85 | 19.2 | 19.8 | 163.830 | 11 | 43.6 | 32.1 | 25.1 | 174 | 92 |
| 1) Referred to an average length of 6m | |||||||||||||
Carbon Steel DIN 2440 Pipes find extensive use in various applications, including building installations, industrial piping systems, compressed air lines, low-pressure steam systems, water supply lines, and fire protection systems. Their ease of threading and welding makes them particularly favored in plumbing and heating industries. For outdoor or exposed installations, galvanized versions are often chosen to prevent corrosion. Overall, DIN 2440 pipes offer a practical and durable solution for infrastructure and utility networks where cost-effectiveness, straightforward installation, and moderate pressure resistance are essential.
