Filiz Steel, a reliable manufacturer and supplier in Istanbul, Turkey, provides high-quality Carbon Steel Bolts that are trusted for their strength, toughness, and affordability. These bolts are manufactured with precision to ensure safe and strong fastening in different industrial and construction projects. Filiz Steel guarantees each bolt meets strict quality standards, making them dependable for heavy-duty use. Carbon Steel Bolts are widely used in automotive, construction, oil and gas, and machinery industries. Known for their durability and cost-effectiveness, they provide long-lasting performance in both structural and mechanical applications where secure fastening is critical.
Carbon Steel Bolts are made from steel containing carbon as the main strengthening element, with small amounts of manganese and silicon. This composition gives them excellent tensile strength, hardness, and wear resistance. Depending on carbon content (low, medium, or high), they offer different levels of toughness and machinability. These bolts have strong load-bearing capacity and can withstand stress in heavy-duty environments. Carbon Steel Bolts also provide reliable durability, and with proper coating or plating, they gain resistance against corrosion, making them suitable for long-term use in various industries.
Specification : ASTM F568 / ASME SF568
Dimension : DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Size Range : M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length : 3 mm to 200 mm

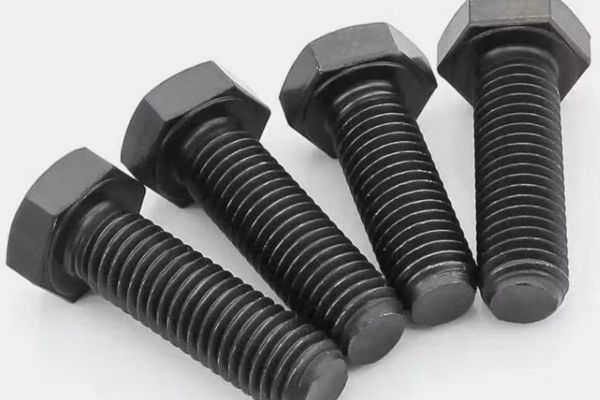

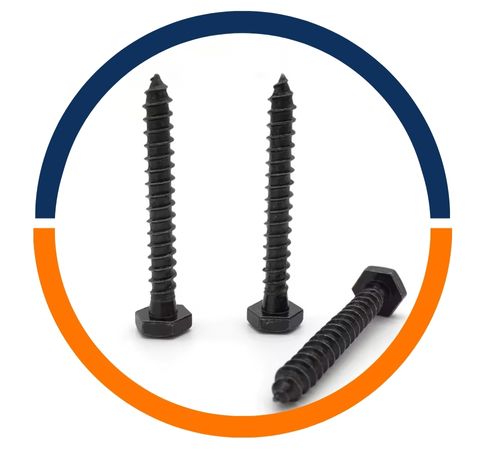

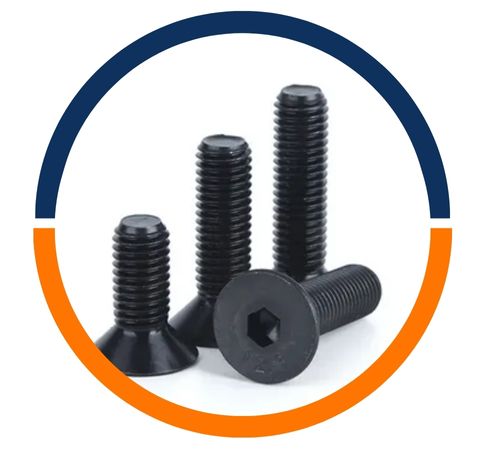

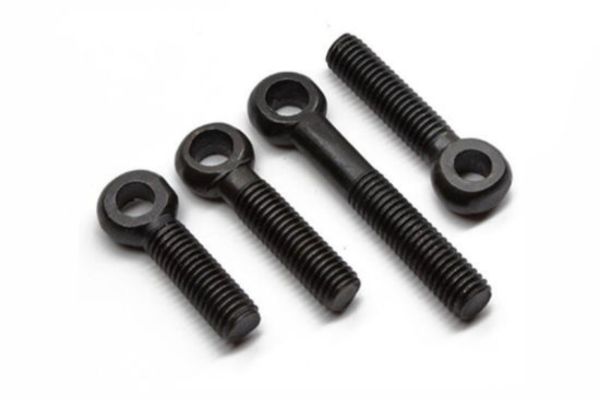

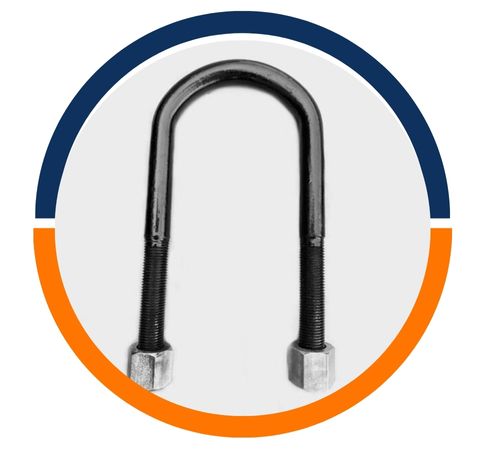

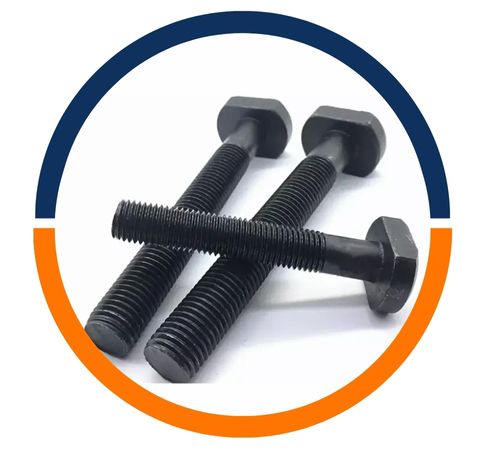

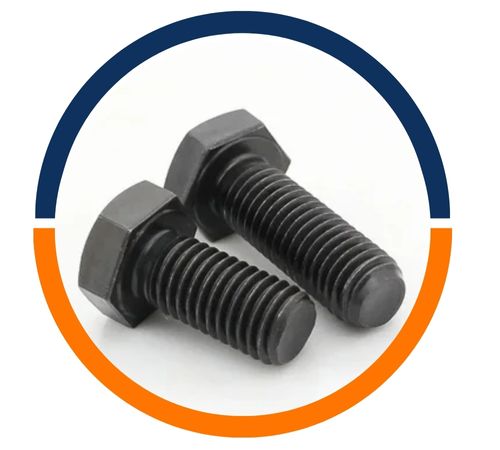

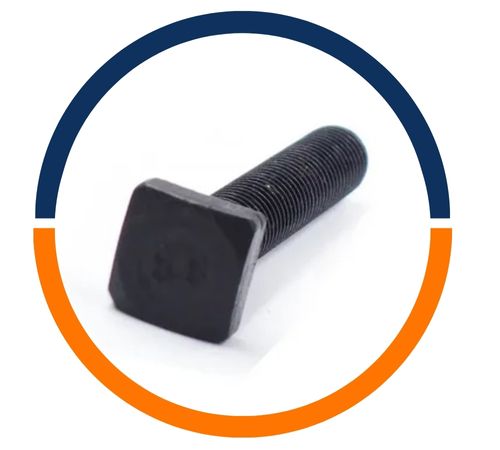

Type : Hex Head Bolts, Square Bolts, U bolts, Eye bolts, T bolt, Hex Bolt, Lag Bolts, Counter sunk Bolts
| Grade | C | P | S | B |
| Carbon Steel 10.9 | 0.20-0.55 | 0.025 | 0.025 | 0.003 |
| Carbon Steel 12.9 | 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Element | Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |

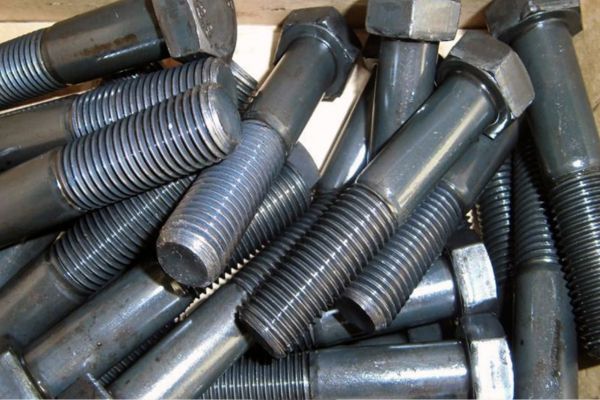

| Carbon Steel 10.9 | 5–100 | 830 | 940 | 1040 | C32–39 |
| Carbon Steel 12.9 | 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trustworthy manufacturer and supplier of quality Carbon Steel Bolts in Istanbul, Turkey. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel Bolt needs!
| Heavy Hex Bolt Diameter | D | F | C | H | |||||
| Body Diameter | Width Across Flats | Width Across Corners | Height | ||||||
| Max | Basic | Max | Min | Max | Min | Basic | Max | Min | |
| 1/2 | 0.515 | 7/8 | 0.875 | 0.850 | 1.010 | 0.969 | 11/32 | 0.364 | 0.302 |
| 5/8 | 0.642 | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 27/64 | 0.444 | 0.378 |
| 3/4 | 0.768 | 1-1/4 | 1.250 | 1.212 | 1.443 | 1.383 | 1/2 | 0.524 | 0.455 |
| 7/8 | 0.895 | 1-7/16 | 1.438 | 1.394 | 1.660 | 1.589 | 37/64 | 0.604 | 0.531 |
| 1 | 1.022 | 1-5/8 | 1.625 | 1.575 | 1.876 | 1.796 | 43/64 | 0.700 | 0.591 |
| 1-1/8 | 1.149 | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 3/4 | 0.780 | 0.658 |
| 1-1/4 | 1.277 | 2 | 2.00 | 1.938 | 2.309 | 2.209 | 27/32 | 0.876 | 0.749 |
| 1-3/8 | 1.404 | 2-3/16 | 2.188 | 2.119 | 2.526 | 2.416 | 29/32 | 0.940 | 0.810 |
| 1-1/2 | 1.531 | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 1 | 1.036 | 0.902 |
| 1-3/4 | 1.785 | 2-3/4 | 2.750 | 2.662 | 3.175 | 3.035 | 1-5/32 | 1.196 | 1.054 |
| 2 | 2.039 | 3-1/8 | 3.125 | 3.025 | 3.608 | 3.449 | 1-11/32 | 1.388 | 1.175 |
| 2-1/4 | 2.305 | 3-1/2 | 3.500 | 3.388 | 4.041 | 3.862 | 1-1/2 | 1.548 | 1.327 |
| 2-1/2 | 2.559 | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 1-21/32 | 1.708 | 1.479 |
| Nominal or Basic Product Diameter | E | F | G | H | J | LT (Thread Length) | Y | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Body Diameter | Width Across Flats | Width Across Corners | Head Height | Wrenching Height | For Bolt Lengths | For Bolt Lengths | Transition Thread Length | ||||||||
| 1/4 | 0.25 | 0.25 | 0.245 | 7/16 | 0.438 | 0.428 | 0.505 | 0.488 | 5/32 | 0.163 | 0.150 | 0.106 | 0.750 | 1.000 | 0.250 |
| 5/16 | 0.3125 | 0.3125 | 0.3065 | 1/2 | 0.500 | 0.489 | 0.577 | 0.557 | 13/64 | 0.211 | 0.195 | 0.140 | 0.875 | 1.125 | 0.278 |
| 3/8 | 0.375 | 0.375 | 0.369 | 9/16 | 0.562 | 0.551 | 0.650 | 0.628 | 15/64 | 0.243 | 0.226 | 0.160 | 1.000 | 1.250 | 0.312 |
| 7/16 | 0.4375 | 0.4375 | 0.4305 | 5/8 | 0.625 | 0.612 | 0.722 | 0.698 | 9/32 | 0.291 | 0.272 | 0.195 | 1.125 | 1.375 | 0.357 |
| 1/2 | 0.5 | 0.5 | 0.493 | 3/4 | 0.750 | 0.736 | 0.866 | 0.840 | 5/16 | 0.323 | 0.302 | 0.215 | 1.250 | 1.500 | 0.385 |
| 9/16 | 0.5625 | 0.5625 | 0.5545 | 13/16 | 0.812 | 0.798 | 0.938 | 0.910 | 23/64 | 0.371 | 0.348 | 0.250 | 1.375 | 1.625 | 0.417 |
| 5/8 | 0.625 | 0.625 | 0.617 | 15/16 | 0.938 | 0.922 | 1.083 | 1.051 | 25/64 | 0.403 | 0.378 | 0.269 | 1.500 | 1.750 | 0.455 |
| 3/4 | 0.75 | 0.75 | 0.741 | 1-1/8 | 1.125 | 1.100 | 1.299 | 1.254 | 15/32 | 0.483 | 0.455 | 0.324 | 1.750 | 2.000 | 0.500 |
| 7/8 | 0.875 | 0.875 | 0.866 | 1-5/16 | 1.312 | 1.285 | 1.516 | 1.465 | 35/64 | 0.563 | 0.531 | 0.378 | 2.000 | 2.250 | 0.556 |
| 1 | 1 | 1 | 0.99 | 1-1/2 | 1.500 | 1.469 | 1.732 | 1.675 | 39/64 | 0.627 | 0.591 | 0.416 | 2.250 | 2.500 | 0.625 |
| 1-1/8 | 1.125 | 1.125 | 1.114 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 11/16 | 0.718 | 0.658 | 0.461 | 2.500 | 2.750 | 0.714 |
| 1-1/4 | 1.25 | 1.25 | 1.239 | 1-7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 25/32 | 0.813 | 0.749 | 0.530 | 2.750 | 3.000 | 0.714 |
| 1-1/2 | 1.5 | 1.5 | 1.488 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 15/16 | 0.974 | 0.902 | 0.640 | 3.250 | 3.500 | 0.833 |
Carbon Steel Bolts are widely used in industries where strong and economical fastening is needed. They are commonly applied in construction projects, bridges, machinery, automotive parts, and oil and gas pipelines. In heavy equipment, they help hold structural components together securely. They are also used in manufacturing, fabrication, and power plants where durability and safety are essential. With coatings such as zinc or galvanization, these bolts are suitable for outdoor and corrosive environments as well. Their strength, availability, and cost-effectiveness make Carbon Steel Bolts a preferred choice for engineers, builders, and manufacturers across the globe.
