Filiz Steel, a well-respected supplier located in Istanbul, Turkey, provides robust and expertly crafted **Carbon Steel ASTM A234 WPB pipe fittings**. These fittings are specifically designed for pressure piping and pressure vessel fabrication, suitable for moderate to high-temperature applications. They are produced in accordance with the **ASTM A234 specification**, which outlines the standards for wrought carbon steel and alloy steel fittings used in both seamless and welded systems. The **WPB grade** (Wrought Pipe, Grade B) is the go-to choice for carbon steel butt-weld fittings, known for its impressive strength, excellent weldability, and good corrosion resistance, making it perfect for a variety of general-purpose uses.

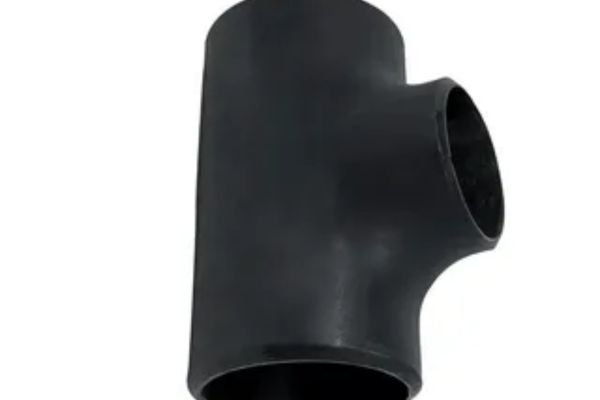

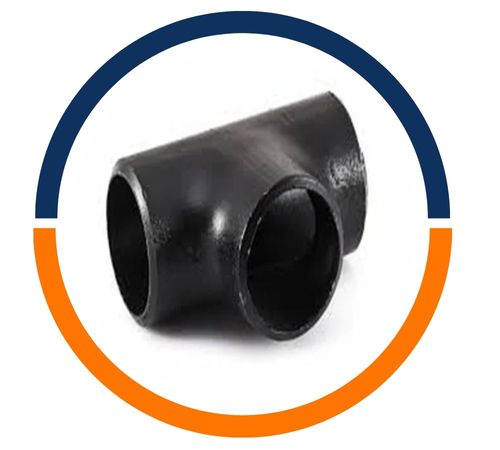

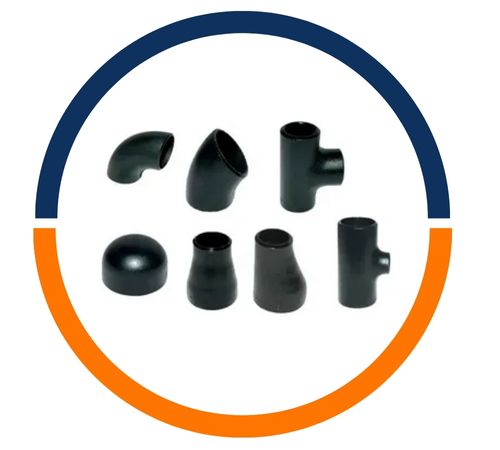

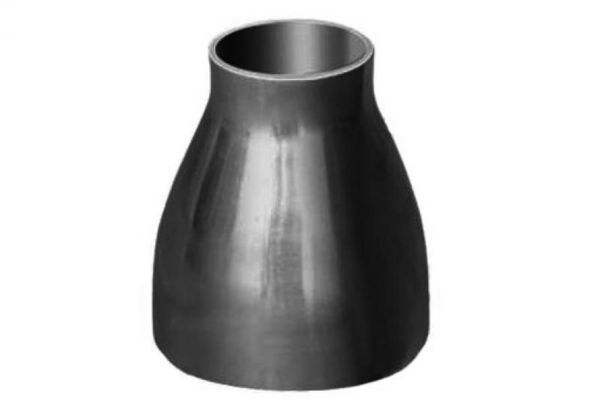

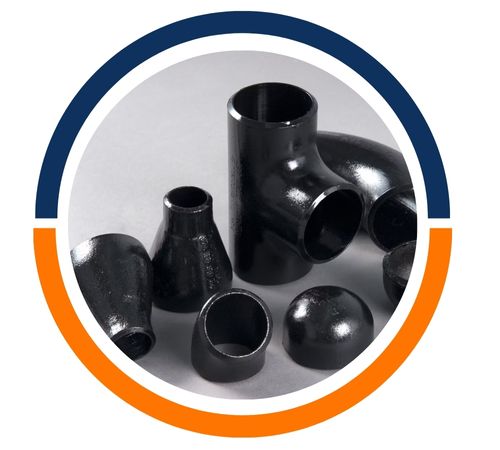

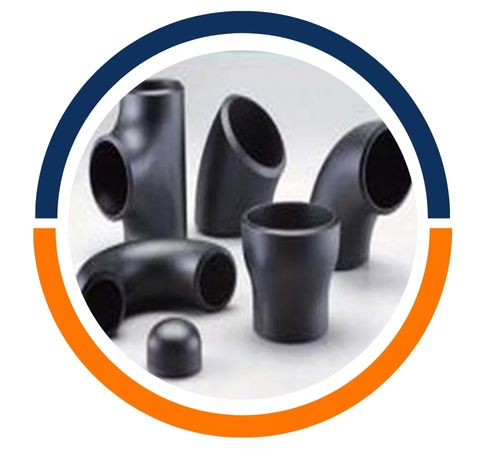

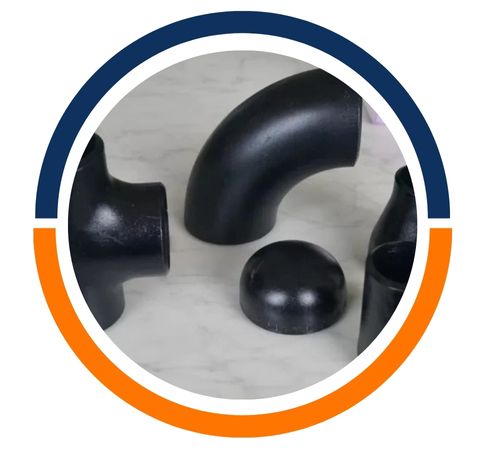

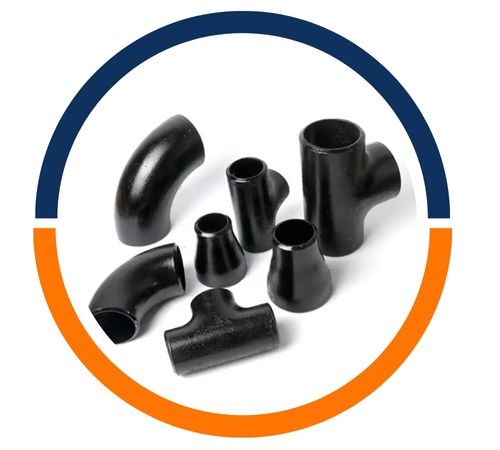

Constructed from **killed carbon steel**, these fittings typically have a **maximum carbon content of 0.30%**, along with carefully controlled levels of **manganese, phosphorus, sulfur, and silicon**. They boast a **minimum yield strength of 240 MPa** and a **minimum tensile strength of 415 MPa**, which makes them ideal for high-pressure systems operating at moderate to high temperatures. Filiz Steel offers a comprehensive selection of WPB fittings, including **elbows, tees, reducers, caps, crosses**, and **stub ends**, available in sizes from small bore to large diameter, with options for seamless or welded construction.
| Specification | ASTM A234 / ASME SA234 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/2″ NB to 24″NB in. |
| Type | Seamless / Welded / Fabricated |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Surface Treatment | Rust-proof black oil or hot galvanized, Transparent oil |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Grade | C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V | Nb |
| WPB | 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
| Tensile Requirements | WPB | WPC |
| Tensile Strength, min, ksi[MPa] | 60-85 [415-585] | 70-95 [485-655] |
| Yield Strength, min, ksi[MPa] | 32 [240] | 40 [275] |
| Pipe | Fittings | Flanges | Valves | Bolts & Nuts |
| A106 Gr B | A234 Gr WPB | A105 | A216 Gr WCB | A193 Gr B7 A194 Gr 2H |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Minimal Pipe Size | O.D. | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | LR | SR | LR | LR | ||||
| (Millimetre) | (inch) | Center to Face (inch) | Center to Face (inch) | Center to Face (inch) | Radii (inch) | Center to Center (inch) | Back to face (inch) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
These A234 WPB fittings are widely utilized in **oil and gas pipelines**, **petrochemical plants**, **power generation**, **refineries**, and **water treatment systems**. They play a crucial role in changing the direction of flow, branching out, or adjusting pipe diameters in process piping. Filiz Steel guarantees that all fittings are manufactured to meet international standards such as **ASME B16.9** and **MSS-SP**, and they can be supplied with **NACE compliance**, third-party inspection, and complete certification to fulfill specific project requirements.
Carbon Steel A234 WPB pipe fittings are largely applied in oil and gas, power generation, petrochemical, and chemical processing industries because of their superior strength, durability, and corrosion resistance. They find large-scale applications in piping systems to change the direction, branch, or diameter of flow. These fittings are best suited for high-pressure and high-temperature applications and find application in refineries, pipelines, and boiler systems. They also provide leak-proof connections in safety-critical systems.
