Carbon Steel A106 Gr B Pipe Manufacturer and Supplier in Istanbul, Turkey

Carbon Steel A106 Gr B Pipe

Worldwide Shipping

Largest
Inventory

Modern
Equipments

Expert
Engineers

Efficient Factories

Well
Maintained

Filiz Steel, based in Istanbul, Turkey, has established itself as a reliable manufacturer and supplier of top-notch carbon steel pipes, specifically designed for high-temperature and high-pressure applications. One of their standout products is the Carbon Steel A106 Grade B Pipe, crafted to meet ASTM A106 standards for seamless carbon steel pipes that are essential in constructing pressure vessels, boilers, and piping systems. Filiz Steel takes pride in ensuring that all their pipes adhere to rigorous quality controls and dimensional tolerances, guaranteeing dependable performance across the oil, gas, petrochemical, and power generation sectors globally.

Carbon Steel A106 Gr B Pipes Exporter in Turkey, Carbon Steel A106 Gr B Pipes Price List in Istanbul, ASTM A106 Gr B Pipes Supplier in Bursa, Carbon Steel A106 Gr B Pipes Exporter in West Istanbul, CS A106 Gr B Pipes Exporter in Bodrum, Carbon Steel A106 Gr B Pipes Size Chart, ASME SA 106 Grade A Pipes Price in Antalya, Carbon Steel A106 Gr B Pipes Weight Chart, Carbon Steel A106 Gr B Pipes Thickness, ASTM A106 Gr B Pipes Supplier in İzmir

CS A106 Gr B Seamless Pipes

CS A106 Gr B Welded Pipes

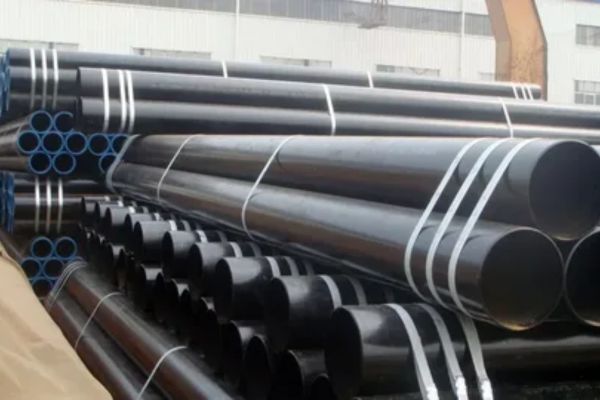

CS A106 Gr B EFW Pipes

What is Carbon Steel A106 Gr B Pipe?

The Carbon Steel A106 Grade B Pipe is made from carbon steel with a carefully controlled chemical composition, typically featuring a maximum carbon content of 0.30% and manganese levels between 0.29% and 1.06%. It boasts a minimum yield strength of 240 MPa and a tensile strength ranging from 415 to 535 MPa. These pipes can be supplied in either hot-finished or cold-drawn conditions, making them suitable for bending, flanging, and welding. The Grade B designation strikes a perfect balance between strength, ductility, and weldability, making it an excellent choice for various pressure piping applications.

CS A106 Gr B Pipes Supplier in Istanbul, ASTM A106 Gr B Pipes Exporter in Bursa, ASME SA 106 Grade A Pipes Manufacturer in West Istanbul, Carbon Steel A106 Gr B Pipes Price List in İzmir, ASTM A106 Gr B Pipes Sizes in mm, ASME SA 106 Grade A Pipes Distributor in Bodrum, Carbon Steel A106 Gr B Pipes in Antalya, ASTM A106 Gr B Pipes Supplier in West Istanbul, Carbon Steel A106 Gr B Pipes Distributor in Turkey

Carbon Steel A106 Gr B Pipe Specification

Standards	ASTM, ASME and API, ANSI B 36.10
Grades	ASTM A106 Grade A, ASTM A106 Grade B, ASTM A106 Grade C
Size	1/2” NB to 36” NB
Thickness	3-12mm
Schedules	SCH 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier
Origin	European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material)
Tolerance	Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm
Craft	Cold rolled and Cold drawn
Type	Seamless / ERW / Welded / Fabricated
Form	Round, Hydraulic Etc
Length	Min 3 Meters, Max18 Meters, or according to customer’s requirement
End	Plain End, Beveled End, Treaded
Specialized in	Large Diameter ASTM A106 Grade B Pipe
Additional Testing	Mill Test Certificates, EN 10204 3.1, Chemical /Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports, India Boiler Regulations (IBR) Test Certificate, NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR
ASME Standard	B36.10M Welded and Seamless Wrought Steel Pipe
ANSI Standard	B1.20.1 Pipe Threads, General Purpose

Carbon Steel A106 Gr B Pipe Chemical Composition

Element	ASTM A106 Carbon Steel Gr. B
C	0.30
Mn	0.29-1.06
P	0.04
S	0.04
Cu	0.40
Ni	0.40
Cr	0.4
Mo	0.15
V	0.08

Carbon Steel A106 Gr B Pipe Mechanical Properties

Element	ASTM A106 Carbon Steel Gr. B
Tensile Strength	60,000 (415) MPa
Yield Strength (0.2%Offset)	35,000 (240) MPa

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Carbon Steel A106 Gr B Pipe Weight Chart

Size	Other Diameter	Pipe I.D.	WT	Standard to XXHY	Weight	Section Modulus	Schedule Pipe #	Gallon
1/2	0.84	0.622	0.109	STD	0.85	.0407	40	.0158
		0.546	0.147	XHY	1.09	.0478	80	.0122
		0.464	0.188		1.31	.0528	160	.0088
3/4	1.05	0.824	0.113	STD	1.13	.0705	40	.0277
		0.742	0.154	XHY	1.48	.0853	80	.0225
		0.612	0.219		1.95	.1006	160	.0153
1	1.315	1.049	0.133	STD	1.68	.1328	40	.0449
		0.957	0.179	XHY	2.17	.1606	80	.0374
		0.815	0.250		2.85	.1904	160	.0271
1 1/4	1.66	1.380	0.140	STD	2.27	.2346	40	.0777
		1.278	0.191	XHY	3.00	.2913	80	.0666
		1.160	0.250		3.77	.3421	160	.0549
1 1/2	1.90	1.610	0.145	STD	2.72	.3262	40	.1058
		1.500	0.200	XHY	3.63	.4118	80	.0918
		1.338	0.281		4.86	.5079	160	.0730
2	2.375	2.157	0.109		2.64	.4205	10	.1898
		2.067	0.154	STD	3.66	.5606	40	.1743
		1.939	0.218	XHY	5.03	.7309	80	.1534
		1.875	0.250		5.68	.8045		.1434
		1.813	0.281		6.29	.8666		.1344
		1.687	0.344		7.47	.9806	160	.1161
2 1/2	2.875	2.635	0.120		3.53	.6870	10	.2833
		2.469	0.203	STD.	5.80	1.0640	40	.2487
		2.443	0.216		6.14	1.1169		.2435
		2.375	0.250		7.02	1.2468		.2301
		2.323	0.276	XHY	7.67	1.3386	80	.2202
		2.125	0.375		10.02	1.6371	160	.1842
3	3.50	3.260	0.120		4.34	1.0411		.4336
		3.188	0.156		5.58	1.3122		.4147
		3.156	0.172		6.12	1.4265		.4064
		3.124	0.188		6.66	1.5342		.3984
		3.068	0.216	STD.	7.58	1.7241	40	.3840
		3.000	0.250		8.69	1.9372		.3672
		2.938	0.281		9.67	2.1207		.3521
		2.900	0.300	XHY	10.26	2.2253	80	.3431
		2.624	0.438		14.34	2.8774	160	.2811
3 1/2	4.0	3.760	0.120		4.98	1.3776	10	.5768
		3.548	0.226	STD.	9.12	2.3939	140	.5136
		3.500	0.250		10.02	2.6001		.4998
		3.438	0.281		11.17	2.8562		.4821
		3.364	0.318	XHY	12.52	3.1400	80	.4617
4	4.5	4.260	0.120		5.62	1.7612	10	.7404
		4.188	0.156		7.24	2.2354		.7156
		4.124	0.188		8.67	2.6296		.6942
		4.094	0.203		9.32	2.8173		.6838
		4.062	0.219		10.02	3.0184		.6725
		4.026	0.237	STD.	10.80	3.2145	40	.6613
		4.000	0.250		11.36	3.3611		.6528
		3.938	0.281		12.67	3.7021	60	.6326
		3.876	0.312		13.97	4.0273		.6126
		3.826	0.337	XHY	15.00	4.2713	80	.5972
		3.624	0.438		19.02	5.1790	120	.5361
		3.438	0.531		22.53	5.8997	160	.4822
5	5.563	5.187	0.188		10.80	4.1161		1.0979
		5.125	0.219		12.51	4.7279		1.0716
		5.047	0.258	STD.	14.63	5.4500	40	1.0391
		5.001	0.281		15.87	5.8644		1.0204
		4.939	0.312		17.51	6.4074		.99647
		4.875	0.344		19.19	6.9358		.9696
		4.813	0.375	XHY	20.80	7.4300	80	.9449
		4.563	0.500		27.06	9.2534	120	.8495
		4.313	0.625		32.99	10.7976	160	.7590
6	6.625	6.407	0.109		7.59	3.5769	5	1.6748
		6.357	0.134		9.30	4.3475	10	1.6488
		6.313	0.156		10.79	5.0107		1.6260
		6.249	0.188		12.94	5.9351		1.5937
		6.219	0.203		13.94	6.3804		1.5780
		6.187	0.219		15.00	6.8261		1.5620
		6.125	0.250		17.04	7.6905		1.5306
		6.065	0.280	STD.	18.99	8.4958	40	1.5008
		6.001	0.312		21.06	9.3416		1.4688
		5.937	0.344		23.10	10.111		1.4391
		5.875	0.375		25.05	10.893		1.4082
		5.761	0.432	XHY	28.60	12.224	80	1.3541
		5.625	0.500		32.74	13.711		1.2909
		5.501	0.562		36.43	14.9806	120	1.2346
		5.375	0.625		40.09	16.1821		1.1787
		5.187	0.719		45.39	17.8243	160	1.0977
		4.897	0.864	XXHY	53.21	20.025		.9784
		4.625	1.000		60.13	21.7719		.8727
		4.375	1.125		66.14	23.1237		.7809

Top Manufacturer and Supplier of Carbon Steel A106 Gr B Pipe in Istanbul, Turkey

Filiz Steel is a top manufacturer and supplier of high-quality Carbon Steel A106 Gr B Pipe products in Istanbul, Turkey. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.

Carbon Steel A106 Gr B Pipes Price List in İzmir, ASTM A106 Gr B Pipes Distributor in Bodrum, Carbon Steel A106 Grade B Pipes in Antalya, Carbon Steel A106 Gr B Pipes Supplier in West Istanbul, Carbon Steel A106 Gr B Pipes Distributor in Turkey, ASME SA 106 Grade A Pipes Stockist in Bursa, Carbon Steel A106 Gr B Pipes Supplier in Istanbul, Carbon Steel A106 Gr B Pipes Exporter in Bursa, ASTM A106 Gr B Pipes Sizes in mm, CS A106 Gr B Pipe Manufacturer in West Istanbul

Types of Carbon Steel A106 Gr B Pipe

CS A106 Gr B Pipes Exporter in Bodrum, ASTM A106 Gr B Pipes Size Chart, Carbon Steel A106 Gr B Pipes Price in Antalya, Carbon Steel A106 Grade B Pipes Weight Chart, ASTM A106 Gr B Pipes Thickness,Carbon Steel A106 Pipe Supplier in İzmir, CS A106 Gr B Pipes Stockist in Bursa, ASTM A106 Gr B Pipes Exporter in Turkey, Carbon Steel A106 Gr B Pipes Price List in Istanbul, Carbon Steel A106 Gr B Pipes Supplier in Bursa, Carbon Steel A106 Gr B Pipes Exporter in West Istanbul

Uses of Carbon Steel A106 Gr B Pipe

Widely utilized in high-temperature services, Carbon Steel A106 Grade B Pipe is ideal for transporting fluids in refineries, power plants, and chemical processing facilities. Its remarkable mechanical properties and thermal resistance make it perfect for steam, oil, gas, and water transmission systems that operate under high temperatures and pressures. The pipe’s versatility and durability also make it a popular option for fabricating pressure vessels and heat exchangers. Filiz Steel offers A106 Grade B pipes in a range of sizes and schedules to meet specific project requirements, complete with full certification and testing.
