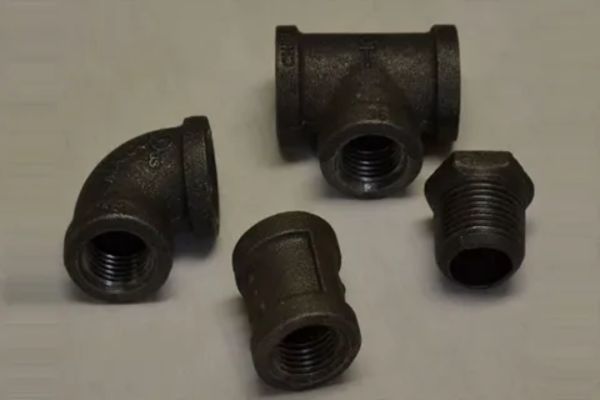

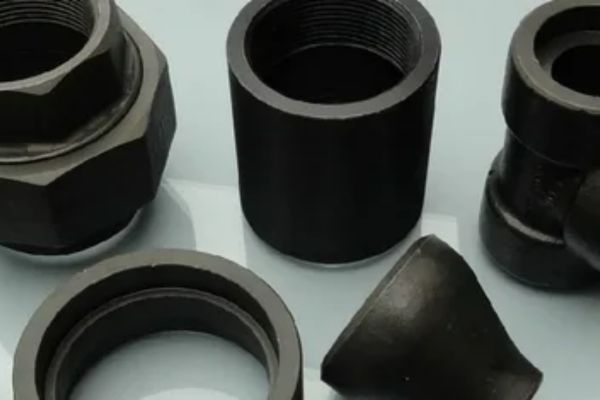

Filiz Steel, based in Istanbul, Turkey, stands out as a top manufacturer and supplier of Carbon Steel A105 Forged Fittings, known for delivering high-quality forged components that are perfect for high-pressure piping systems. Crafted from premium carbon steel, these fittings are built to endure tough conditions, ensuring they provide excellent durability, leak-proof connections, and a long lifespan. Filiz Steel offers a diverse selection of forged fittings, including elbows, tees, couplings, unions, crosses, and caps, serving various industries like oil and gas, petrochemical, power generation, and shipbuilding. With a strong focus on precision engineering and rigorous quality control, Filiz Steel guarantees reliable forged fittings that meet international standards.
The Carbon Steel A105 Forged Fittings are primarily made up of carbon, manganese, phosphorus, sulfur, and silicon, carefully balanced to deliver outstanding strength, ductility, and toughness. They boast impressive mechanical properties, including high tensile strength, superior yield strength, impact resistance, and excellent hardness, making them ideal for both regular and high-temperature applications. These fittings undergo heat treatment to boost their performance and are perfectly suited for welding, threading, and socket-welding connections in high-pressure piping systems.
Standard : ASTM A105 / ASME SA 105
Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8″ NB to 4″ NB

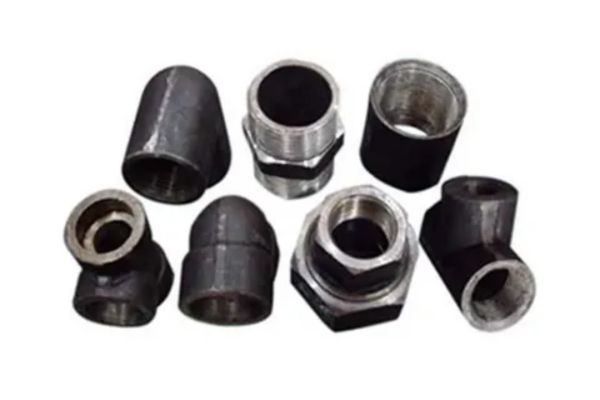

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V |
| A105 | 0.35 | 0.10–0.35 | 0.60–1.05 | 0.035 | 0.040 | 0.12 | 0.40 | 0.30 | 0.40 | 0.08 |
| Grade | Yield Strength, Min (MPa) | Tensile Strength, Min (MPa) | Elongation, min, % |
| A105 | 250 | 485 | 30 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| ASME B16.11 | Factory-Made Wrought Socketweld Fittings | CS A105 Forged Screwed Elbows, Street Elbow, A105 Carbon Steel Screwed Unequal Tee, Steel Straight Tee, Carbon Steel A105 Reducing Coupling, A105 Carbon Steel Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, CS A105 Threaded Bushing, A105 Carbon Steel Screwed Caps, Swedge Nipples |
| MSS-SP-79 | standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding | Carbon Steel A105 Barrel Nipples, CS A105 Forged Threaded Boss, A105 Carbon Steel Forged Hex Head Bull Plugs |

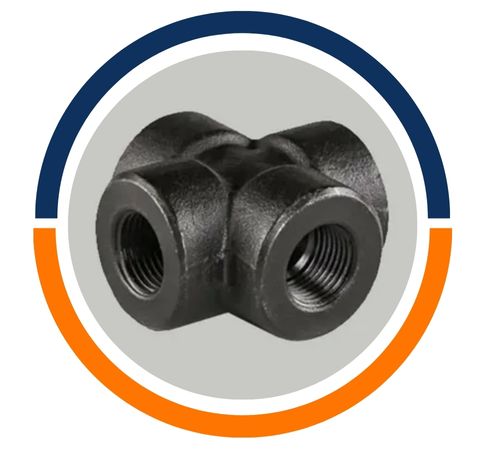

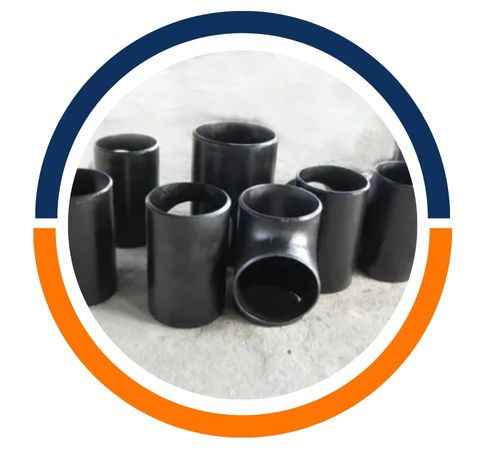

| MSS-SP-83 | Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Carbon Steel A105 High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Forged 45° Short Radius Elbow, CS A105 caps, 3000LB Socket Weld Cross |

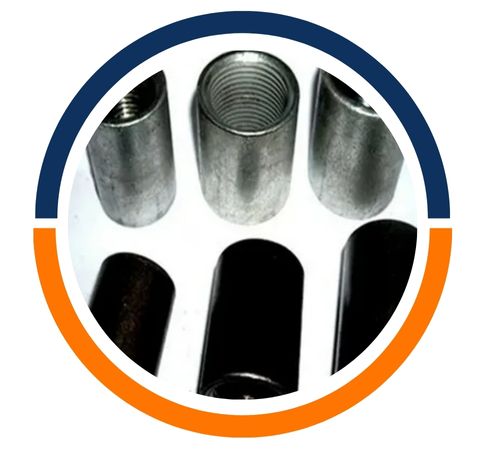

| MSS-SP-95 | Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends | CS A105 Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, Carbon Steel A105 Coupling |
You’ll find Carbon Steel A105 Forged Fittings widely utilized in industries that demand strong and dependable piping connections, such as oil refineries, petrochemical plants, power stations, shipyards, and water treatment facilities. They are primarily used for transporting steam, oil, gas, and fluids in high-pressure and high-temperature settings. Renowned for their strength, corrosion resistance, and versatility, A105 forged fittings offer cost-effective and efficient solutions for critical piping systems in industrial, mechanical, and structural projects.
