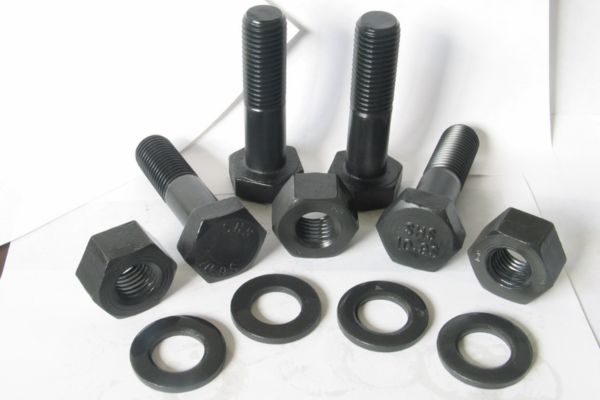

Filiz Steel, a prominent supplier located in Istanbul, Turkey, proudly presents its line of durable and high-strength **Carbon Steel 10.9 Fasteners**, designed specifically for **critical load-bearing and high-torque applications**. These fasteners fall under the ISO property class 10.9 and are crafted from **medium carbon alloy steel** that undergoes a **quenching and tempering** process to deliver outstanding mechanical performance. Thanks to their **remarkable tensile strength and wear resistance**, 10.9 fasteners find their place in **automotive assemblies, heavy machinery, structural steelwork**, and **industrial equipment**, where dependable clamping force is a must.

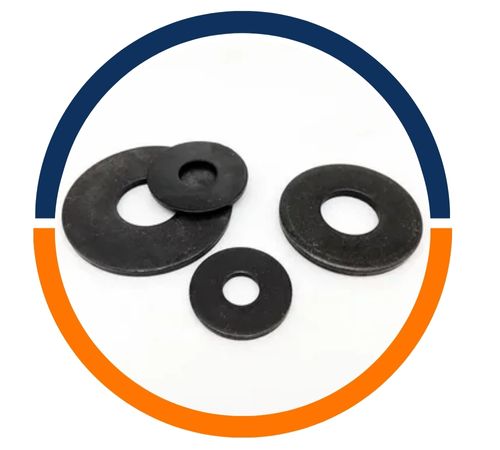

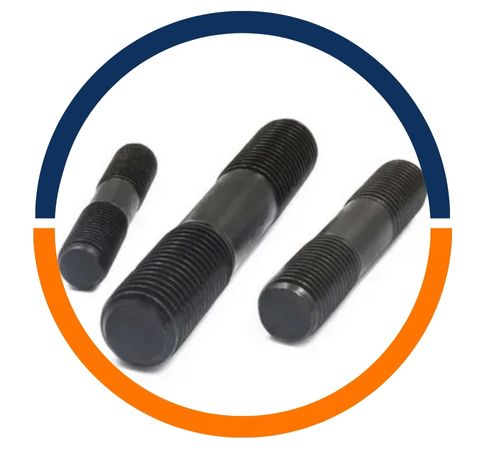

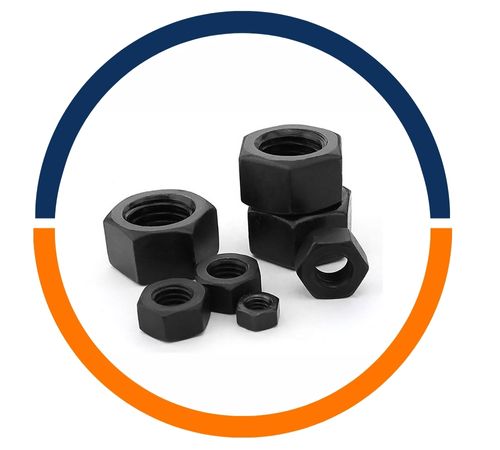

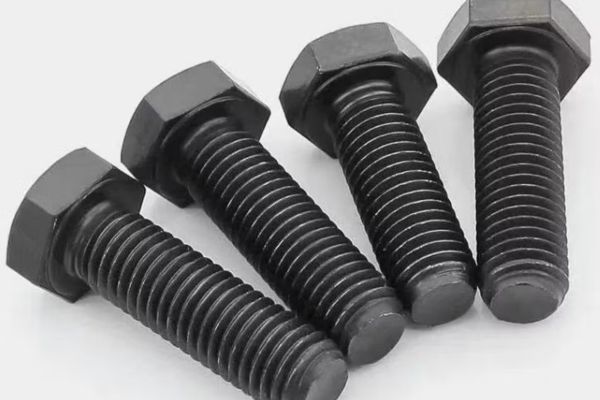

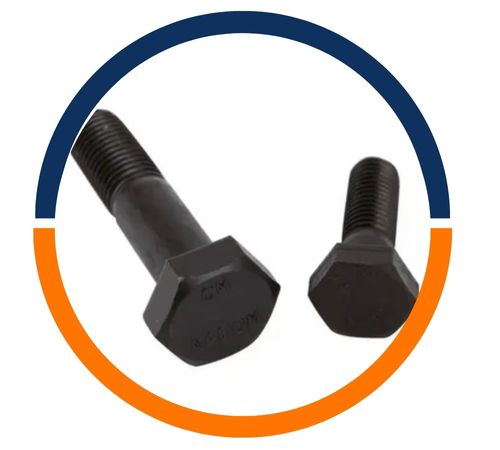

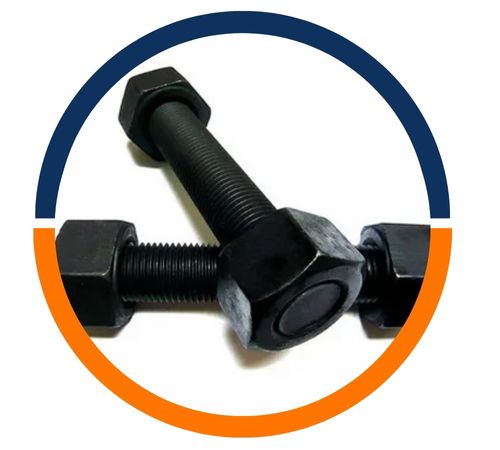

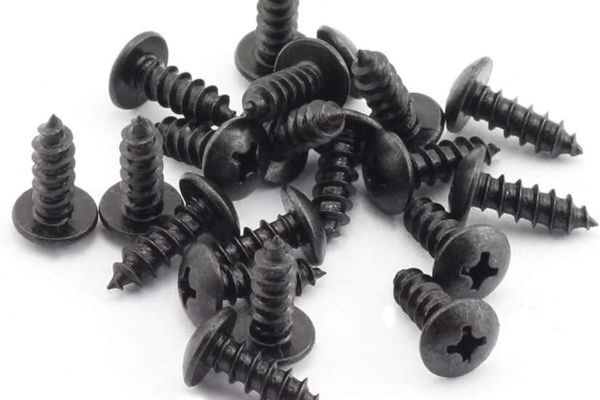

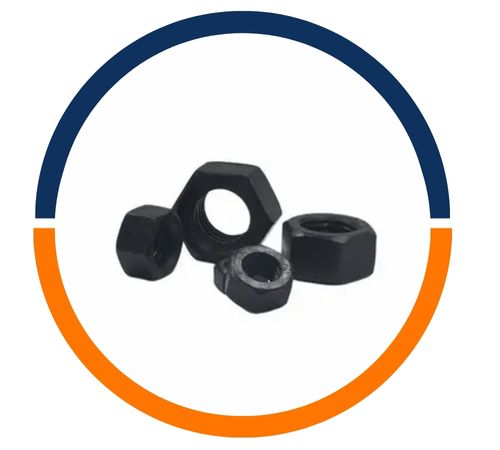

With a **minimum tensile strength of 1040 MPa** and a **yield strength of 940 MPa**, these fasteners provide nearly 30% more strength compared to 8.8 grade fasteners. They come in various forms, including **hex bolts, socket head cap screws, studs, nuts, and washers**, and are often finished with protective coatings like **zinc plating, black oxide, or hot-dip galvanizing** to boost corrosion resistance in tough environments.
| Carbon Steel 10.9 | C | P | S | B |
| 0.20-0.55 | 0.025 | 0.025 | 0.003 |
| Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |
| 5–100 | 830 | 940 | 1040 | C32–39 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
These fasteners are perfect for applications that demand **high-strength bolted joints**, such as **engine components, suspension systems, structural frames, crane assemblies**, and **load-bearing connections** in infrastructure projects. Filiz Steel guarantees that all 10.9 fasteners comply with international standards like **ISO 898-1, DIN, ASTM, and BS**, and provides comprehensive documentation, third-party inspection, and custom sizing options to cater to specific project needs.
| DIA | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 |
| Pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | ||||||||
| Grade A upto length | 40 | 50 | 60 | 80 | 100 | 120 | 140 | 150 | Grade A not applicable to these dia’s | ||||||||||||
| Head Across Flat (S) Nom = Max Min Grade A Grade B | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 | Grade A not applicable to these dia’s | |||||||||
| 6.64 | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | |
| Head Height (K) Nom Tol + or – Grade A Grade B | 2.8 | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | 17 | 18.7 | 21 | 22.5 | 25 | 26 | 28 | 30 | 33 |
| 0.125 | 0.15 | 0.18 | 0.215 | Grade A not applicable to these dia’s | |||||||||||||||||
| 0.2 | 0.24 | 0.29 | 0.35 | 0.42 | 0.5 | ||||||||||||||||
| Across corners e Min Grade A Grade B | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 | Grade A not applicable to these dia’s | ||||||||
| 7.5 | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | |
| Major Dia at thread (min) | 3.838 | 4.826 | 5.794 | 7.76 | 9.732 | 11.701 | 13.682 | 15.682 | 17.623 | 19.623 | 21.623 | 23.577 | 26.577 | 29.522 | 32.522 | 35.465 | 38.465 | 41.437 | 44.437 | 47.399 | 51.399 |
| Major Dia at thread (max) | 3.978 | 4.976 | 5.974 | 7.972 | 9.968 | 11.966 | 13.962 | 15.962 | 17.958 | 19.958 | 21.958 | 23.952 | 26.952 | 29.947 | 32.947 | 35.94 | 38.94 | 41.937 | 44.937 | 47.929 | 51.929 |
| Thread Length (b) For lengths < or = 125mm For lengths > 125mm <= 200mm For lengths > 200mm | 14 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 | 60 | 66 | Not specified as full thread recommended | ||||||
| 20 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | 60 | 66 | 72 | 78 | 84 | 90 | 96 | 102 | 108 | 116 | |
| 33 | 35 | 37 | 41 | 45 | 49 | 53 | 57 | 61 | 65 | 69 | 73 | 79 | 85 | 91 | 97 | 103 | 109 | 115 | 121 | 129 | |
Carbon Steel 10.9 fasteners are extensively applied in high-strength and durable applications. The fasteners are generally used in the automotive sector for mounting engine parts, suspension systems, and chassis structures.They are also used in heavy machinery, construction, and structural frameworks because of their superior tensile strength and stress resistance. They are also suitable for high-pressure and high-temperature conditions and can be used in industrial apparatus, pipelines, and flanges. Their affordability is another aspect that contributes to their flexibility in a wide range of industries.
