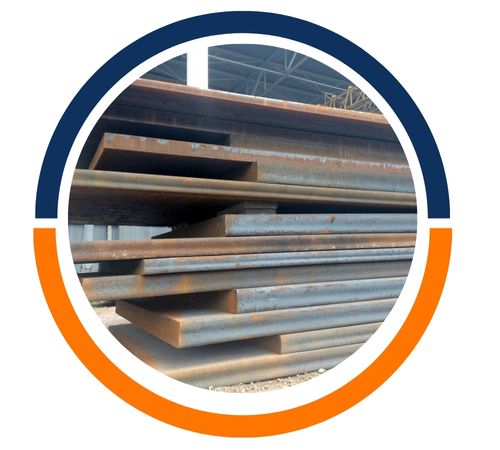

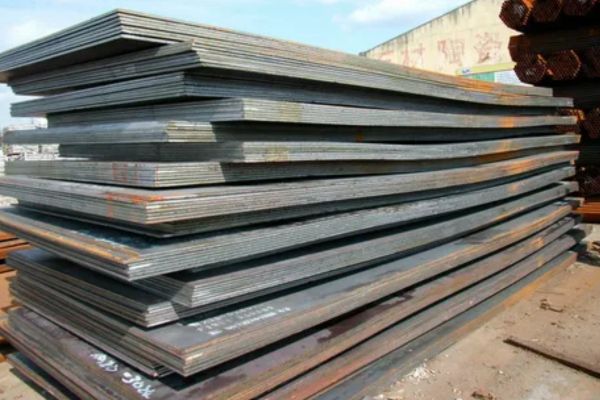

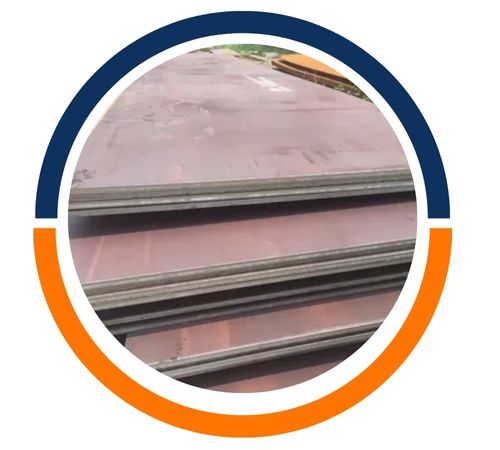

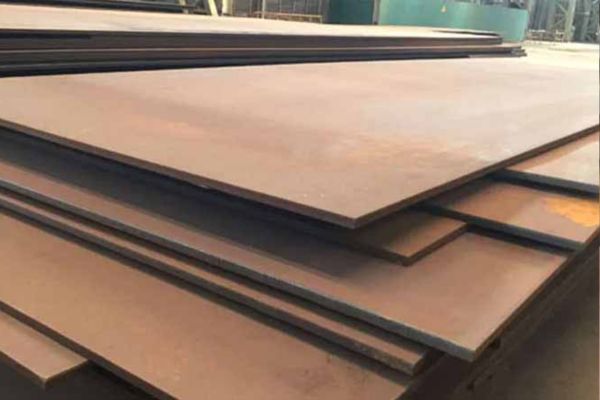

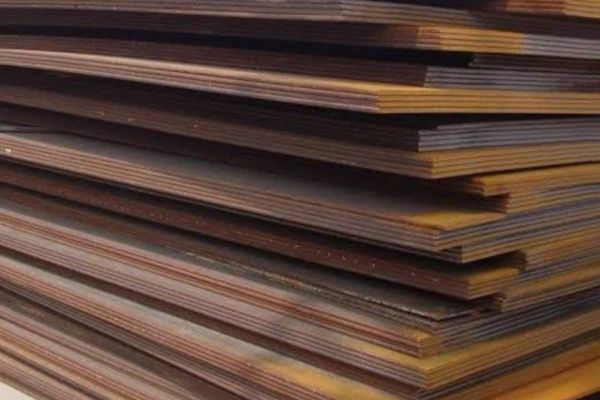

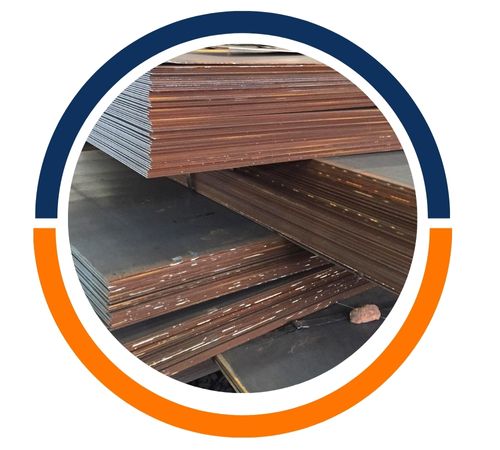

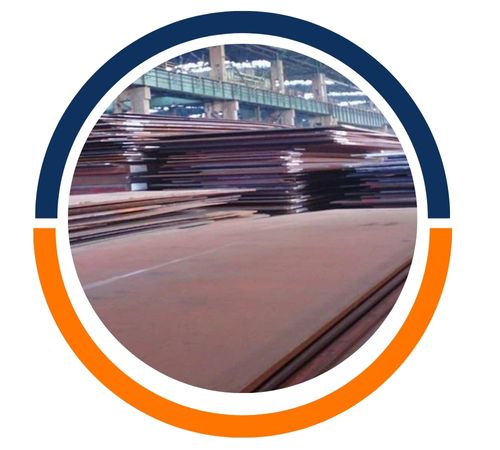

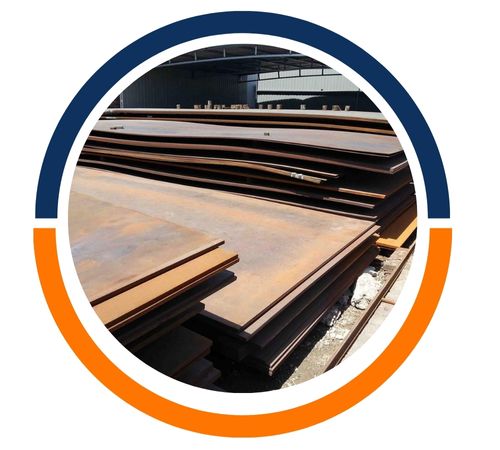

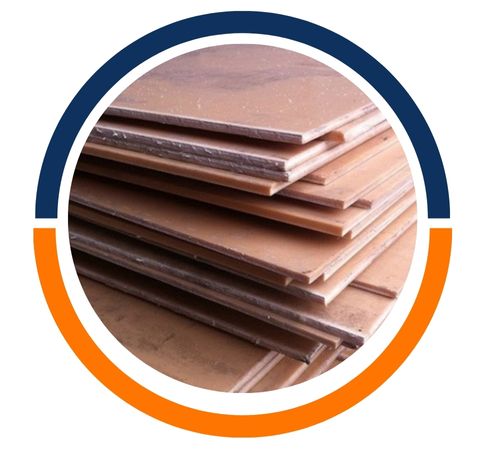

Looking for a reliable source for **BIRNAR 500 Sheets and Plates**? Look no further than Filiz Steel, based in Istanbul, Turkey. They offer tough, high-performance sheets and plates that are perfect for applications requiring **top-notch wear resistance and surface hardness**. BIRNAR 500 is a **wear-resistant steel grade** that stands shoulder to shoulder with other quenched and tempered steels like **Hardox® 500 or Quard® 500**, specifically designed to handle **extreme abrasion and impact**. These plates find their place in industries such as **mining, construction, earthmoving, cement, and material handling**, where durability and low maintenance are key.
With an average **Brinell hardness of 500 HBW**, BIRNAR 500 plates are crafted through precise **quenching and tempering processes**, ensuring they excel in resisting sliding and gouging wear. Even with their impressive hardness, the steel retains **sufficient toughness and formability**, making it easy to bend, cut, and weld using standard methods—just remember to take the right precautions! Filiz Steel provides these sheets and plates in a range of **thicknesses (usually from 6mm to 50mm)** and can customize dimensions to fit your fabrication and repair needs.
Item: BRINAR 500
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| Thickness | Hardness HBW | Typical yield strength MPa, |
| mm | (min – max 1) | not guaranteed |
| 4 – 32 | 470 – 530 | 1250 |
| (32) – 103 | 450 – 540 | 1250 |
| Plate | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| THICKNESS MM | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | TYPV | TYPV |
| 4-13 | 0.27 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 0.25 | 0.25 | 0.004 | 0.49 | 0.34 |
| (13) -32 | 0.29 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 0.50 | 0.30 | 0.004 | 0.62 | 0.41 |
| (32) -40 | 0.29 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 1.00 | 0.60 | 0.004 | 0.64 | 0.43 |
| (40) -80 | 0.30 | 0.7 | 1.6 | 0.025 | 0.01 | 1.50 | 1.50 | 0.60 | 0.004 | 0.74 | 0.46 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
