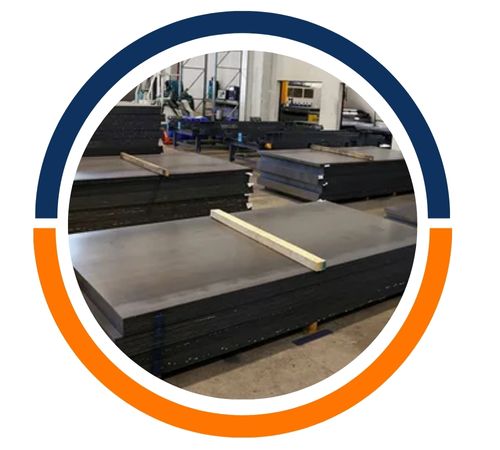

Filiz Steel, based in Istanbul, Turkey, has made a name for itself as a top manufacturer and supplier of high-quality ASME SA 387 Grade 91 Class 1/2 Sheets and Plates, catering to both local and global clients. These alloy steel plates are designed to perform exceptionally well under high-pressure and high-temperature conditions, making them essential in critical industries. Filiz Steel is committed to meeting international standards, ensuring that their products boast remarkable strength, durability, and reliability. With a strong emphasis on customer satisfaction, prompt delivery, and competitive pricing, the company has earned a solid reputation as a trustworthy supplier of ASME SA 387 Grade 91 Class 1/2 Sheets and Plates.
ASME SA 387 Grade 91 Class 1 & 2 Sheets and Plates are chromium-molybdenum steel plates utilized for high-temperature and pressure services. These plates contain 9% Chromium and 1% Molybdenum, which offer higher strength, oxidation resistance, and improved toughness at elevated temperatures. These plates are most suitable for applications that require higher thermal stability and corrosion resistance, and thus are most suitable for demanding industrial applications.
| Standard | ASTM A387 / ASME SA387 |
|---|---|
| Width | 1000mm-3000mm |
| Thickness | 1.0mm – 200mm |
| Production | Hot-Rolled (HR) / Cold-Rolled (CR) |
| Grade | C | Ni | Mn | S | V | Al | Si | Nb | Cr | Mo | Nitrogen | P |
| A387 GR.91 CL.1 & 2 | 0.06-0.15 max | 0.43 max | 0.25-0.66 max | 0.012 max | 0.16-0.27 max | 0.05 max | 0.18-0.56 max | 0.05-0.11 max | 7.90-9.60 max | 0.80-1.10 max | 0.025-0.080 max | 0.025 max |
| Grade | A387 GR.91 CL.1 &2 | |||
| A387 GR.91 CL.1 &2 | Thickness mm | Yield Min Mpa | Tensile Mpa | Elongation Min % |
| t≦50 | 415 | 585-760 | 18 | |
| 50<t≦200 | – | – | – | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
ASME SA 387 Grade 91 Class 1/2 Sheets and Plates are made from chromium-molybdenum-vanadium alloy steels, typically featuring 9% chromium and 1% molybdenum, along with vanadium and niobium. This unique composition provides excellent creep strength, oxidation resistance, and thermal stability. Class 1 plates offer a tensile strength ranging from 585 to 760 MPa and a yield strength of 415 MPa, while Class 2 plates boast even higher mechanical properties for more demanding applications. These plates are known for their outstanding toughness, weldability, and long-lasting performance at high temperatures. Their carefully balanced chemical and mechanical properties make them perfect for heavy-duty pressure vessels, boilers, and critical components that operate in elevated temperature environments.
ASME SA 387 Grade 91 Class 1/2 Sheets and Plates find extensive use in industries that require materials capable of withstanding extreme heat and pressure. They are particularly popular in power generation plants, especially in boilers, steam turbines, and heat exchangers, thanks to their excellent creep resistance and strength. The petrochemical and oil and gas sectors also rely on these plates for pressure vessels, reactors, and high-temperature pipelines. Their ability to resist thermal stress and oxidation makes them ideal for refineries and chemical plants. With a long service life, durability, and reliability, these plates are a go-to choice for demanding applications.
