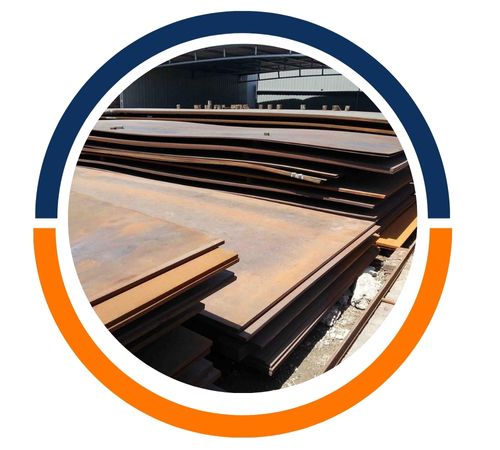

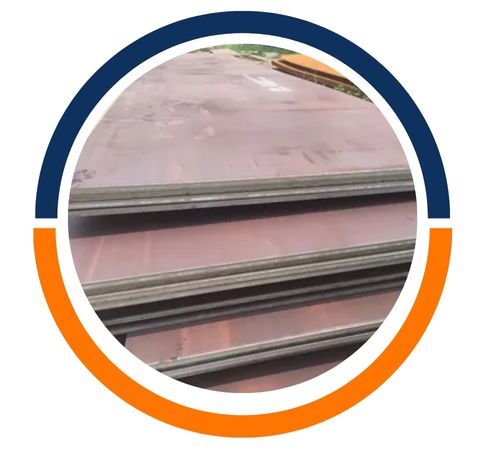

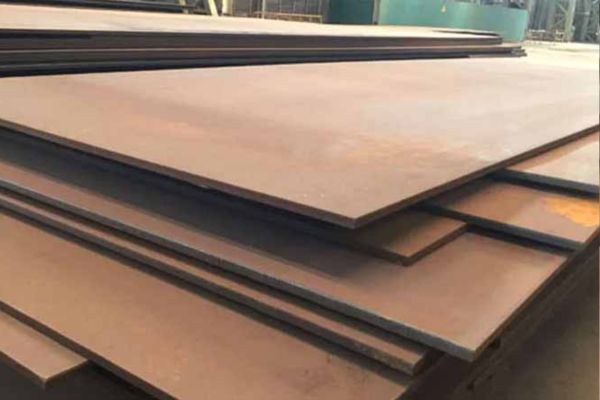

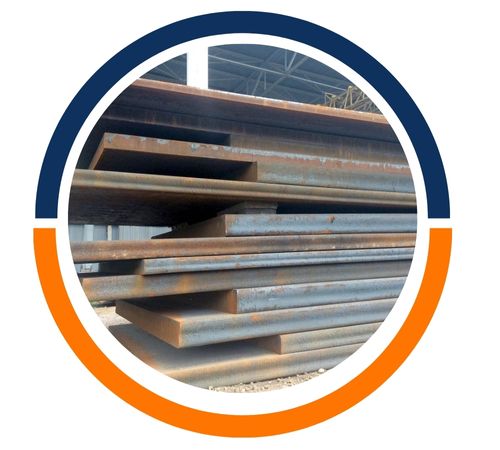

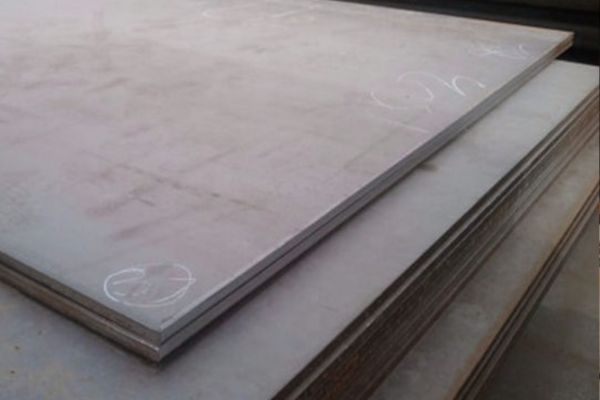

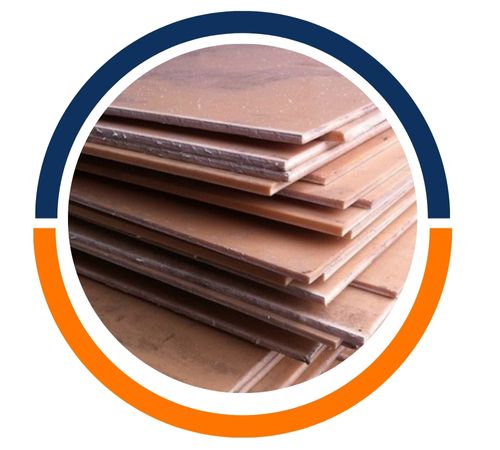

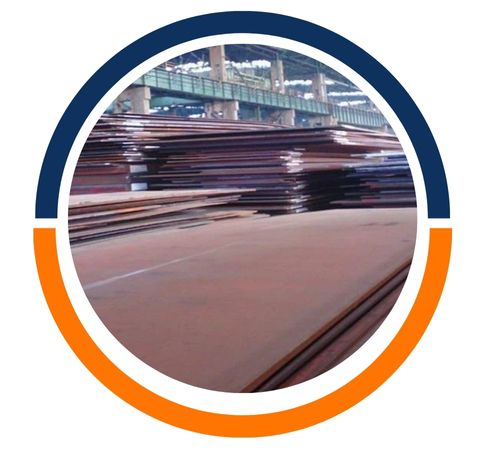

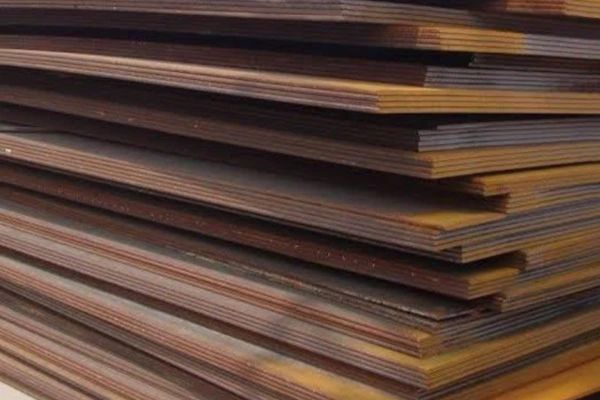

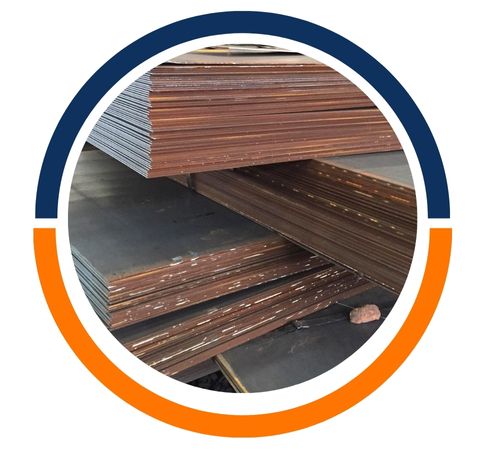

Filiz Steel, a well-respected manufacturer and supplier based in Istanbul, Turkey, specializes in high-quality ARCELOR 500 Sheets and Plates. These products are crafted to provide outstanding strength and resistance to abrasion. Thanks to advanced metallurgical techniques, these plates are known for their impressive hardness, durability, and long-lasting performance even in tough industrial settings. Filiz Steel guarantees that each ARCELOR 500 plate adheres to strict international standards, ensuring reliability and precision for critical applications. With their exceptional ability to withstand heavy wear and impact, these plates are in high demand across industries like mining, construction, quarrying, and heavy machinery manufacturing, where durability is essential for operational success.
ARCELOR 500 Sheets and Plates are made with a blend of carbon, manganese, chromium, nickel, and molybdenum, which contribute to their remarkable hardness and toughness. With a nominal hardness rating of 500 HBW, these plates offer excellent resistance to abrasion and wear, even in the most extreme conditions. They boast high tensile strength, impressive yield properties, and strong impact resistance, ensuring they can handle heavy-duty tasks. Despite their toughness, ARCELOR 500 plates are still easy to weld and can be formed into complex shapes, making them a great choice for industries that need both strength and wear resistance.
Item: ARCELOR 500
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| Plate Thickness MM | %C Max | %Mn Max | %P Max | %S Max | %SI Max | %Cr Max | %Ni Max | %Mo Max | B Max | CE Max | PCM Max |
| 6.0 – 20.0 | 0.60 | 0.41 | |||||||||
| 21.0 – 40.0 | 0.30 | 1.60 | 0.025 | 0.010 | 0.70 | 1.50 | 1.50 | 0.70 | 0.040 | 0.65 | 0.43 |
| 41.0 – 50.0 | 0.74 | 0.48 |
| Hardness HBW | Typical yield strength MPa, | |
| mm | (min – max 1) | not guaranteed |
| 4 – 32 | 470 – 530 | 1250 |
| (32) – 103 | 450 – 540 | 1250 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
ARCELOR 500 Sheets and Plates find extensive use in industries that require top-notch wear resistance and strength. In mining and quarrying, they are commonly used in dump truck bodies, crushers, liners, and earthmoving equipment due to their exceptional durability. The construction industry utilizes them in concrete mixers, chutes, hoppers, and asphalt plants. In material handling, they are integral to conveyor systems, silos, and feeders, ensuring a long service life. Heavy machinery manufacturers rely on these plates for their robust performance, making them a go-to choice for applications where durability is key.
