Alloy Steel P23 Pipes are high-strength, corrosion-resistant steel pipes manufactured by Filiz Steel in Istanbul, Turkey. Made from premium alloy steel with elements like chromium, molybdenum, and nickel, P23 Pipes are designed to handle high pressure, heat, and challenging industrial conditions. They are precision-engineered to meet international standards, ensuring durability, dimensional accuracy, and reliable performance. P23 Pipes are widely used in industries where safety and strength are critical. Their superior mechanical properties make them ideal for oil & gas, petrochemical, power generation, and heavy engineering applications, providing long-lasting and efficient performance.
Alloy Steel P23 Pipes are made from carbon steel alloyed with 2% chromium, 1% molybdenum, and small amounts of nickel, manganese, and silicon. This composition gives them high tensile strength (typically 550–700 MPa), excellent yield strength, and superior toughness. P23 Pipes resist wear, deformation, and stress under high temperature and pressure. They also have good creep and corrosion resistance, making them suitable for demanding environments. These mechanical properties ensure reliable performance in piping systems, pressure vessels, and industrial frameworks where high durability and safety are required.
| Alloy Steel ASTM A335 P23 Size | : | 1/8NB TO 24NB IN |
| ASTM A335 P23 Alloy Steel Standards | : | ASTM A 335, ASME SA 335, ANSI B36.10 |

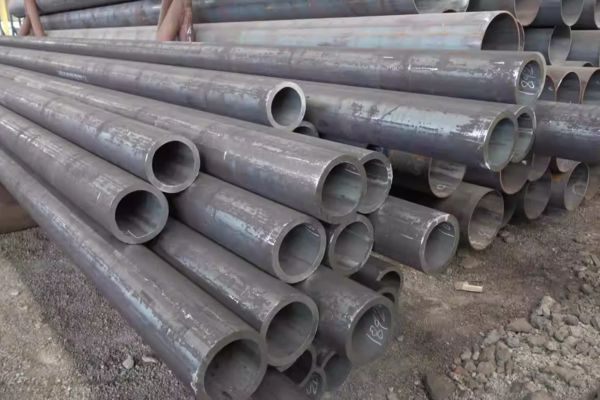

| Alloy Steel ASTM A335 P23 Type | : | Seamless |
| ASTM A335 P23 Alloy Steel Pipe Specialized in | : | Large Diameter Size |
| Alloy Steel P23 Pipes Outer Dimensions | : | 19.05mm – 114.3mm |
| ASTM A335 P23 Alloy Steel Pipe Wall Thickness | : | 2.0mm – 14 mm |
| Alloy Steel P23 Pipe Length | : | max 16000mm |
| Alloy Steel P23 Pipes Schedule | : | Schedule 20 – Schedule XXS (heavier on request) up to 250 mm thk. |

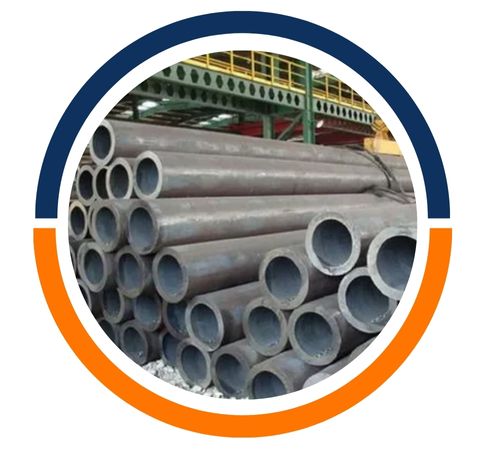

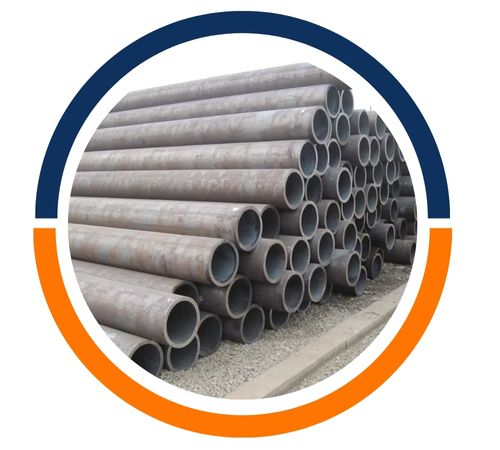

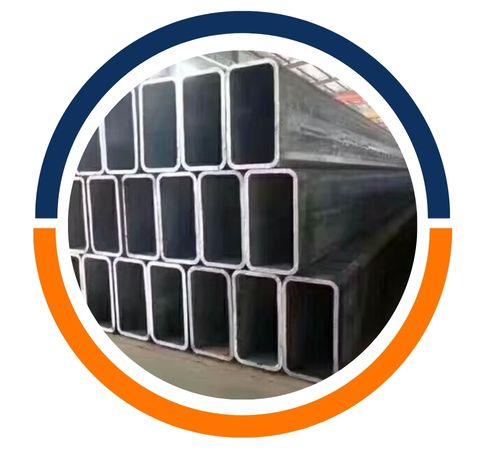

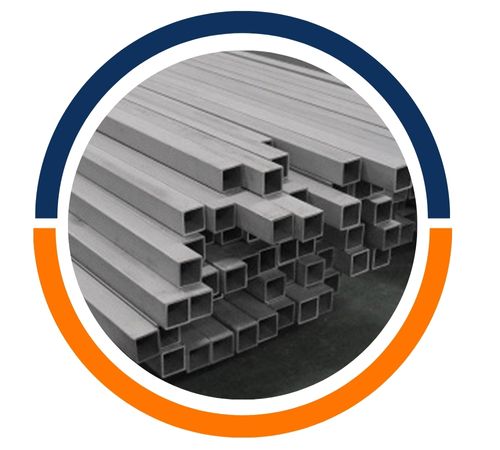

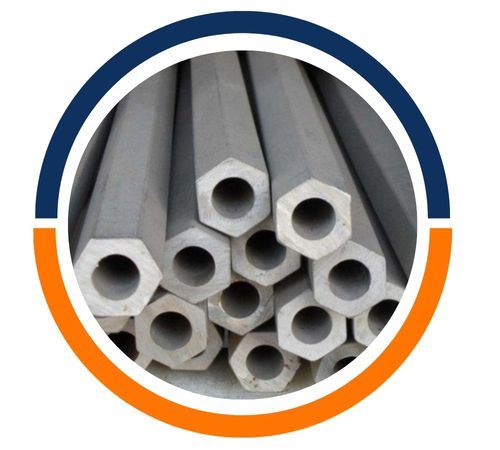

| Alloy Steel P23 Pipes Form | : | Round, Square, Rectangular, Hydraulic Etc. |
| ASTM A335 P23 Alloy Steel Pipes Length | : | Single Random, Double Random & Cut Length. |
| Alloy Steel P23 Pipes End | : | Plain End, Beveled End, Treaded |
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % | V, % | Nb, % | B,% | N, % | Al, % | W, % |
| 0.04-0.10 | 0.1-0.6 | 0.03 max | 0.01 max | 0.5 max | 1.9-2.6 | 0.05-0.30 | 0.20-0.30 | 0.02-0.08 | 0.0005-0.006 | 0.03 max | 0.03 max | 1.45-1.75 |
| Tensile Strength, MPa | Yield Strength, MPa | Elongation, % |
| 510 min | 400 min | 20 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Filiz Steel is a major manufacturer and a supplier of premium Alloy Steel P23 pipe in Istanbul, the Turkey. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot | Standard to XXHY | Schedule Pipe # | Section Modulus | Gallon Capacity Per Linear Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 | STD | 40 | .0407 | .0158 |
| 0.147 | 0.546 | 1.09 | XHY | 80 | .0478 | .0122 | ||
| 0.188 | 0.464 | 1.31 | 160 | .0528 | .0088 | |||
| 0.294 | 0.252 | 1.72 | XXHY | .0577 | .0026 | |||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 | STD | 40 | .0705 | .0277 |
| 0.154 | 0.742 | 1.48 | XHY | 80 | .0853 | .0225 | ||
| 0.219 | 0.612 | 1.95 | 160 | .1006 | .0153 | |||
| 0.308 | 0.434 | 2.44 | XXHY | .1103 | .0077 | |||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 | STD | 40 | .1328 | .0449 |
| 0.179 | 0.957 | 2.17 | XHY | 80 | .1606 | .0374 | ||
| 0.250 | 0.815 | 2.85 | 160 | .1904 | .0271 | |||
| 0.358 | 0.599 | 3.66 | XXHY | .2136 | .0146 | |||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 | STD | 40 | .2346 | .0777 |
| 0.191 | 1.278 | 3.00 | XHY | 80 | .2913 | .0666 | ||
| 0.250 | 1.160 | 3.77 | 160 | .3421 | .0549 | |||
| 0.382 | 0.896 | 5.22 | .4110 | .0328 | ||||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 | STD | 40 | .3262 | .1058 |
| 0.200 | 1.500 | 3.63 | XHY | 80 | .4118 | .0918 | ||
| 0.281 | 1.338 | 4.86 | 160 | .5079 | .0730 | |||
| 0.400 | 1.100 | 6.41 | .5977 | .0494 | ||||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 | 10 | .4205 | .1898 | |
| 0.154 | 2.067 | 3.66 | STD | 40 | .5606 | .1743 | ||
| 0.218 | 1.939 | 5.03 | XHY | 80 | .7309 | .1534 | ||
| 0.250 | 1.875 | 5.68 | .8045 | .1434 | ||||
| 0.281 | 1.813 | 6.29 | .8666 | .1344 | ||||
| 0.344 | 1.687 | 7.47 | 160 | .9806 | .1161 | |||
| 0.436 | 1.503 | 9.04 | XXHY | 1.1043 | .0922 | |||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 | 10 | .6870 | .2833 | |
| 0.203 | 2.469 | 5.80 | STD. | 40 | 1.0640 | .2487 | ||
| 0.216 | 2.443 | 6.14 | 1.1169 | .2435 | ||||
| 0.250 | 2.375 | 7.02 | 1.2468 | .2301 | ||||
| 0.276 | 2.323 | 7.67 | XHY | 80 | 1.3386 | .2202 | ||
| 0.375 | 2.125 | 10.02 | 160 | 1.6371 | .1842 | |||
| 0.552 | 1.771 | 13.71 | XXXHY | 1.9971 | .1280 | |||
| 3 | 3.50 | 0.120 | 3.260 | 4.34 | 1.0411 | .4336 | ||
| 0.156 | 3.188 | 5.58 | 1.3122 | .4147 | ||||
| 0.172 | 3.156 | 6.12 | 1.4265 | .4064 | ||||
| 0.188 | 3.124 | 6.66 | 1.5342 | .3984 | ||||
| 0.216 | 3.068 | 7.58 | STD. | 40 | 1.7241 | .3840 | ||
| 0.250 | 3.000 | 8.69 | 1.9372 | .3672 | ||||
| 0.281 | 2.938 | 9.67 | 2.1207 | .3521 | ||||
| 0.300 | 2.900 | 10.26 | XHY | 80 | 2.2253 | .3431 | ||
| 0.438 | 2.624 | 14.34 | 160 | 2.8774 | .2811 | |||
| 0.600 | 2.300 | 18.6 | XXHY | 3.4243 | .2158 | |||
| 3 1/2 | 4.0 | 0.120 | 3.760 | 4.98 | 10 | 1.3776 | .5768 | |
| 0.226 | 3.548 | 9.12 | STD. | 140 | 2.3939 | .5136 | ||
| 0.250 | 3.500 | 10.02 | 2.6001 | .4998 | ||||
| 0.281 | 3.438 | 11.17 | 2.8562 | .4821 | ||||
| 0.318 | 3.364 | 12.52 | XHY | 80 | 3.1400 | .4617 | ||
| 0.636 | 2..728 | 22.87 | XXHY | 4.8795 | .3085 | |||
| 4 | 4.5 | 0.120 | 4.260 | 5.62 | 10 | 1.7612 | .7404 | |
| 0.156 | 4.188 | 7.24 | 2.2354 | .7156 | ||||
| 0.188 | 4.124 | 8.67 | 2.6296 | .6942 | ||||
| 0.203 | 4.094 | 9.32 | 2.8173 | .6838 | ||||
| 0.219 | 4.062 | 10.02 | 3.0184 | .6725 | ||||
| 0.237 | 4.026 | 10.80 | STD. | 40 | 3.2145 | .6613 | ||
| 0.250 | 4.000 | 11.36 | 3.3611 | .6528 | ||||
| 0.281 | 3.938 | 12.67 | 60 | 3.7021 | .6326 | |||
| 0.312 | 3.876 | 13.97 | 4.0273 | .6126 | ||||
| 0.337 | 3.826 | 15.00 | XHY | 80 | 4.2713 | .5972 | ||
| 0.438 | 3.624 | 19.02 | 120 | 5.1790 | .5361 | |||
| 0.531 | 3.438 | 22.53 | 160 | 5.8997 | .4822 | |||
| 0.674 | 3.152 | 27.57 | XXHY | 6.7927 | .4054 | |||
| 5 | 5.563 | 0.188 | 5.187 | 10.80 | 4.1161 | 1.0979 | ||
| 0.219 | 5.125 | 12.51 | 4.7279 | 1.0716 | ||||
| 0.258 | 5.047 | 14.63 | STD. | 40 | 5.4500 | 1.0391 | ||
| 0.281 | 5.001 | 15.87 | 5.8644 | 1.0204 | ||||
| 0.312 | 4.939 | 17.51 | 6.4074 | .99647 | ||||
| 0.344 | 4.875 | 19.19 | 6.9358 | .9696 | ||||
| 0.375 | 4.813 | 20.80 | XHY | 80 | 7.4300 | .9449 | ||
| 0.500 | 4.563 | 27.06 | 120 | 9.2534 | .8495 | |||
| 0.625 | 4.313 | 32.99 | 160 | 10.7976 | .7590 | |||
| 0.750 | 4.063 | 38.59 | XXHY | 12.0954 | .6734 | |||
| 6 | 6.625 | 0.109 | 6.407 | 7.59 | 5 | 3.5769 | 1.6748 | |
| 0.134 | 6.357 | 9.30 | 10 | 4.3475 | 1.6488 | |||
| 0.156 | 6.313 | 10.79 | 5.0107 | 1.6260 | ||||
| 0.188 | 6.249 | 12.94 | 5.9351 | 1.5937 | ||||
| 0.203 | 6.219 | 13.94 | 6.3804 | 1.5780 | ||||
| 0.219 | 6.187 | 15.00 | 6.8261 | 1.5620 | ||||
| 0.250 | 6.125 | 17.04 | 7.6905 | 1.5306 | ||||
| 0.280 | 6.065 | 18.99 | STD. | 40 | 8.4958 | 1.5008 | ||
| 0.312 | 6.001 | 21.06 | 9.3416 | 1.4688 | ||||
| 0.344 | 5.937 | 23.10 | 10.111 | 1.4391 | ||||
| 0.375 | 5.875 | 25.05 | 10.893 | 1.4082 | ||||
| 0.432 | 5.761 | 28.60 | XHY | 80 | 12.224 | 1.3541 | ||
| 0.500 | 5.625 | 32.74 | 13.711 | 1.2909 | ||||
| 0.562 | 5.501 | 36.43 | 120 | 14.9806 | 1.2346 | |||
| 0.625 | 5.375 | 40.09 | 16.1821 | 1.1787 | ||||
| 0.719 | 5.187 | 45.39 | 160 | 17.8243 | 1.0977 | |||
| 0.864 | 4.897 | 53.21 | XXHY | 20.025 | .9784 | |||
| 1.000 | 4.625 | 60.13 | 21.7719 | .8727 | ||||
| 1.125 | 4.375 | 66.14 | 23.1237 | .7809 |
Alloy Steel P23 Pipes are widely used in oil & gas, petrochemical, power plants, and chemical processing industries. They are ideal for high-pressure pipelines, boilers, heat exchangers, and pressure vessels where strength, durability, and corrosion resistance are essential. P23 Pipes are also used in industrial equipment, refineries, and power generation systems, performing reliably under high temperature, pressure, and mechanical stress. Their toughness, wear resistance, and dimensional precision make them a preferred choice for engineers and manufacturers. With Alloy Steel P23 Pipes, industrial systems achieve safe, long-lasting, and efficient operation even in challenging and demanding environments.
Filiz Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Istanbul, Turkey.
