Alloy Steel P11 Pipes are high-strength, heat-resistant pipes manufactured by Filiz Steel in Istanbul, Turkey. Made from premium alloy steel with elements like chromium and molybdenum, P11 Pipes are designed to withstand high pressure, temperature, and demanding industrial conditions. These pipes are precision-engineered to meet international standards, ensuring durability, dimensional accuracy, and reliable performance. They are widely used in industries where safety, toughness, and long-lasting performance are essential. P11 Pipes are ideal for power plants, petrochemical industries, oil & gas pipelines, and boiler applications, providing efficient and safe operation under challenging conditions.
Alloy Steel P11 Pipes are composed of carbon steel alloyed with 1% chromium, 0.5% molybdenum, and small amounts of manganese and silicon. This composition provides high tensile strength (typically 550–700 MPa), excellent yield strength, and superior toughness. P11 Pipes are resistant to wear, deformation, and stress under high temperature and pressure. They also offer good creep and corrosion resistance, making them suitable for demanding environments. These mechanical properties ensure reliable performance in piping systems, pressure vessels, and industrial frameworks where high durability, safety, and strength are required.

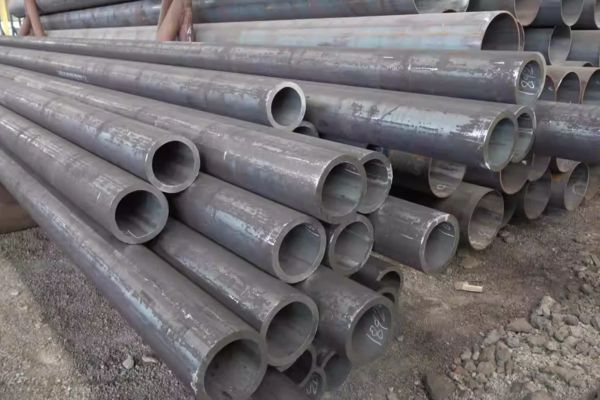

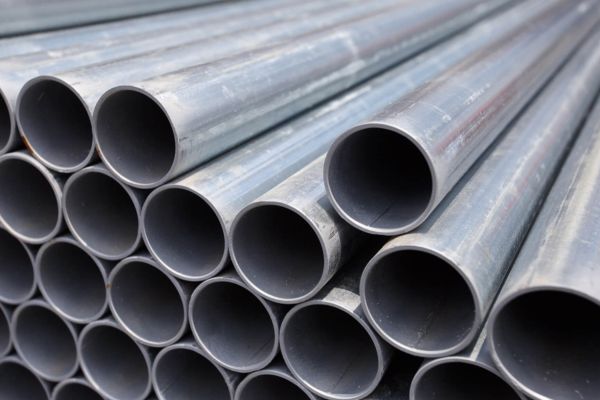

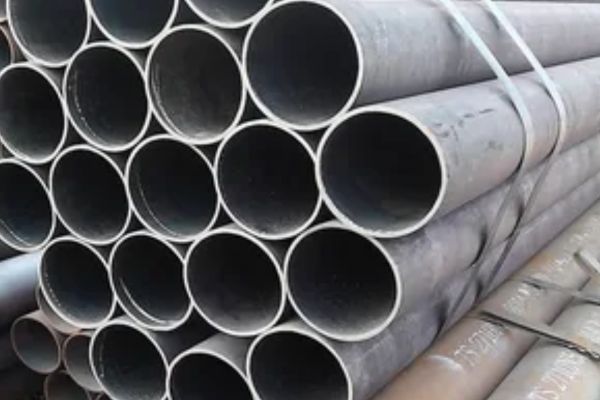

| Type | Seamless / ERW / Welded / Fabricated |
| Standard | ASTM A335 P11, SA335 P11 (with IBR Test Certificate) |
| Craft | Cold rolled and Cold drawn |
| Length | Standard Double & In Cut length also. |
| Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Size | 1/2” NB to 36” NB |
| Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Specialized in | Large Diameter ASTM A335 P11 Pipe |

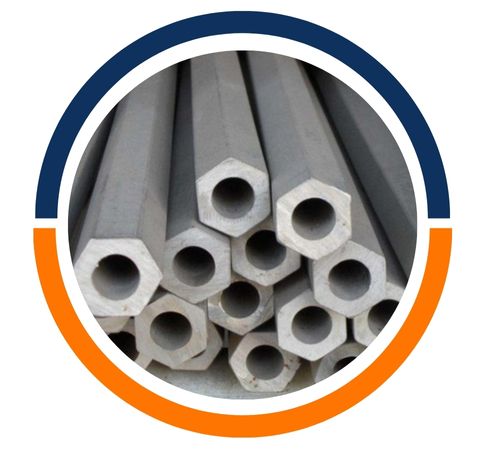

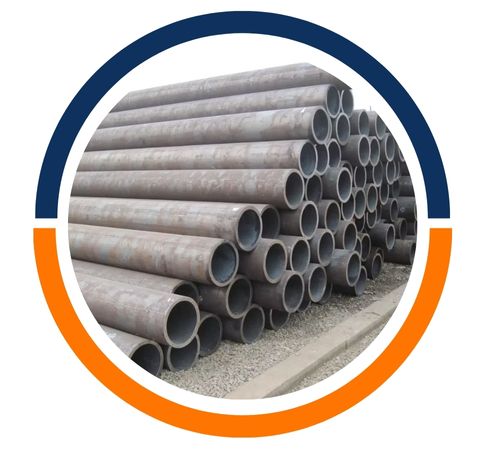

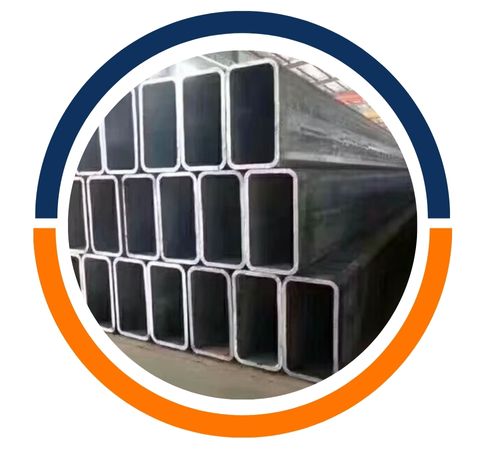

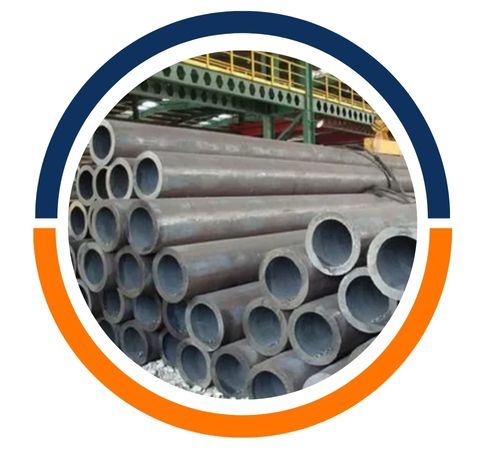

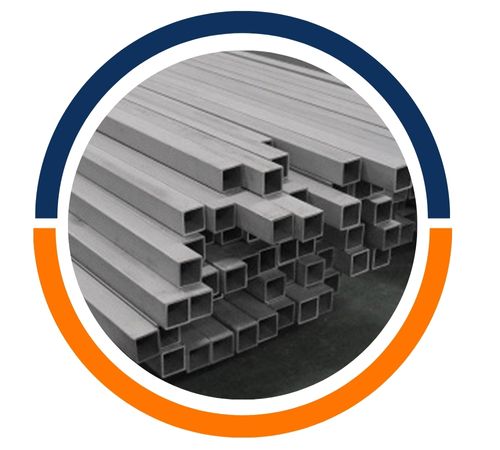

| available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| Application | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
| End | Plain End, Beveled End, Treaded |
| Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Thickness | 3-12mm |
| Alloy Steel P11 | C | Cr | Mn | Mo | P | S | Si |
| 0.05 – 0.15 | 1.00 – 1.50 | 0.30 – 0.60 | 0.44 – 0.65 | 0.025 max | 0.025 max | 0.50 – 1.00 |
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 415 min | 205 min | 30 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Filiz Steel is a major manufacturer and a supplier of premium Alloy Steel P11 pipe in Istanbul, the Turkey. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
| ASTM | ASME | Equivalent Material | JIS G 3458 | UNS | BS | DIN | ISO | ABS | NK | LRS |
|---|---|---|---|---|---|---|---|---|---|---|
| A335 P11 | SA335 P11 | T11 | STPA 23 | K11597 | 3604 P1 621 | – | – | ABS 11 | KSTPA 23 | – |
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| ASTM A335 P11 Pipe Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 |
| 0.147 | 0.546 | 1.09 | ||
| 0.188 | 0.464 | 1.31 | ||
| 0.294 | 0.252 | 1.72 | ||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 |
| 0.154 | 0.742 | 1.48 | ||
| 0.219 | 0.612 | 1.95 | ||
| 0.308 | 0.434 | 2.44 | ||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 |
| 0.179 | 0.957 | 2.17 | ||
| 0.250 | 0.815 | 2.85 | ||
| 0.358 | 0.599 | 3.66 | ||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 |
| 0.191 | 1.278 | 3.00 | ||
| 0.250 | 1.160 | 3.77 | ||
| 0.382 | 0.896 | 5.22 | ||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 |
| 0.200 | 1.500 | 3.63 | ||
| 0.281 | 1.338 | 4.86 | ||
| 0.400 | 1.100 | 6.41 | ||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 |
| 0.154 | 2.067 | 3.66 | ||
| 0.218 | 1.939 | 5.03 | ||
| 0.250 | 1.875 | 5.68 | ||
| 0.281 | 1.813 | 6.29 | ||
| 0.344 | 1.687 | 7.47 | ||
| 0.436 | 1.503 | 9.04 | ||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 |
| 0.203 | 2.469 | 5.80 | ||
| 0.216 | 2.443 | 6.14 | ||
| 0.250 | 2.375 | 7.02 | ||
| 0.276 | 2.323 | 7.67 | ||
| 0.375 | 2.125 | 10.02 | ||
| 0.552 | 1.771 | 13.71 |
Alloy Steel P11 Pipes are widely used in power plants, petrochemical industries, oil & gas refineries, and chemical processing units. They are ideal for high-pressure pipelines, boilers, heat exchangers, and pressure vessels where durability, corrosion resistance, and heat tolerance are essential. P11 Pipes are also used in industrial equipment, structural frameworks, and heavy machinery for reliable and long-lasting performance under extreme temperature and pressure conditions. Their toughness, wear resistance, and dimensional precision make them a preferred choice for engineers and manufacturers. With Alloy Steel P11 Pipes, industrial systems achieve safe, efficient, and long-lasting operation in challenging environments.
