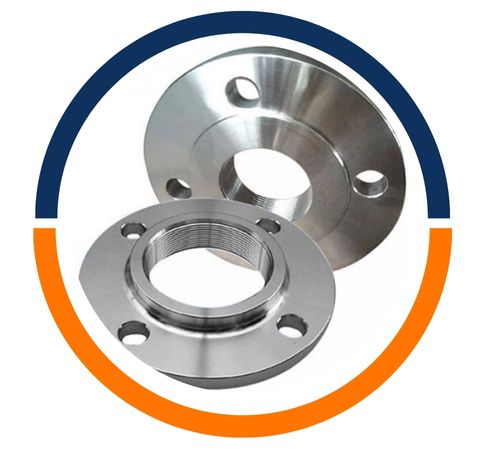

Filiz Steel, a trusted manufacturer and supplier from Istanbul, Turkey, offers high-quality Alloy Steel F1 Flanges designed for strength, durability, and reliable performance. These flanges are precision-made to connect pipes, valves, and machinery components securely, ensuring leak-free and safe operations. Filiz Steel ensures every F1 Flange meets strict quality standards, providing consistent performance even in demanding industrial environments. With excellent resistance to pressure, heat, and corrosion, Alloy Steel F1 Flanges are widely used in industries like oil and gas, power plants, chemical processing, and construction, offering long-lasting, dependable service.
Alloy Steel F1 Flanges are made from alloyed steel containing carbon, chromium, nickel, molybdenum, and manganese. This composition provides excellent strength, toughness, and resistance to corrosion and high temperatures. These flanges have high tensile and yield strength, making them capable of withstanding pressure and heavy mechanical stress. They are also easily weldable and machineable, ensuring proper fitting and installation. The combination of durability, hardness, and flexibility allows Alloy Steel F1 Flanges to perform reliably in critical piping and machinery systems where safety and longevity are essential.
Alloy Steel Flanges Specification : ASTM A182 / ASME SA182
Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN Flanges : DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges : JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges : BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
| Grade | C | Mn | P | S | Si | Ni | Ch | Mo | Cb |
|---|---|---|---|---|---|---|---|---|---|
| F1 | 0.28 | 0.60 – 0.90 | 0.045 | 0.045 | 0.15 – 0.30 | – | – | 0.44-0.65 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| F1 | 485 | 275 | 20 | – | 143-192 |
| STANDARD | DIN WERKSTOFF NR. | DIN | UNS |
| ASTM A182 F1 Flanges | 1.5415 | 15M03 | K12822 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Size in (Inches) | Size in (Millimeter) | Number of Bolts | Bolt Size Of UNC | Length Of RF Stud | Size Of ISO Stud | Length Of Machine Bolts |
|---|---|---|---|---|---|---|
| Class 300 Flange | ||||||
| 1/2 | 15 | 4 | 1/2 | 65 | M14 | 55 |
| 3/4 | 20 | 4 | 5/8 | 75 | M16 | 65 |
| 1 | 25 | 4 | 5/8 | 75 | M16 | 65 |
| 1 1/4 | 32 | 4 | 5/8 | 85 | M16 | 70 |
| 1 1/2 | 40 | 4 | 3/4 | 90 | M20 | 75 |
| 2 | 50 | 8 | 5/8 | 90 | M16 | 75 |
| 2 1/2 | 65 | 8 | 3/4 | 100 | M20 | 85 |
| 3 | 80 | 8 | 3/4 | 110 | M20 | 90 |
| 3 1/2 | 90 | 8 | 3/4 | 110 | M20 | 95 |
| 4 | 100 | 8 | 3/4 | 115 | M20 | 95 |
| 5 | 125 | 8 | 3/4 | 120 | M20 | 110 |
| 6 | 150 | 12 | 3/4 | 120 | M20 | 110 |
| 8 | 200 | 12 | 7/8 | 140 | M24 | 120 |
| 10 | 250 | 16 | 1 | 160 | M27 | 140 |
| 12 | 300 | 16 | 1 1/8 | 170 | M30 | 145 |
| 14 | 350 | 20 | 1 1/8 | 180 | M30 | 160 |
| 16 | 400 | 20 | 1 1/4 | 190 | M33 | 165 |
| 18 | 450 | 24 | 1 1/4 | 195 | M33 | 170 |
| 20 | 500 | 24 | 1 1/4 | 205 | M33 | 185 |
| 24 | 600 | 24 | 1 1/2 | 230 | M39 | 205 |
Filiz Steel is a top manufacturer and supplier of high-quality Alloy Steel F1 Flanges products in Istanbul, Turkey. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Alloy Steel F1 Flanges are widely used in industries that require secure and strong connections between pipes, valves, and equipment. They are commonly applied in oil and gas pipelines, chemical processing plants, power plants, and water treatment systems. These flanges are ideal for high-pressure and high-temperature environments, providing leak-proof joints and reliable service. They are also used in machinery and industrial frameworks where durability and resistance to stress are important. By using Alloy Steel F1 Flanges, industries can ensure safety, reduce maintenance, and maintain efficient operations in challenging working conditions.
