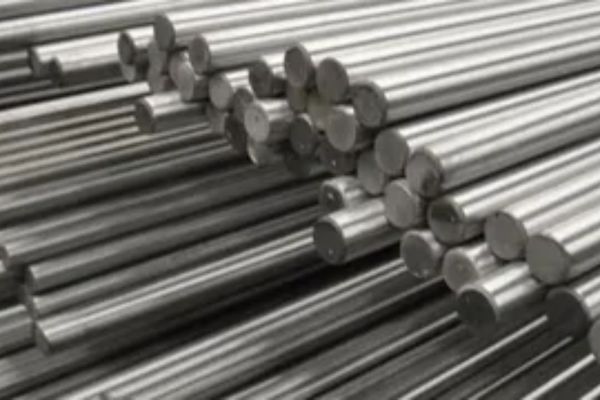

Filiz Steel, located in Istanbul, Turkey, is a reputable manufacturer and supplier of top-quality alloy steel bars, including the highly regarded **AISI 52100 Bars**. These bars are celebrated for their outstanding hardness and wear resistance. Thanks to advanced manufacturing techniques and strict quality control measures, Filiz Steel guarantees that each 52100 bar adheres to rigorous international standards. The company caters to various industries, such as automotive, aerospace, tooling, and heavy machinery, providing dependable materials for components that require exceptional fatigue strength and durability. Filiz Steel’s dedication to precision and prompt delivery has made it a preferred partner for customers around the globe.
AISI 52100 Bars are crafted from high carbon chromium alloy steel, featuring about 1.0% carbon and 1.5% chromium, which contribute to their remarkable hardness, wear resistance, and fatigue performance. After heat treatment, these bars can achieve tensile strength levels of up to 1900 MPa and can be hardened to a Rockwell hardness of 60–66 HRC. The alloy’s well-balanced composition ensures good toughness and resistance to rolling contact fatigue, making it perfect for bearing and tooling applications. Heat treatment methods like quenching and tempering further boost their mechanical properties.
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | 5 mm To 500 mm |
| Diameter | 0.1 mm to 100 mm |
| Length | 100 mm To 6000 mm Long & Above |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

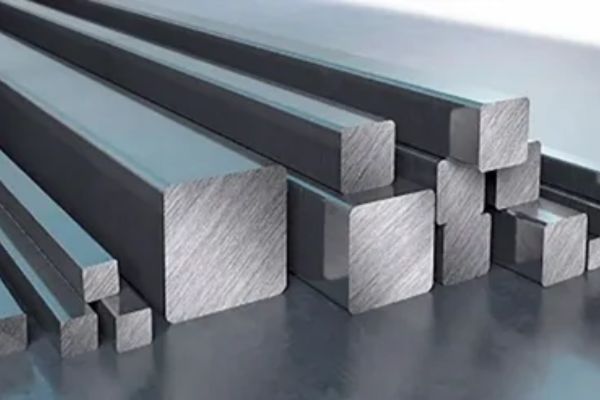

| Form | Round, Square, Hex (A/F),Flate, Rectangle, Billet, Ingot, Forging Supplier |
| Stainless Steel | ASTM A-479, A-182, 304, 304L,304H,304S, 316, 316L,316 Ti, 316H, 309, 310, 310S, 317L, 321, 347, 409, 410, 420, 430, 440, 446, 904L. etc. |
| Duplex Steel | 2205, 31803, 32750, 32760, 2101, 2304. |
| Alloy Steel | A-182 – F5, F9, F11, F12, F21, F22 & F91 |
| Special Grade | Stainless Steel 17-4 PH, Alloy 800, Alloy 600. Hastelloy C276. |
| Carbon Steel | A 105, LF 2, Duplex Steel. |
| Element | Content (%) | ||
| SAE / AISI 52100 | Min | Max | |
| Carbon | C | 0.98 | 1.1 |
| Chromium | Cr | 1.3 | 1.6 |
| Manganese | Mn | 0.25 | 0.45 |
| Silicon | Si | 0.15 | 0.35 |
| Sulfur | S | – | 0.025 |
| Phosphorous | P | – | 0.025 |
| USA | Germany | China | Japan | France | England | Italy | ISO | Czechia | Austria | Sweden | Spain |
| AIAI/ASTM/SAE/UNS | DIN,WN-r | GB | JIS | AFNOR | BS | UNI | ISO | CSN | ONORM | SS | UNE |
| E52100/ G52986 | 100Cr6 (W3) / 1.3505 | GCr15 | SUJ2 | 100C6 | 535A99 | 100Cr6(B1) | SKF3 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Sizes Chart in Milimeter | Sizes in Inch | Thickness Chart In MM | Thickness Chart In Inches |
|---|---|---|---|
| 22 | 7/8 | 17 & 18 | 2/3 – 5/7 |
| 25 | 1 | 5 to 20 | 3/16 – 4/5 |
| 30 | 1-3/16 | 5 to 20 | 3/16 – 4/5 |
| 32 | 1-1/4 | 6 to 20 | 1/4 – 4/5 |
| 35 | 1-3/8 | 5 to 20 | 3/16 – 3/16 |
| 40 | 1-4/7 | 5 to 25 | 3/16 – 1 |
| 45 | 1-7/9 | 5 to 25 | 3/16 – 1 |
| 47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
| 50 | 2 | 5 to 32 | 3/16 – 1-1/4 |
| 55 | 2-1/16 | 5 to 25 | 3/16 – 1 |
| 57 | 2-1/4 | 32 | 1-1/4 |
| 60 | 2-3/8 | 5 to 35 | 3/16 – 1-3/8 |
| 63 | 2-1/2 | 10 to 30 | 3/8 – 1-3/16 |
| 65 | 2-5/9 | 10 to 30 & 35 | 3/8 – 1-3/16, & 1-3/8 |
| 70 | 2-3/4 | 6 to 25 & 40 | 1/4 – 1, & 1-4/7 |
| 75 | 3 | 8 to 25 | 5/16 – 1 |
| 80 | 3-1/8 | 8 to 20 | 5/16 – 4/5 |
| 90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
| 100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
These AISI 52100 Bars are commonly utilized in the production of bearings, rollers, gears, shafts, and other precision components that endure high stress and wear. Their exceptional hardness and fatigue resistance make them vital in automotive transmissions, industrial machinery, and aerospace components. Additionally, they are used in the tooling industry for creating dies and molds. Thanks to their excellent dimensional stability and mechanical performance, AISI 52100 bars are the go-to choice for parts that need to last under demanding operating conditions.
