Filiz Steel, located in Istanbul, Turkey, has earned a solid reputation as a reliable manufacturer and supplier of high-strength alloy steels, particularly **AISI 4340 Bars**. These bars are celebrated for their exceptional toughness, strength, and resistance to fatigue. With a strong focus on quality and precision, Filiz Steel caters to a variety of industries, including aerospace, automotive, defense, and heavy engineering. Their state-of-the-art production capabilities and rigorous quality control processes guarantee consistent performance and precise dimensions. Whether you need them for critical structural components or high-performance parts, Filiz Steel ensures that their AISI 4340 bars meet international standards and can handle demanding applications.
**Alloy Steel AISI 4340 Bars** are low-alloy steel bars that contain nickel (1.65–2.00%), chromium (0.70–0.90%), and molybdenum (0.20–0.30%). These elements contribute to their remarkable hardenability and strength. Typically, the mechanical properties include a tensile strength ranging from 850–1000 MPa (depending on the heat treatment), a yield strength of about 700 MPa, and impressive fatigue and impact resistance. AISI 4340 can be heat-treated to achieve various strength levels while still maintaining good toughness. It also boasts good wear resistance and can be nitrided or carburized for surface hardening when necessary.
| Sizes | 2-100mm A/F |
|---|---|
| Tolerance | H9, H8, H10, K12, H13K9, K10, H11, H12, K11 |
| Round bar Sizes | Diameter: 3-~800mm |
| Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged, Rod |
| Processing | Bar cutting to 650mm |
| Surface | Bright, Hot Rolled Pickled, Sand Blasting Finished, Hairline, Cold Drawn, Polished suppliers |
| Condition | Hardened and tempered, annealed |
| Form | Precision Square, Ingot, T-Bar, Rod, Round, Welding Rod, I/H Bar, Flat Bar, Blocks, Rings, Rectangle, Hex (A/F), Hollow, Threaded, Profiles, Ground Bar, Channel Bar, Billet, Triangle, Round Rod, Half Round Bar, Forging etc. |
| Square bar Sizes | 4 to 100mm |
| Finish | Hot rolled annealed, Bright, smooth turned, Polish, Rough Turned, Cold (bright) drawn, centreless ground, Grinding, peeled, hot rolled, slit rolled edge, Centreless Ground & Black. |

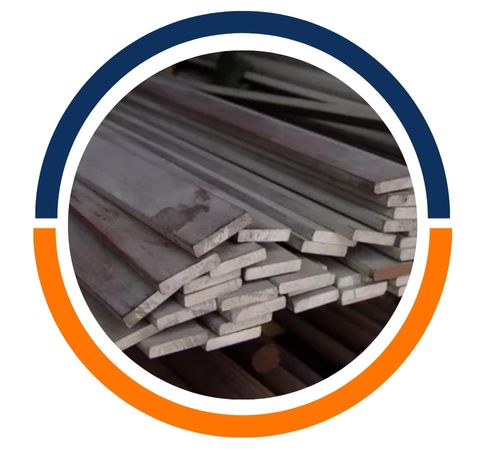

| Flat bar Sizes | Width: 10 – 500 millimeter Thick.: 2 to 100 millimeter |
| C | Mn | Si | S | P | Cr | Ni | Mo | |
| SAE – 4340 | .38- .43 | .60 – .80 | .15 – .35 | .035 MAX | .040 MAX | .70 – .90 | 1.65 -2.00 | .20 – .30 |
| Tensile strength kgf/mm² | Yield strength kgf/mm² | Elongation % | Cross section reduction rate % | Impact value | Hardness Hb |
|---|---|---|---|---|---|
| ≧100 | ≧90 | ≧16 | ≧45 | ≧7 | 293~352 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| SIZE IN INCHES | ROUND | SQUARE | OCTAGON | HEXAGON | SIZE IN INCHES | ROUND | SQUARE | OCTAGON | HEXAGON |
| 1/16 | .010 | .013 | .011 | .012 | 11/16 | 1.262 | 1.607 | 1.333 | 1.392 |
| 5/64 | .017 | .022 | .018 | .019 | 45/64 | 1.320 | 1.681 | 1.394 | 1.456 |
| 3/32 | .023 | .029 | .024 | .025 | 23/32 | 1.380 | 1.756 | 1.487 | 1.521 |
| 7/64 | .031 | .039 | .033 | .034 | 47/64 | 1.440 | 1.834 | 1.521 | 1.588 |
| 1/8 | .042 | .053 | .044 | .046 | 3/4 | 1.502 | 1.913 | 1.586 | 1.656 |
| 9/64 | .053 | .067 | .056 | .058 | 25/32 | 1.630 | 2.075 | 1.721 | 1.797 |
| 5/32 | .065 | .083 | .069 | .072 | 13/16 | 1.763 | 2.245 | 1.862 | 1.944 |
| 11/64 | .079 | .100 | .083 | .087 | 27/32 | 1.901 | 2.421 | 2.008 | 2.096 |
| 3/16 | .094 | .120 | .099 | .104 | 7/8 | 2.045 | 2.603 | 2.159 | 2.254 |
| 13/64 | .110 | .140 | .116 | .121 | 29/32 | 2.193 | 2.792 | 2.316 | 2.418 |
| 7/32 | .128 | .163 | .135 | .141 | 15/16 | 2.347 | 2.988 | 2.479 | 2.588 |
| 15/64 | .147 | .187 | .155 | .162 | 31/32 | 2.506 | 3.191 | 2.646 | 2.763 |
| 1/4 | .167 | .213 | .176 | .184 | 1 | 2.670 | 3.400 | 2.820 | 2.945 |
|---|---|---|---|---|---|---|---|---|---|
| 17/64 | .188 | .240 | .199 | .207 | 1-1/16 | 3.015 | 3.838 | 3.183 | 3.324 |
| 9/32 | .211 | .269 | .223 | .233 | 1-1/8 | 3.380 | 4.303 | 3.569 | 3.727 |
| 19/64 | .235 | .300 | .248 | .259 | 1-3/16 | 3.766 | 4.795 | 3.977 | 4.152 |
| 5/16 | .261 | .332 | .275 | .288 | 1-1/4 | 4.172 | 5.313 | 4.407 | 4.601 |
| 21/64 | .288 | .360 | .304 | .318 | 1-5/16 | 4.600 | 5.857 | 4.858 | 5.072 |
| 11/32 | .316 | .402 | .334 | .348 | 1-3/8 | 5.049 | 6.428 | 5.332 | 5.567 |
| 23/64 | .345 | .439 | .364 | .381 | 1-7/16 | 5.518 | 7.026 | 5.827 | 6.085 |
| 3/8 | .376 | .478 | .397 | .414 | 1-1/2 | 6.008 | 7.650 | 6.345 | 6.625 |
| 25/64 | .408 | .519 | .431 | .450 | 1-9/16 | 6.519 | 8.301 | 6.885 | 7.189 |
| 13/32 | .441 | .561 | .466 | .486 | 1-5/8 | 7.051 | 8.978 | 7.446 | 7.775 |
| 27/64 | .475 | .605 | .502 | .524 | 1-11/16 | 7.604 | 9.682 | 8.030 | 8.385 |
| 7/16 | .511 | .651 | .540 | .564 | 1-3/4 | 8.178 | 10.41 | 8.634 | 9.018 |
| 29/64 | .548 | .698 | .579 | .604 | 1-13/16 | 8.773 | 11.17 | 9.265 | 9.673 |
| 15/32 | .587 | .747 | .620 | .647 | 1-7/8 | 9.388 | 11.95 | 9.911 | 10.35 |
| 31/64 | .627 | .798 | .662 | .692 | 1-15/16 | 10.02 | 12.76 | 10.58 | 11.05 |
| 1/2 | .668 | .850 | .705 | .736 | 2 | 10.68 | 13.60 | 11.28 | 11.78 |
| 33/64 | .710 | .904 | .750 | .783 | 2-1/16 | 11.36 | 14.46 | 11.99 | 12.53 |
| 17/32 | .754 | .960 | .796 | .831 | 2-1/8 | 12.06 | 15.35 | 12.73 | 13.30 |
| 35/64 | .799 | 1.017 | .844 | .881 | 2-3/16 | 12.78 | 16.27 | 13.49 | 14.09 |
| 9/16 | .845 | 1.076 | .892 | .932 | 2-1/4 | 13.52 | 17.21 | 14.27 | 14.91 |
| 37/64 | .893 | 1.136 | .943 | .985 | 2-5/16 | 14.28 | 18.18 | 15.08 | 15.75 |
| 19/32 | .941 | 1.199 | .994 | 1.038 | 2-3/8 | 15.06 | 19.18 | 15.91 | 16.61 |
| 39/64 | .992 | 1.263 | 1.048 | 1.094 | 2-7/16 | 15.87 | 20.20 | 16.75 | 17.49 |
| 5/8 | 1.043 | 1.328 | 1.102 | 1.150 | 2-1/2 | 16.69 | 21.25 | 17.62 | 18.40 |
| 41/64 | 1.096 | 1.395 | 1.207 | 1.209 | 2-9/16 | 17.53 | 22.33 | 18.52 | 19.34 |
| 21/32 | 1.150 | 1.464 | 1.214 | 1.268 | 2-5/8 | 18.40 | 23.43 | 19.43 | 20.29 |
| 43/64 | 1.205 | 1.535 | 1.272 | 1.329 | 2-11/16 | 19.29 | 24.56 | 20.37 | 21.27 |
**AISI 4340 Bars** find their place in applications that demand high tensile strength and toughness, especially under heavy loads or intense stress. They are commonly used in aircraft landing gear, crankshafts, axles, drive shafts, gear shafts, heavy-duty fasteners, and connecting rods. Additionally, they are widely utilized in the oil and gas industry, off-road equipment, and industrial machinery. Thanks to their outstanding fatigue resistance and versatility in heat treatment, AISI 4340 bars are perfect for components that face extreme conditions where reliability and performance are essential.
